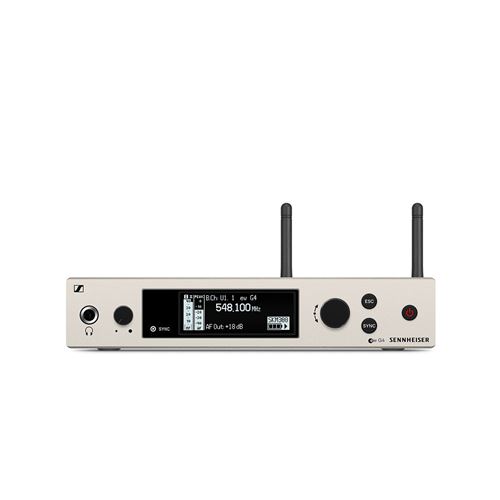

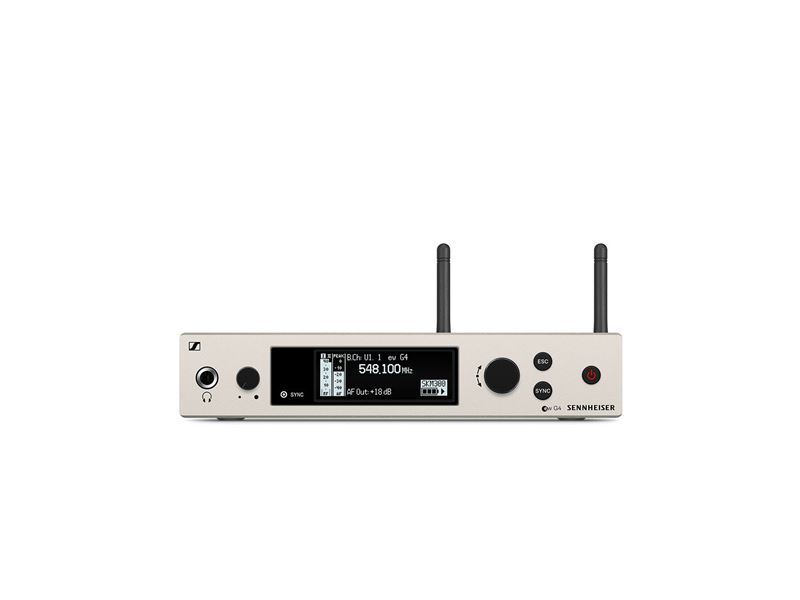

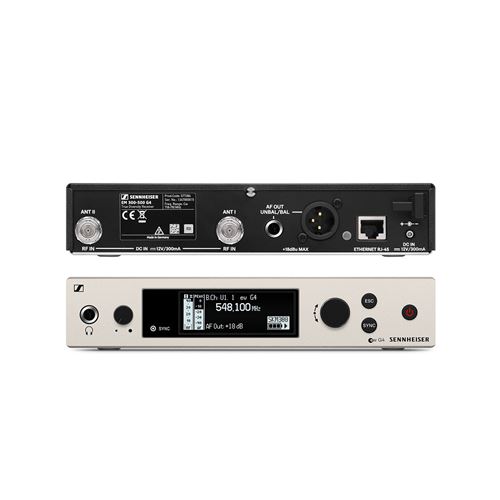

EM 300-500 G4

• Frequency range

  AS: 520 - 558 MHz

  Aw+: 470 - 558 MHz

  Bw: 626 - 698 MHz

  Cw: 718 - 790 MHz

  Dw: 790 - 865 MHz

  GBw: 606 - 678 MHz

  Gw: 558 - 626 MHz

  Gw1: 558 - 608 MHz

  JB: 806 - 810 MHz

  K+: 925 - 937,5 MHz



• Dimensions

  Approx. 202 x 212 x 43 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  Approx. 980 g



• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu



• Signal-to-noise ratio

  ≥ 115 dBA



• Switching bandwidth

  up to 88 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Modulation

  Wideband FM



• Power supply

  12 V DC



• Antenna connector

  2 BNC sockets



• Current consumption

  350 mA



• Adjacent channel rejection

  Typically ≥ 75 dB



• Intermodulation attenuation

  Typically ≥ 70 dB



• Receiving frequency

  Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels



• RF sensitivity

  < 2.5 μV for 52 dBA eff S/N



• Squelch

  5 to 25 dBμV in steps of 2 dB



• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)



• Temperature Range

  -10 °C to +55 °C



• Receiver Principle

  True diversity



• Blocking

  ≥ 75 dB

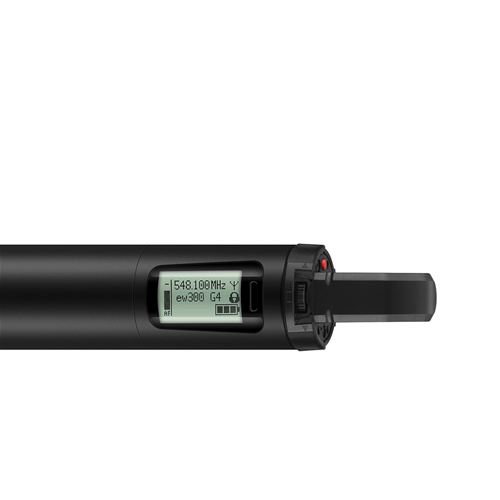

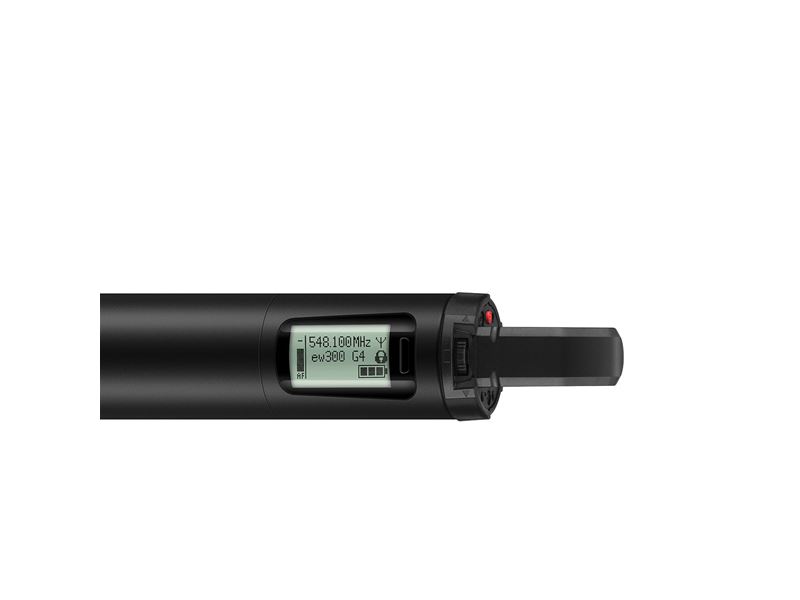

SKM 300 G4

• Dimensions

  Approx. Ø 50 x 265 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  (incl. batteries) approx. 450 g



• Signal-to-noise ratio

  ≥ 115 dBA



• RF output power

  switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW



• Switching bandwidth

  up to 88 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Operating time

  Typically 8 h



• Modulation

  Wideband FM



• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack



• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA



• Powering

  3 V battery / 2.4 V rechargeable battery



• Transmission frequency

  Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels



• AF frequency response

  80 – 18,000 Hz



• Temperature Range

  -10 °C to +55 °C



• Frequency stability

  ≤ ±15 ppm

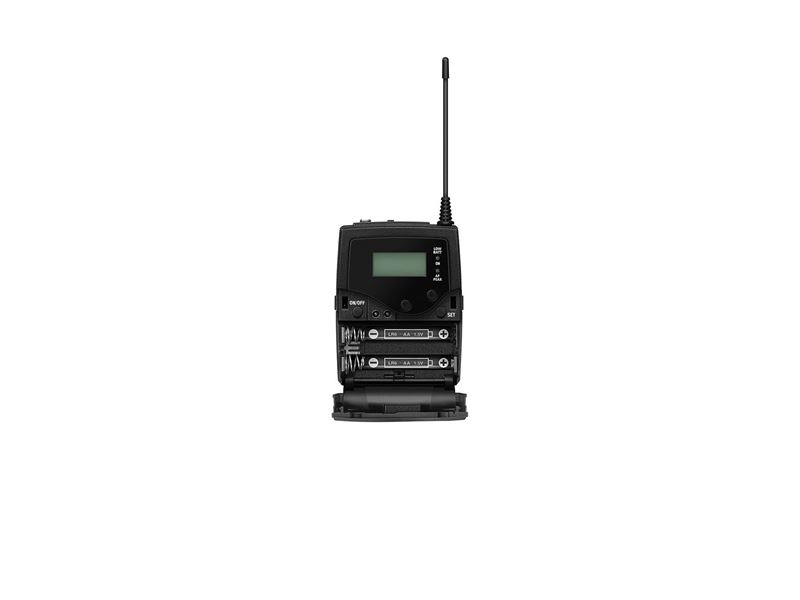

SK 300 G4

• Dimensions

  Approx. 82 x 64 x 24 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  (incl. batteries) approx. 160 g



• Signal-to-noise ratio

  ≥ 115 dBA



• RF output power

  switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW



• Switching bandwidth

  up to 88 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Operating time

  Typically 8 h



• Modulation

  Wideband FM



• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack



• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA



• Input impedance

  40 kΩ, unbalanced / 1 MΩ



• Max. Input voltage

  3 Veff



• Powering

  3 V battery / 2.4 V rechargeable battery



• Transmission frequency

  Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels



• AF frequency response

  Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz



• Temperature Range

  -10 °C to +55 °C



• Frequency stability

  ≤ ±15 ppm
