Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.

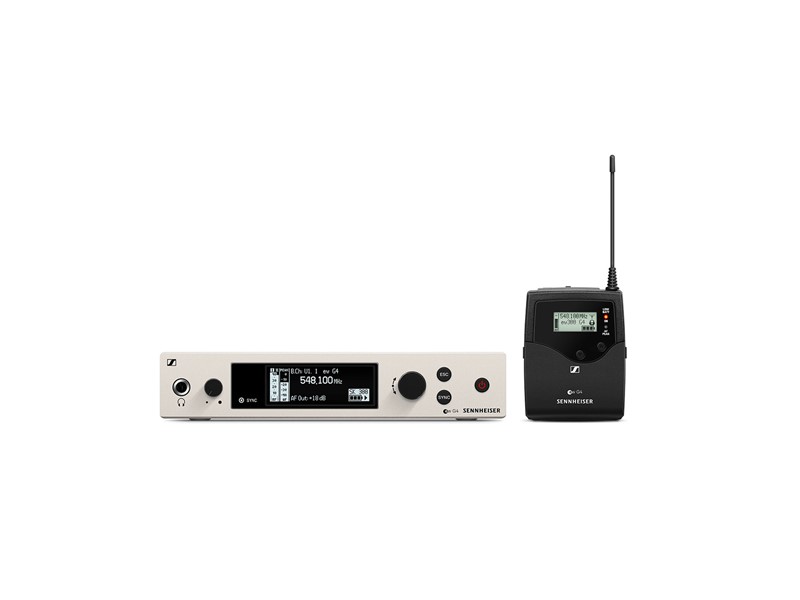

The best choice if you need a bodypack transmitter and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack transmitter. Just add your favorite clip-on or headset microphone.
-
Easy to use, fast setup time
-
Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
-
Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
-
Up to 88 MHz bandwidth, up to 32 channels
-
Increased RF output power (10/30/50 mW)
-
Transmission Range: up to 100 meters / 330 feet
-
Compatible with wireless speaker system LSP 500 PRO
-
RC (remote control) switch available for the bodypack transmitter
What's in the Box
- EM 300-500 G4 true diversity receiver
- SK 300 G4
- GA 3 rackmount set
- power supply
- 2 AA batteries
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet

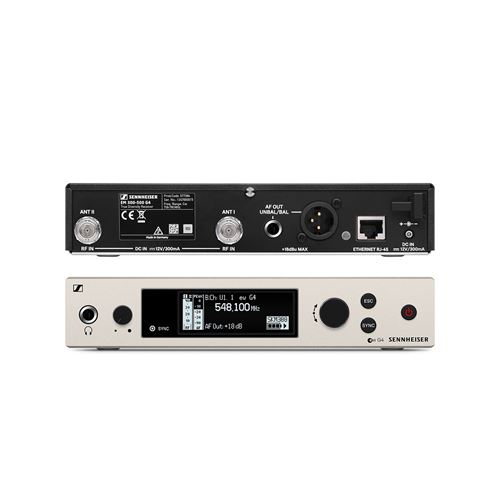

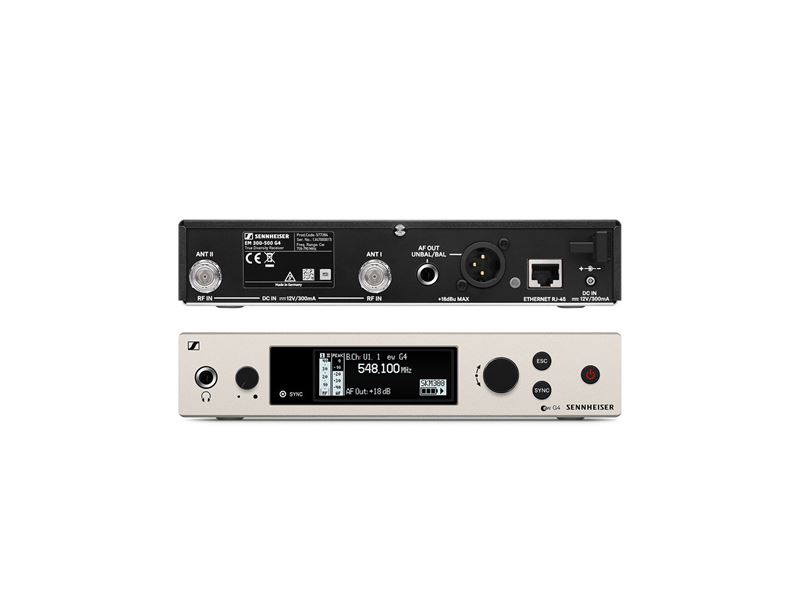

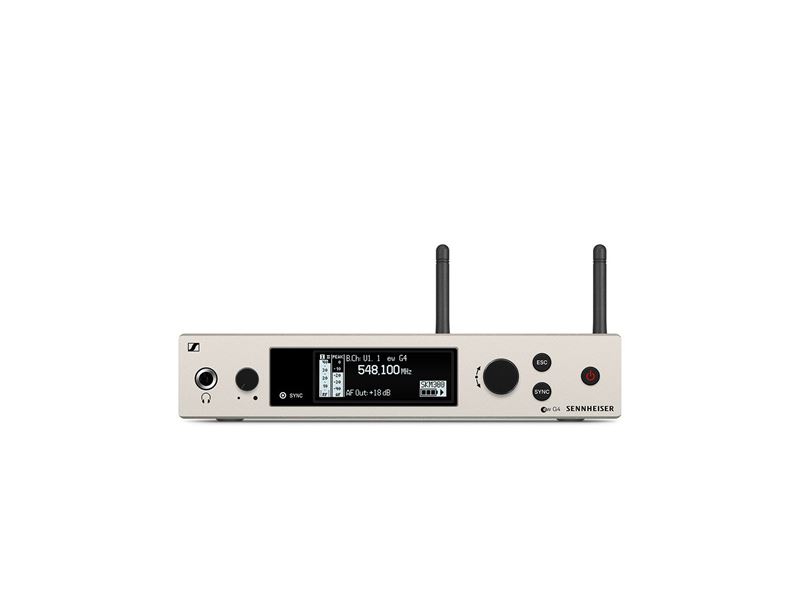

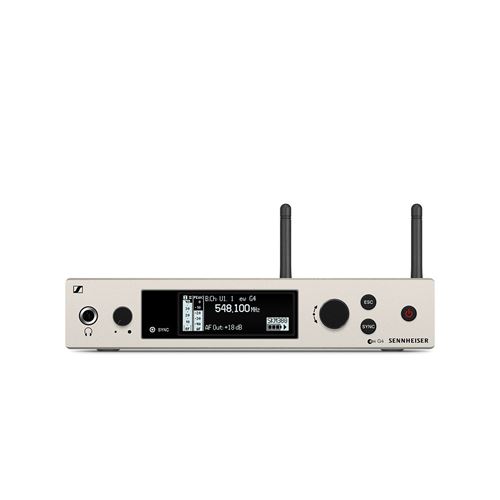

EM 300-500 G4
- Frequency range
- AS: 520 - 558 MHzAw+: 470 - 558 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzGw1: 558 - 608 MHzJB: 806 - 810 MHzK+: 925 - 937,5 MHz
- Dimensions
- Approx. 202 x 212 x 43 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- Approx. 980 g
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
- Signal-to-noise ratio
- ≥ 115 dBA
- Switching bandwidth
- up to 88 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Modulation
- Wideband FM
- Power supply
- 12 V DC
- Antenna connector
- 2 BNC sockets
- Current consumption
- 350 mA
- Adjacent channel rejection
- Typically ≥ 75 dB
- Intermodulation attenuation
- Typically ≥ 70 dB
- Receiving frequency
- Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity
- < 2.5 μV for 52 dBA eff S/N
- Squelch
- 5 to 25 dBμV in steps of 2 dB
- Equalizer
- Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range
- -10 °C to +55 °C
- Receiver Principle
- True diversity
- Blocking
- ≥ 75 dB
- Frequency range
- 748.3 MHz - 757.7 MHz
- Frequency response
- 748.3 MHz - 757.7 MHz

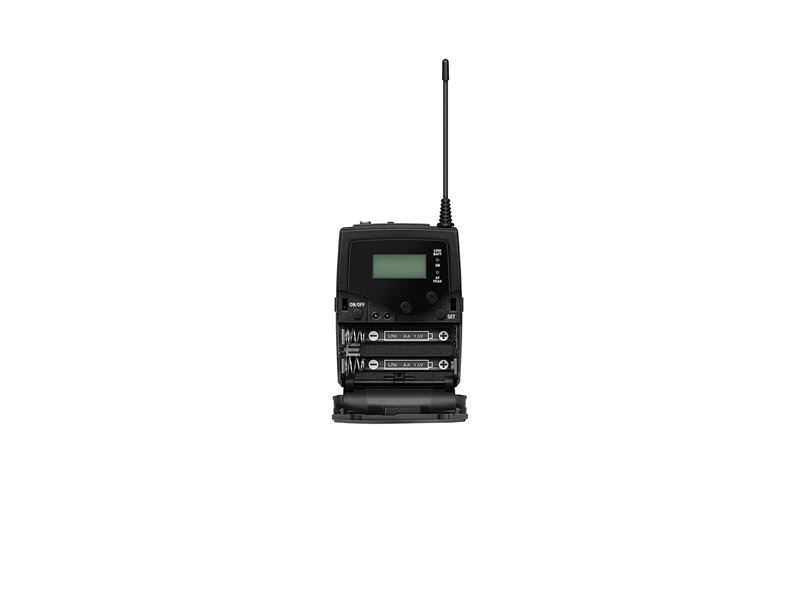

SK 300 G4
- Dimensions
- Approx. 82 x 64 x 24 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl. batteries) approx. 160 g
- Signal-to-noise ratio
- ≥ 115 dBA
- RF output power
- switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth
- up to 88 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- Typically 8 h
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
- Input impedance
- 40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage
- 3 Veff
- Powering
- 3 V battery / 2.4 V rechargeable battery
- Transmission frequency
- Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response
- Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
- Temperature Range
- -10 °C to +55 °C
- Frequency stability
- ≤ ±15 ppm
