The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together. The KK 205 is a premium quality capsule head for professional Sennheiser handheld transmitters, now available with the evolution wireless G4 500 Series.
-
True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Up to 32 compatible channels
-
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
-
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
-
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
-
Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems

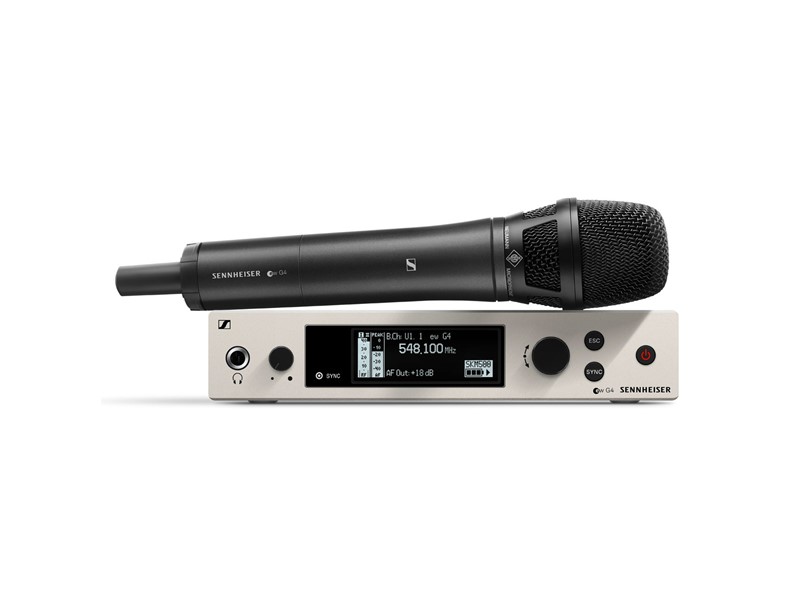

What's in the Box
- EM 300-500 G4 rackmount receiver
- SKM 500 G4 handheld transmitter
- KK 205 super-cardioid condenser capsule
- NT 2-3 power supply
- GA3 rack kit set
- Microphone clamp
EM 300-500 G4
- Frequency range
- AS: 520 - 558 MHzAw+: 470 - 558 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzGw1: 558 - 608 MHzJB: 806 - 810 MHzK+: 925 - 937,5 MHzAW+: 470 - 558 MHz
- Dimensions
- Approx. 202 x 212 x 43 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- Approx. 980 g
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
- Signal-to-noise ratio
- ≥ 115 dBA
- Switching bandwidth
- up to 88 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Modulation
- Wideband FM
- Power supply
- 12 V DC
- Current consumption
- 350 mA
- Adjacent channel rejection
- Typically ≥ 75 dB
- Intermodulation attenuation
- Typically ≥ 70 dB
- Receiving frequency
- Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity
- < 2.5 μV for 52 dBA eff S/N
- Squelch
- 5 to 25 dBμV in steps of 2 dB
- Equalizer
- Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
- Antenna Connector
- 2 BNC sockets
- Temperature Range
- -10 °C to +55 °C
- Receiver Principle
- True diversity
- Blocking
- ≥ 75 dB

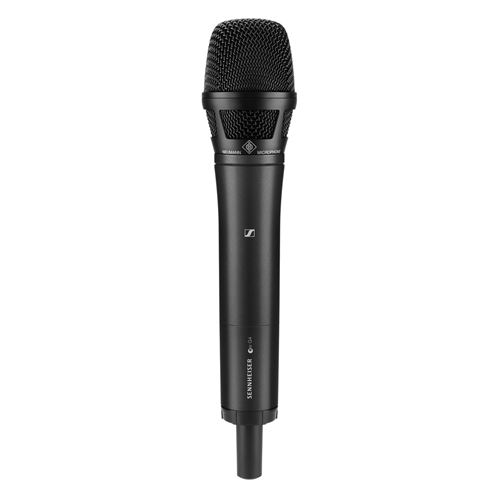

SKM 500 G4
- Dimensions
- Approx. Ø 50 x 265 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl. batteries) approx. 450 g
- Signal-to-noise ratio
- ≥ 115 dBA
- RF output power
- switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth
- up to 88 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- Typically 8 h
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
- Powering
- 3 V battery / 2.4 V rechargeable battery
- Transmission frequency
- Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response
- 80 – 18,000 Hz
- Temperature Range
- -10 °C to +55 °C
- Frequency stability
- ≤ ±15 ppm
KK 205
- Max. sound pressure level
- 150 dB
- Pick-up pattern
- supercardioid
- Signal-to-noise ratio
- 70 dB
- Sensitivity
- 2.8 mV/Pa
