SENNHEISER | SK 500 G4

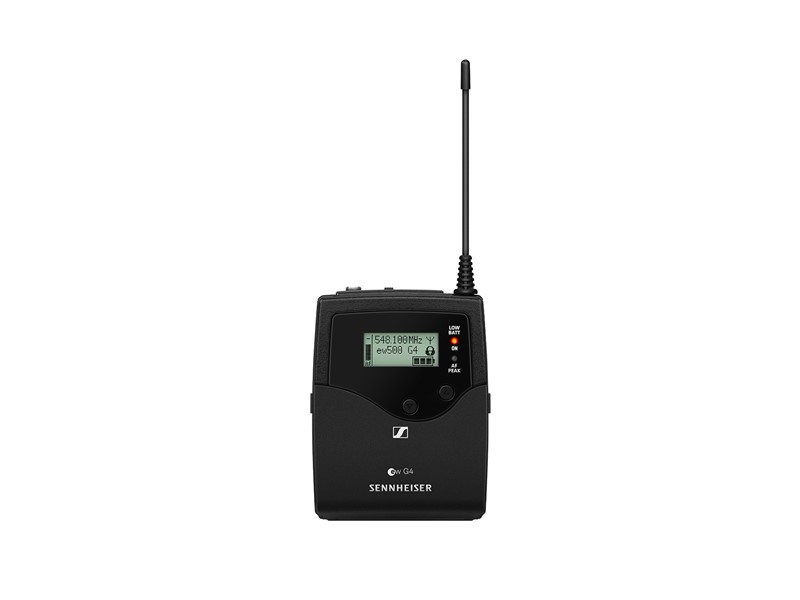

SENNHEISER G4 500 Series Bodypack Transmitter

SK 500 G4

SENNHEISER

Whatsapp for enquiry Email for enquiry






Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.

  • Powerful bodypack transmitter with increased bandwidth and transmission power

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

What's in the Box
  • SK 500 G4 bodypack transmitter
  • 2 AA batteries
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Frequency range
    AS: 520 - 558 MHz
    Aw+: 470 - 558 MHz
    Bw: 626 - 698 MHz
    Cw: 718 - 790 MHz
    Dw: 790 - 865 MHz
    GBw: 606 - 678 MHz
    Gw: 558 - 626 MHz
    Gw1: 558 - 608 MHz
    JB: 806 - 810 MHz
    K+: 925 - 937.5 MHz
    •
  • Dimensions
    Approx. 82 x 64 x 24 mm
    •
  • Compander
    Sennheiser HDX
    •
  • THD, total harmonic distortion
    ≤ 0.9 %
    •
  • Weight
    (incl. batteries) approx. 160 g
    •
  • Signal-to-noise ratio
    ≥ 115 dBA
    •
  • RF output power
    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    •
  • Switching bandwidth
    up to 88 MHz
    •
  • Peak deviation
    ±48 kHz
    •
  • Nominal deviation
    ±24 kHz
    •
  • Operating time
    Typically 8 h
    •
  • Modulation
    Wideband FM
    •
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
    •
  • Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 μA
    •
  • Input impedance
    40 kΩ, unbalanced / 1 MΩ
    •
  • Max. Input voltage
    3 Veff
    •
  • Powering
    3 V battery / 2.4 V rechargeable battery
    •
  • Transmission frequency
    Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    •
  • AF frequency response
    Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
    •
  • Temperature Range
    -10 °C to +55 °C
    •
  • Frequency stability
    ≤ ±15 ppm
    •
