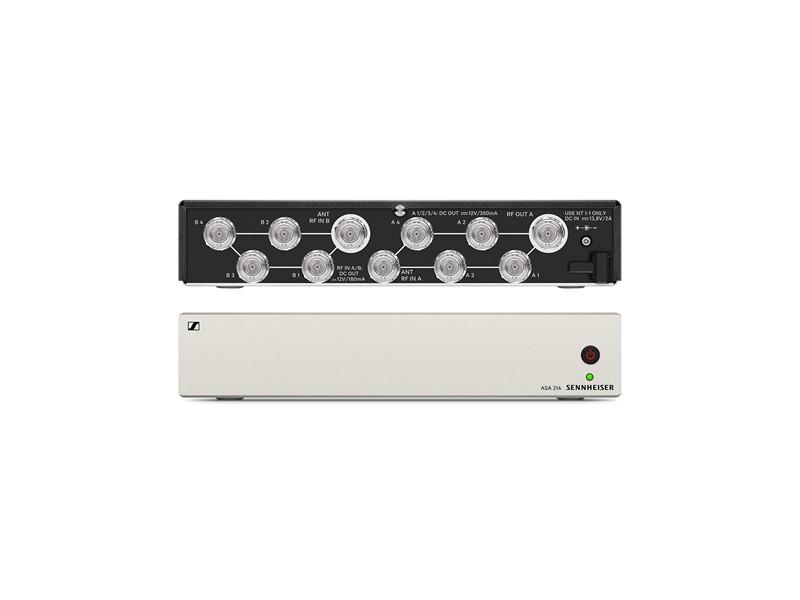

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with two antennas. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.
-
Compatible with G4 and G3 systems
-
Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed
-
Up to 4 true diversity receivers can be used with two external antennas
-
Full metal housing
What's in the Box
- ASA 214 splitter
- 8x BNC cable 50cm
- NT 1-1 power supply
- Impedance
- 50 Ω
- Dimensions
- approx. 212 x 168 x 43 mm
- Weight
- approx. 1090 g
- Power consumption
- max. 2.0 A with connected receivers and boosters
- Storage temperature
- -20°C - +70°C
- Operating temperature
- -10°C - +55°C
- Power supply
- 13,8 V DC (with NT 1-1 mains unit)
- Antenna connector
- BNC
- Frequency range
- 470-870 MHz (UHF), 1785-1800 MHz (1G8)
- Operating relative humidity
- 5 - 95 %
