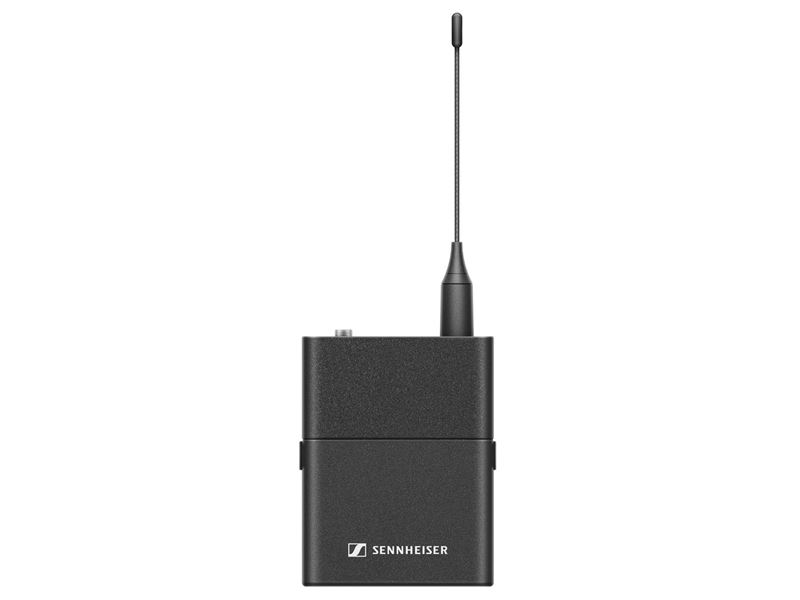

SENNHEISER Evolution Wireless Digital Series Bodypack Receiver

EW-D SK

SENNHEISER

Whatsapp for enquiry Email for enquiry






Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

  • Auto scan creates reliable connections with minimal time and effort

  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

  • 2,240 selectable frequencies allow for fine tuning

  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist App. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.


What's in the Box
  • EW-D SK bodypack transmitter
  • Pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Frequency range
    925.2 - 937.3 MHz
    662 - 693.8 MHz
    606.2 - 662 MHz
    552 - 607.8 MHz
    520 - 576 MHz
    470.2 - 526 MHz
    1785.2 - 1799.8 MHz
    823.2 - 831.8 MHz & 863.2 - 864.8 MHz
    630 - 662 MHz
  •
  • Dimensions
    63 x 80 x 20 mm (without antenna)
  •
  • THD, total harmonic distortion
    ≤ -60 dB for 1 kHz @ -3 dBfs input level
  •
  • Weight
    approx. 120 g
  •
  • Operating temperature
    -10 °C - +55 °C (14 °F - 131 °F)
  •
  • Operating relative humidity
    5 - 95 % (non-condensing)
  •
  • Audio frequency response
    20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  •
  • Input voltage range
    2.0 - 4.35 V
  •
  • Current consumption
    < 300 mA
  •
  • Power supply
    2 AA batteries 1.5 V (alkaline manganese)
    or BA 70 rechargeable battery pack
  •
  • Transmission power
    Audio link: 10 mW
    ERP (Range Y1-3): 12 mW ERP
    BLE: max. 10 mW EIRP
