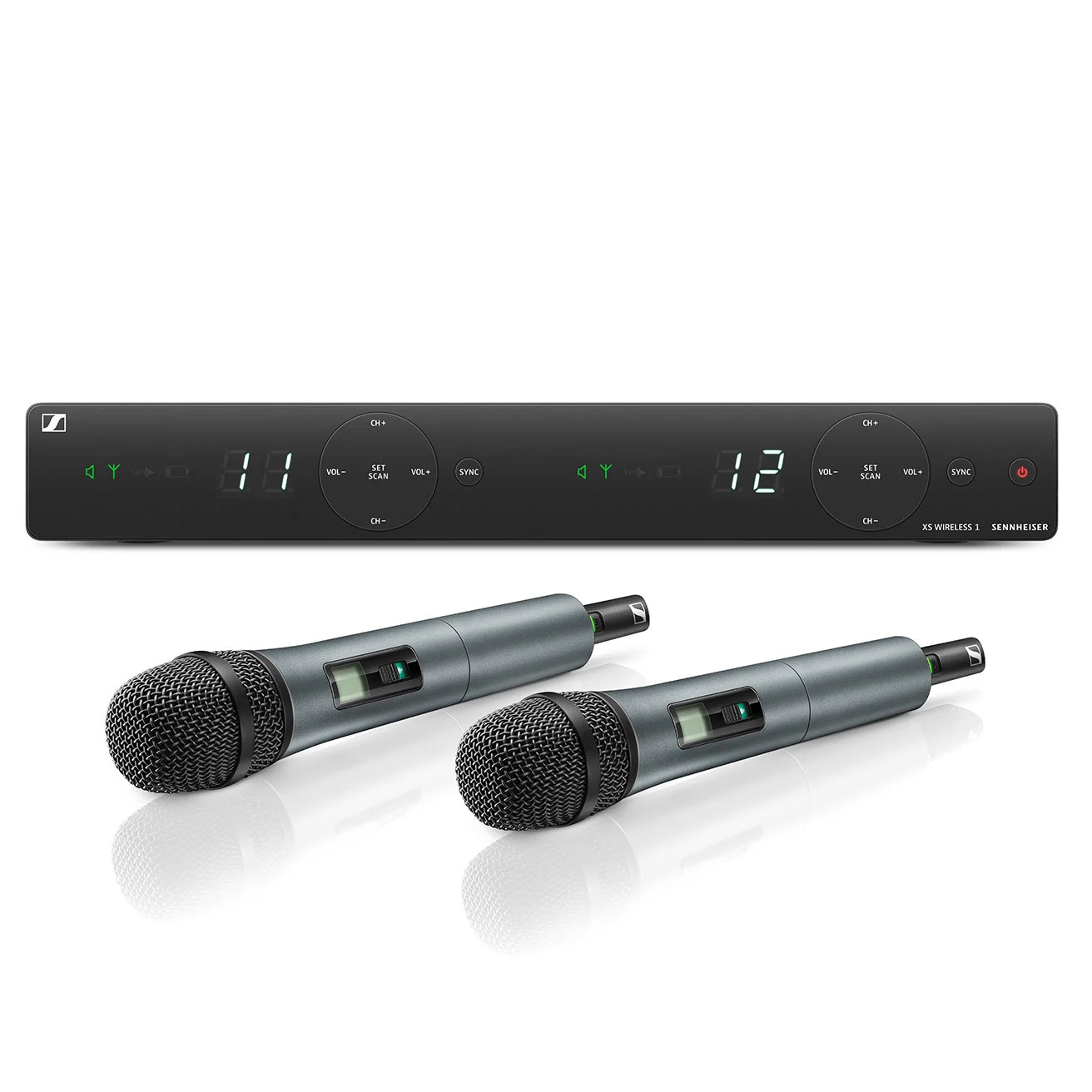

System

• Frequency range

  A: 548-572 MHz, GB: 606-630 MHz

  B: 614-638 MHz

  C: 766-790 MHz

  D: 794-806 MHz

  E: 821-832 MHz, 863-865 MHz

  K: 925-937.5 MHz



• Dimensions

  Ø 48 x L 180 mm



• Connector

  XLR-3



• Frequency response

  55 - 16,000 Hz



• THD, total harmonic distortion

  ≤ 0.9%



• Transducer principle

  dynamic



• Weight

  330 g (0.73 lbs)



• Pick-up pattern

  cardioid



• Nominal impedance

  300 Ω (at 1 kHz)



• Min. terminating impedance

  1 kΩ



• Storage temperature

  –20°C to +70°C



• Operating temperature

  0°C to +40°C



• Signal-to-noise ratio

  ≥ 103 dBA



• Switching bandwidth

  Up to 24 MHz



• Modulation

  Wideband FM



• Frequency

  80 factory presets (8 banks of 10 channels each)



• Sensitivity

  1.8 mV/Pa (free field, no load at 1 kHz)



• Synchronization

  Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)



• Temperature Range

  0 °C ... +40 °C (+32 °F ... +104 °F)

• Frequency range



• Frequency response

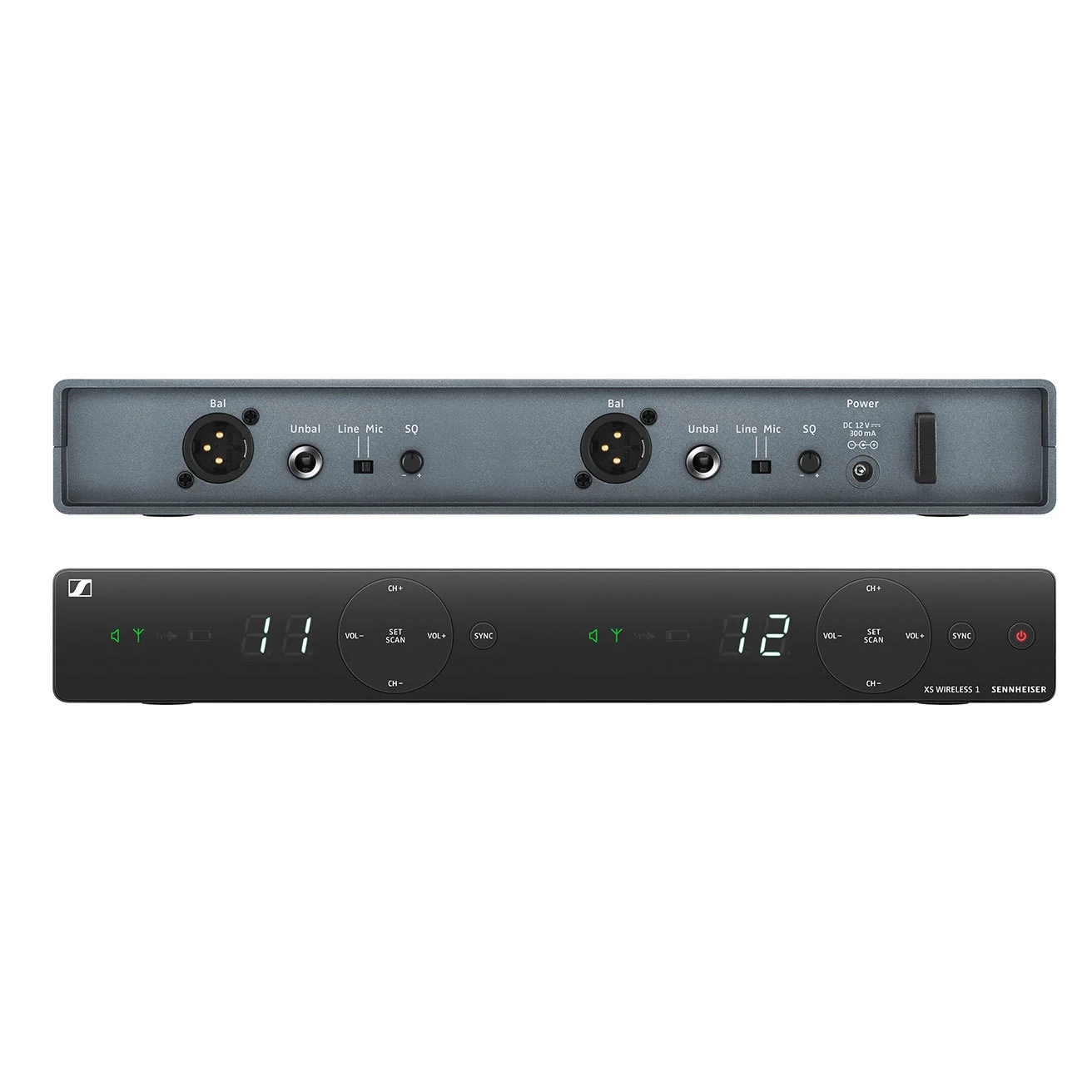

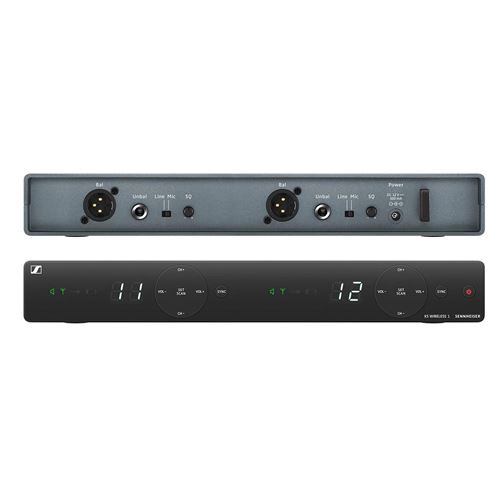

EM-XSW 1 DUAL

• Dimensions

  approx. 320 x 126.5 x 42 mm



• Weight

  approx. 620 g



• Power supply

  12 V DC nom. / 300 mA



• Output voltage

  (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu



• Housing

  Rugged ABS housing



• Sensitivity

  < 3 μV at 52 dB(A) rms S/N (at peak deviation)



• Squelch

  Adjustable from 3 dBμV to 28 dBμV



• AF frequency response

  50 to 16,000 Hz (–3 dB)



• Audio adjustment range

  45 dB, adjustable in 5 dB steps



• Line / Mic level

  20 dB, switchable



• Receiver Principle

  Double superheterodyne



• Diversity principle

  Antenna switching diversity via internal antennas

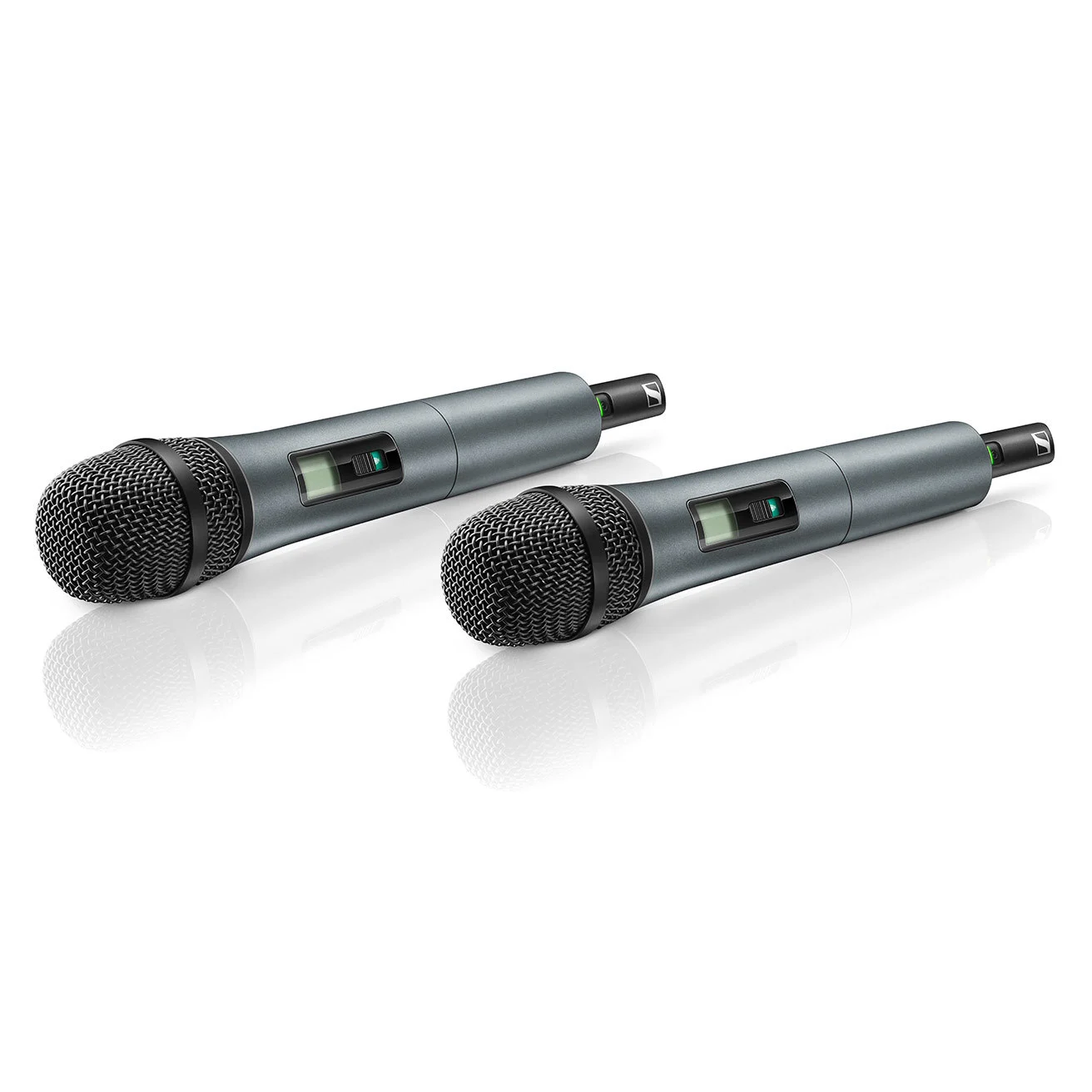

SKM 825-XSW

• Dimensions

  Approx. 260 x 50 mm



• Microphone

  Dynamic



• Weight

  Approx. 245 g



• Pick-up pattern

  Cardioid



• RF output power

  10 mW



• Operating time

  Approx. 10 hrs



• Power supply

  2 AA size batteries, 1.5 V



• Housing

  Rugged ABS housing



• Sensitivity

  0 to -30 dB, adjustable in 10 dB steps



• Input sensitivity

  1.5 mV / Pa



• AF frequency response

  80-14,000 Hz
