SENNHEISER | XSW 1-CI1





SENNHEISER XS Wireless 1 Series Instrument Set

XSW 1-CI1

SENNHEISER

Whatsapp for enquiry Email for enquiry

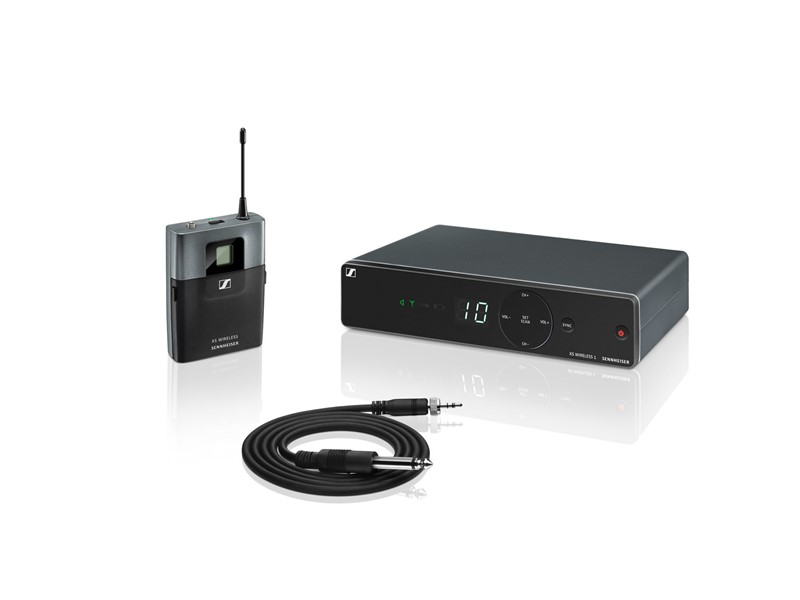

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

  • Compact bodypack transmitter, rugged instrument cable

  • Antenna-switching diversity reception

  • Integrated antennas

  • Automatic frequency management and synchronization via remote channel for easy setup

  • Selectable UHF frequencies within a large bandwidth

  • Up to 10 compatible channels

What's in the Box
  • 1 receiver EM-XSW 1

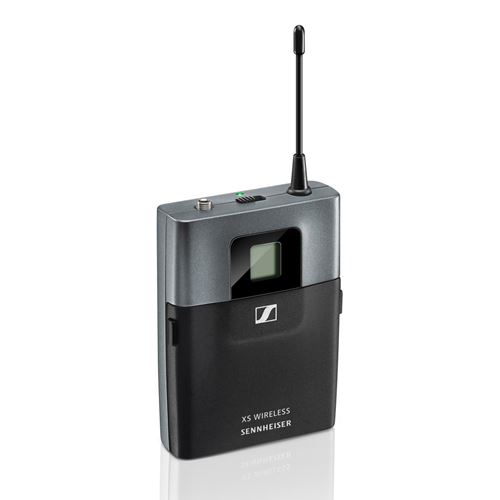

  • 1 bodypack transmitter SK-XSW

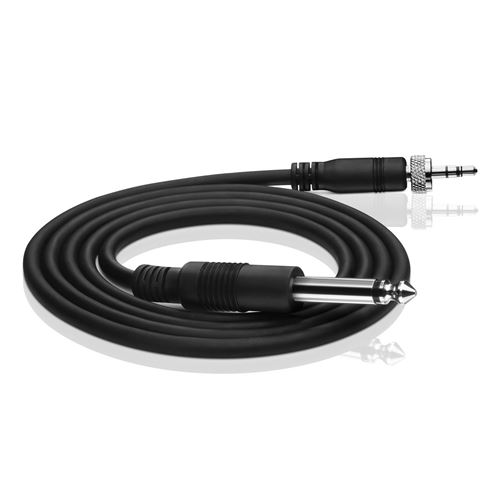

  • 1 instrument cable Cl1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries


  • Dimensions
    Receiver: approx. 200 x 42 x 127 mm
    Bodypack transmitter: approx. 71 x 96 x 28 mm
    •
  • THD, total harmonic distortion
    ≤ 0.9%
    •
  • Weight
    approx. 340g (receiver), approx. 95g (transmitter)
    •
  • Signal-to-noise ratio
    ≥ 103 dBA
    •
  • RF output power
    10 mW
    •
  • Switching bandwidth
    up to 24 MHz
    •
  • Operating time
    approx. 10 hrs
    •
  • Modulation
    Wideband FM
    •
  • Power supply
    Receiver: 12 V DC nom. / 300 mA
    Transmitter: 2 AA size batteries, 1.5 V
    •
  • Output voltage

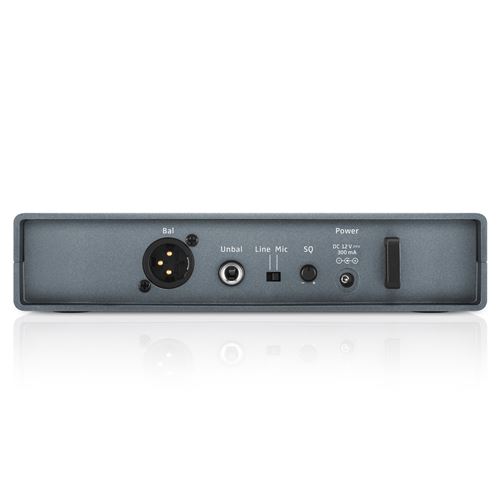

    1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    •
  • Housing
    Rugged ABS housing
    •
  • Frequency
    8 frequency banks, each with up to 10 factory-preset channels
    •
  • Frequency range
    A: 548-572 MHz, GB: 606-630 MHz
    B: 614-638 MHz
    C: 766-790 MHz
    D: 794-806 MHz
    E: 821-832 MHz, 863-865 MHz
    K: 925-937.5 MHz
    •
  • Sensitivity
    < 3 μV at 52 dB(A)rms S/N
    •
  • SPL for peak deviation
    130 dB
    •
  • Squelch
    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
    •
  • Synchronization
    2.4 GHz, Low Power OQPSK (only active during synchronization)
    •
  • Input sensitivity
    1.5 mV / Pa
    •
  • AF frequency response
    Receiver: 50 to 16,000 Hz (–3 dB)
    •
  • Adjustment Range Transmitter
    0 to -30 dB, adjustable in 10 dB steps
    •
  • Audio adjustment range
    45 dB, adjustable in 5-dB steps
    •
  • Line / Mic level
    20 dB, switchable
    •
  • Temperature Range
    operation: 0°C to +40°C, storage: –20°C to +70°C
    •
  • Receiver Principle
    double superheterodyne
    •
  • Diversity principle
    Antenna switching diversity via internal antennas
    •
