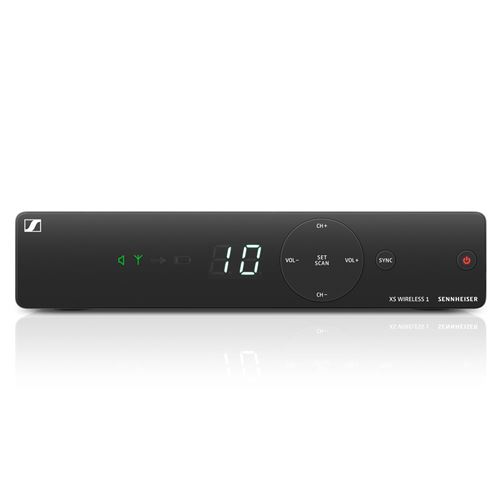

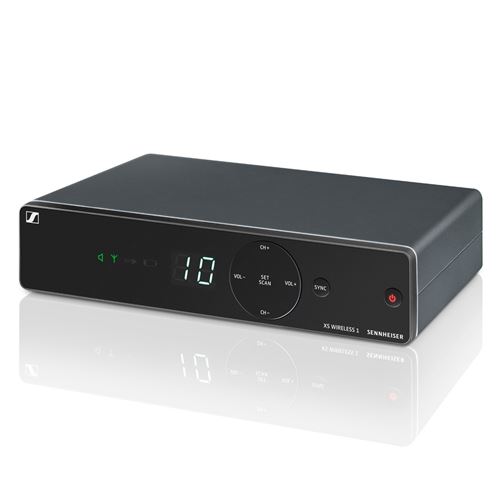

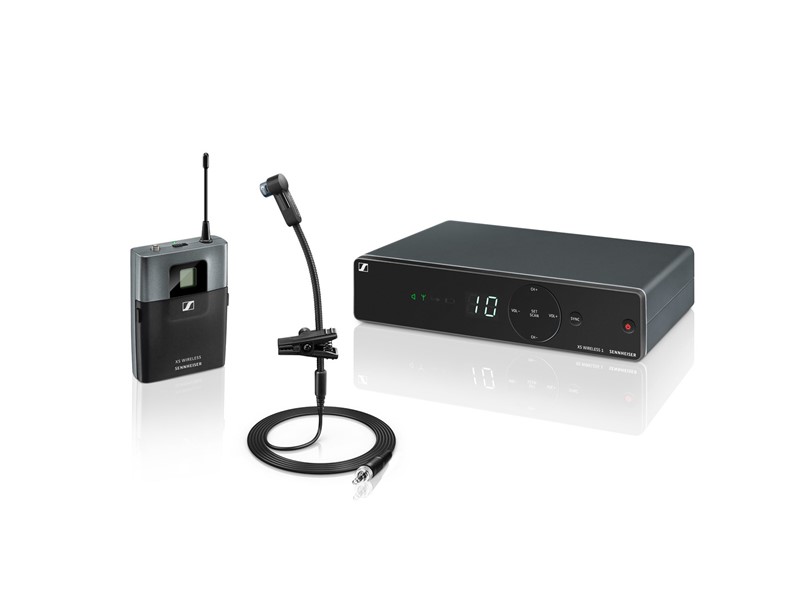

Receivers

• Dimensions

  approx. 200 x 42 x 127 mm



• Weight

  approx. 340g



• Power supply

  Receiver: 12 V DC nom. / 300 mA



• AF frequency response

  Receiver: 50 to 16,000 Hz (–3 dB)

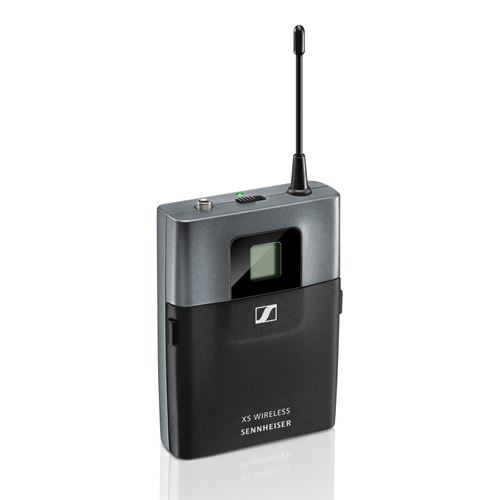

Transmitter

• Dimensions

  approx. 71 x 96 x 28 mm



• Weight

  approx. 95g



• Power supply

  Transmitter: 2 AA size batteries, 1.5 V



• Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps

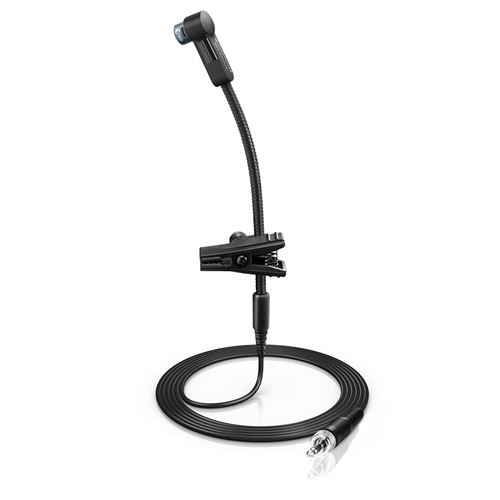

• Microphone

  condenser



• THD, total harmonic distortion

  ≤ 0.9%



• Pick-up pattern

  cardioid



• Signal-to-noise ratio

  ≥ 103 dBA



• RF output power

  10 mW



• Switching bandwidth

  up to 24 MHz



• Operating time

  approx. 10 hrs



• Modulation

  wideband FM



• Output voltage

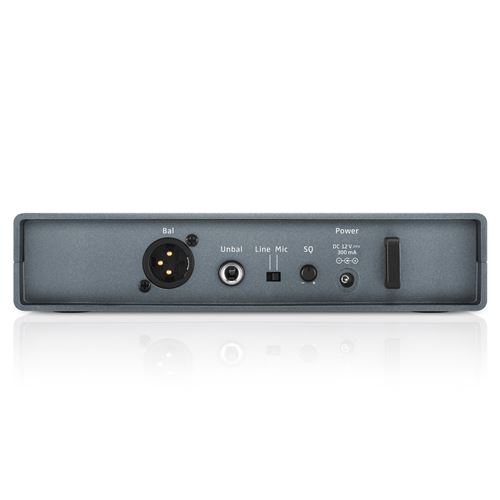

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu



• Housing

  rugged ABS housing



• Frequency

  8 frequency banks, each with up to 10 factory-preset channels



• Frequency range

  A: 548-572 MHz, GB: 606-630 MHz

  B: 614-638 MHz

  C: 766-790 MHz

  D: 794-806 MHz

  E: 821-832 MHz, 863-865 MHz

  K: 925-937.5 MHz



• Sensitivity

  < 3 μV at 52 dB(A)rms S/N



• SPL for peak deviation

  147 dB



• Squelch

  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)



• Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)



• Input sensitivity

  1.5 mV / Pa



• Audio adjustment range

  45 dB, adjustable in 5-dB steps



• Line / Mic level

  20 dB, switchable



• Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C



• Receiver Principle

  double superheterodyne



• Diversity principle

  antenna switching diversity via internal antennas
