Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

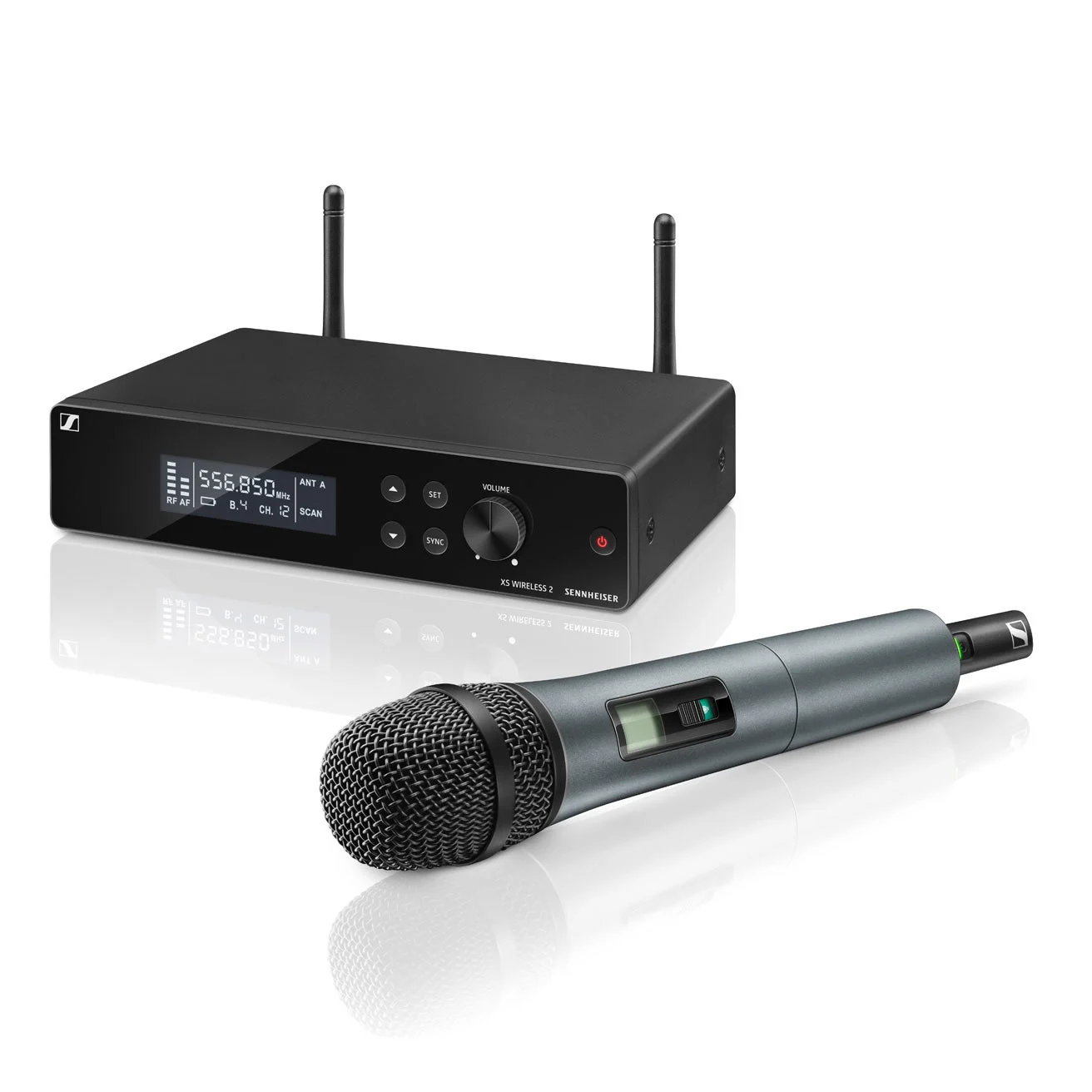

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.
-
Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
-
True diversity receiver with metal housing
-
External antennas
-
Automatic frequency management and synchronization via
-
remote channel for easy setup
-
Fully tunable over a wide range of UHF frequencies
-
Rackmount kit included
-
Up to 12 compatible channels
What's in the Box
- 1 receiver EM-XSW 2
- 1 handheld transmitter SKM 865-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual

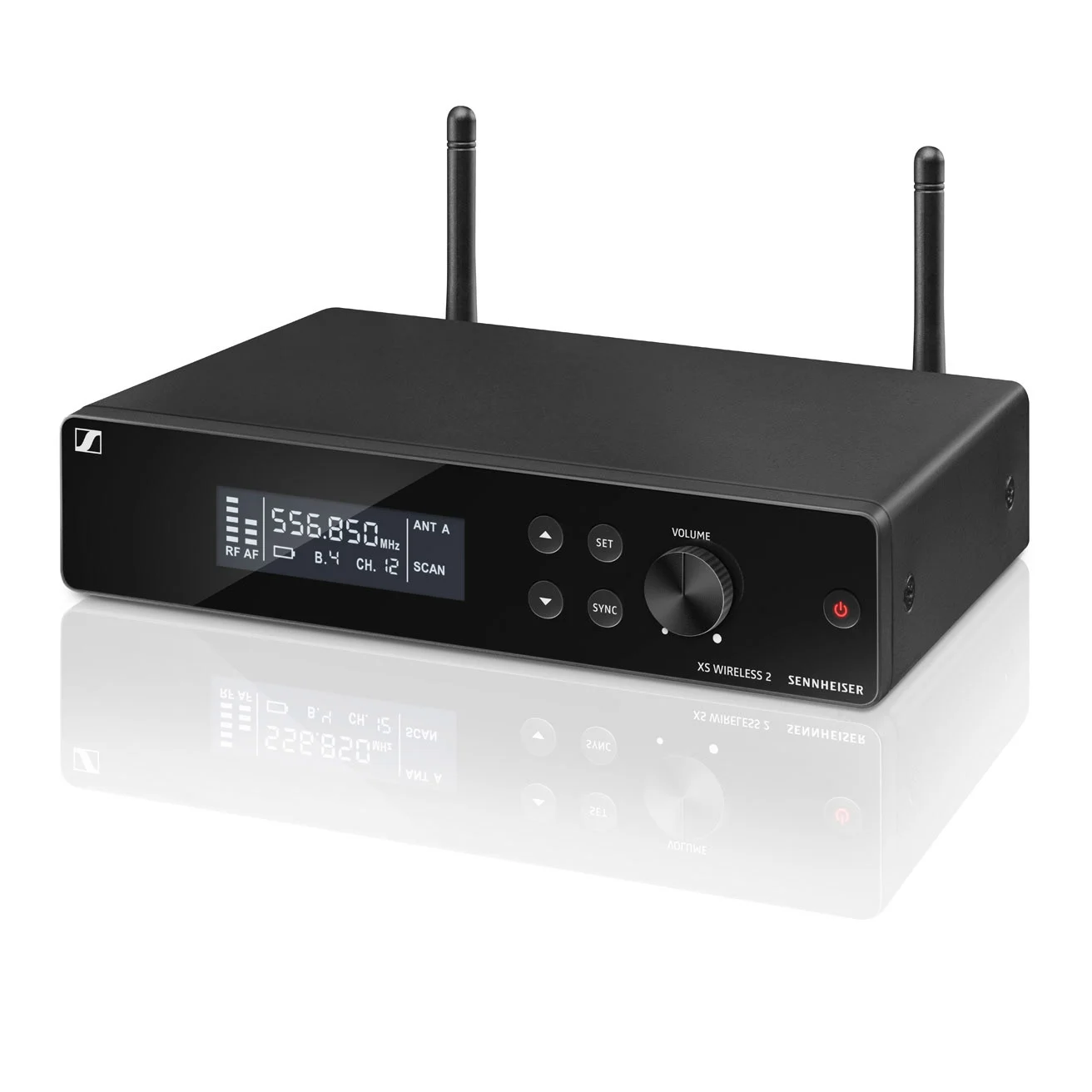

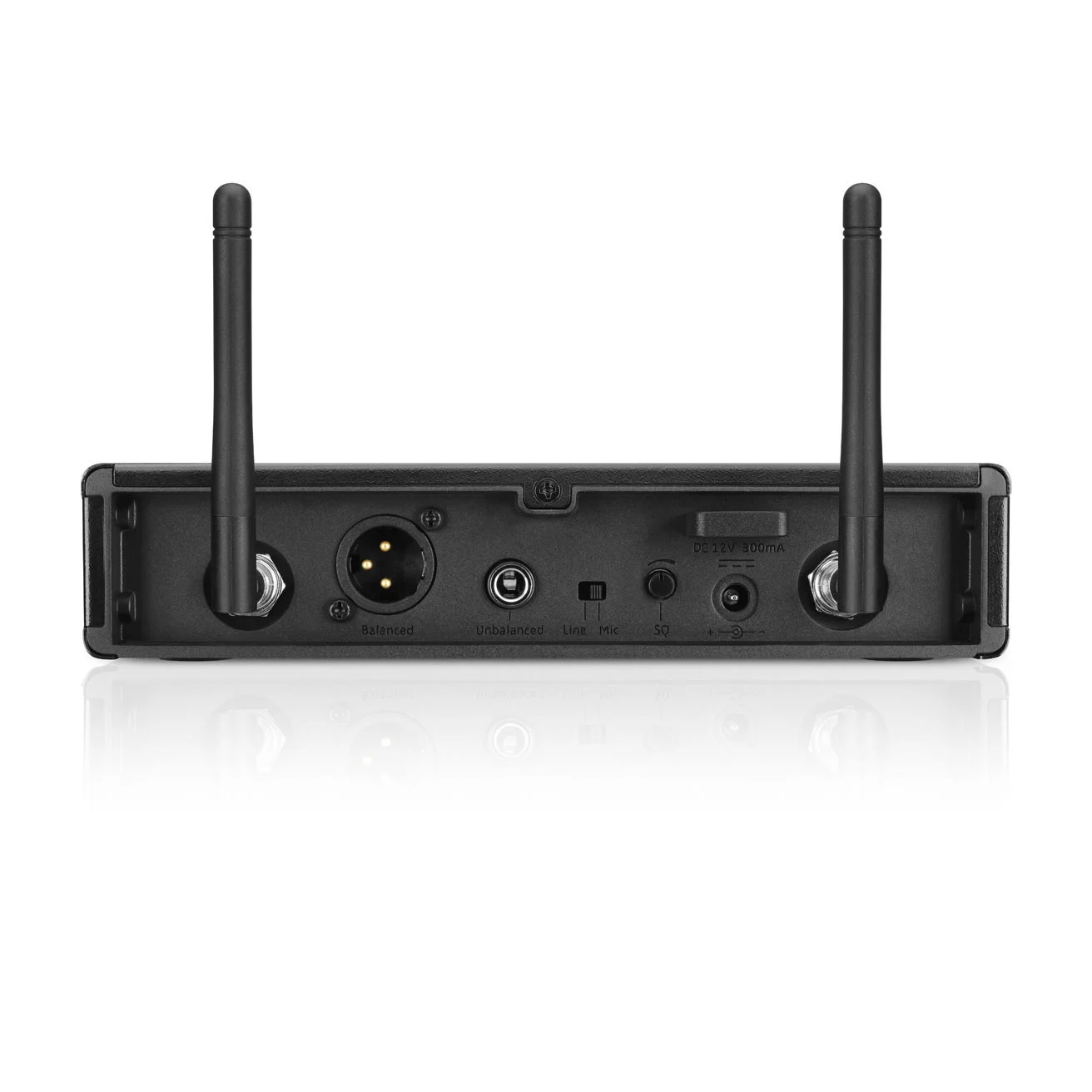

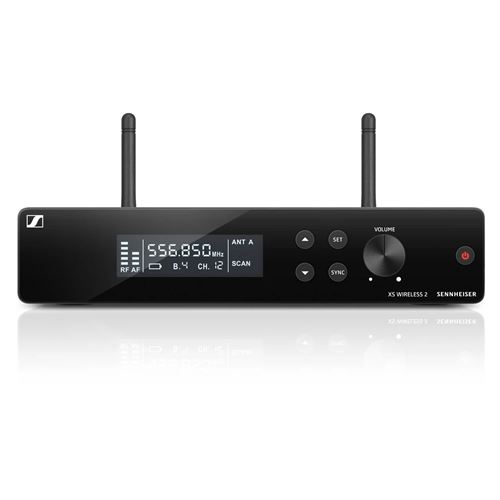

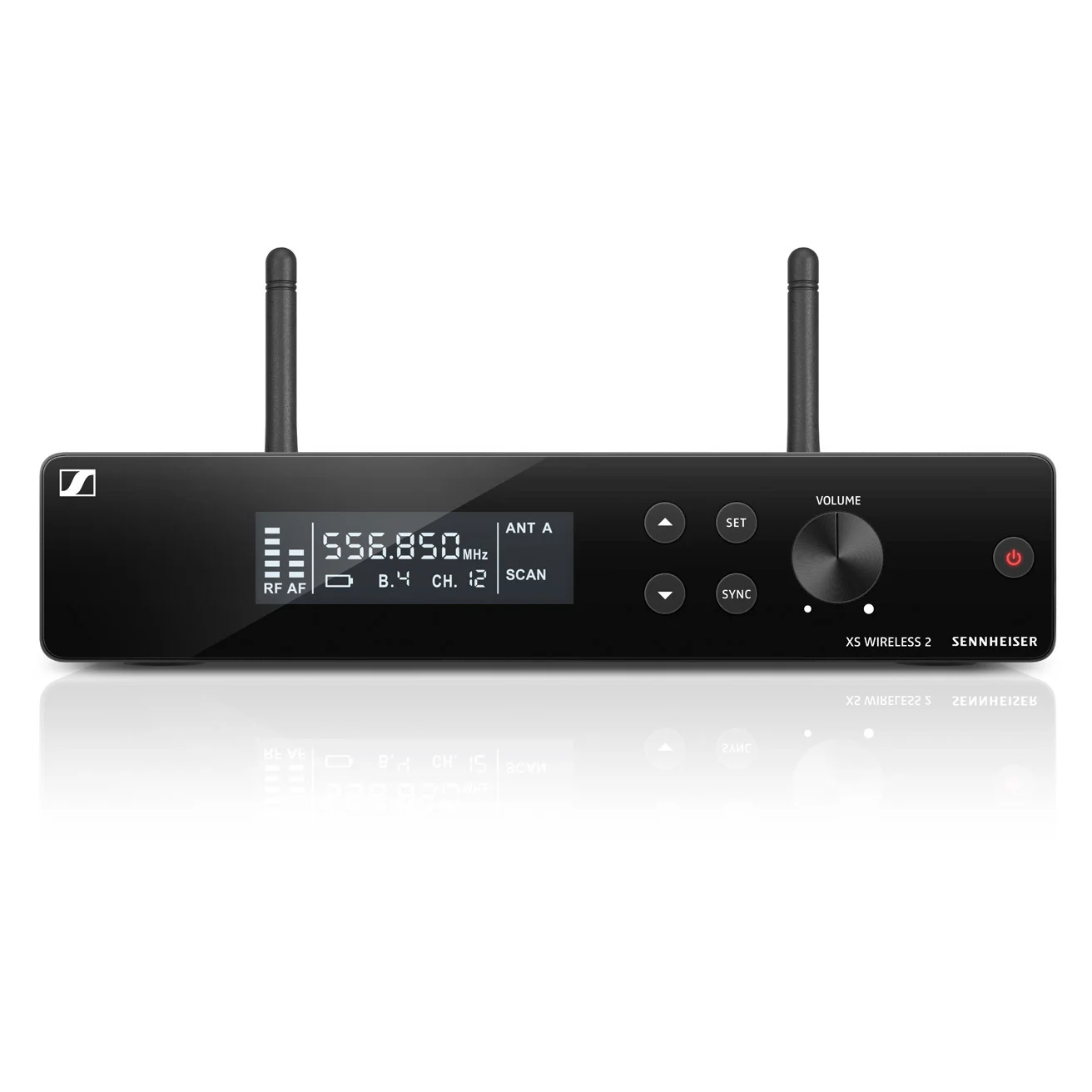

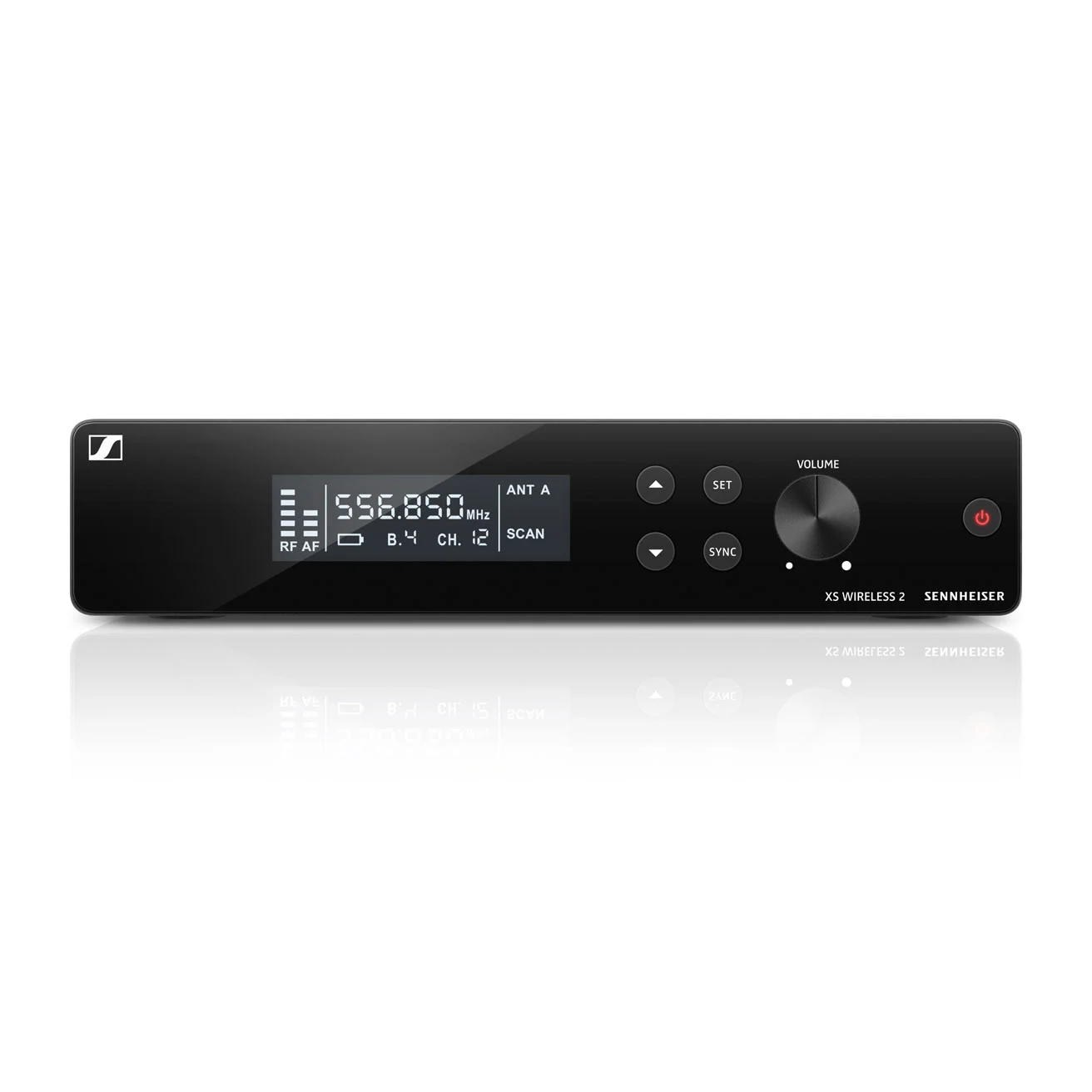

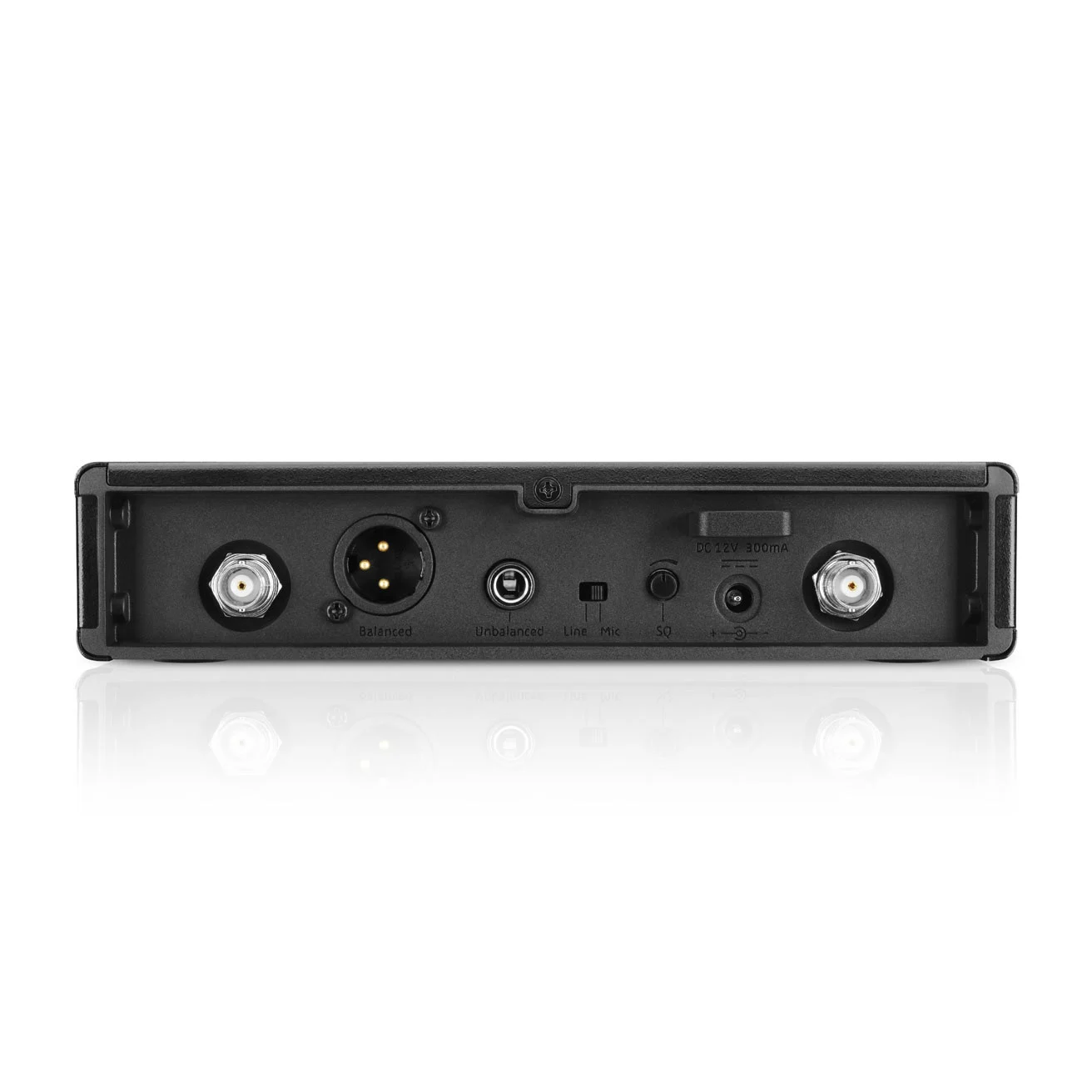

Receivers
- Dimensions
- approx. 200 x 42 x 127 mm
- Weight
- approx. 680g
- Power supply
- 12 V DC nom. / 300 mA
- Housing
- metal, microphone: robust ABS
- AF frequency response
- 50 to 16,000 Hz (–3 dB)

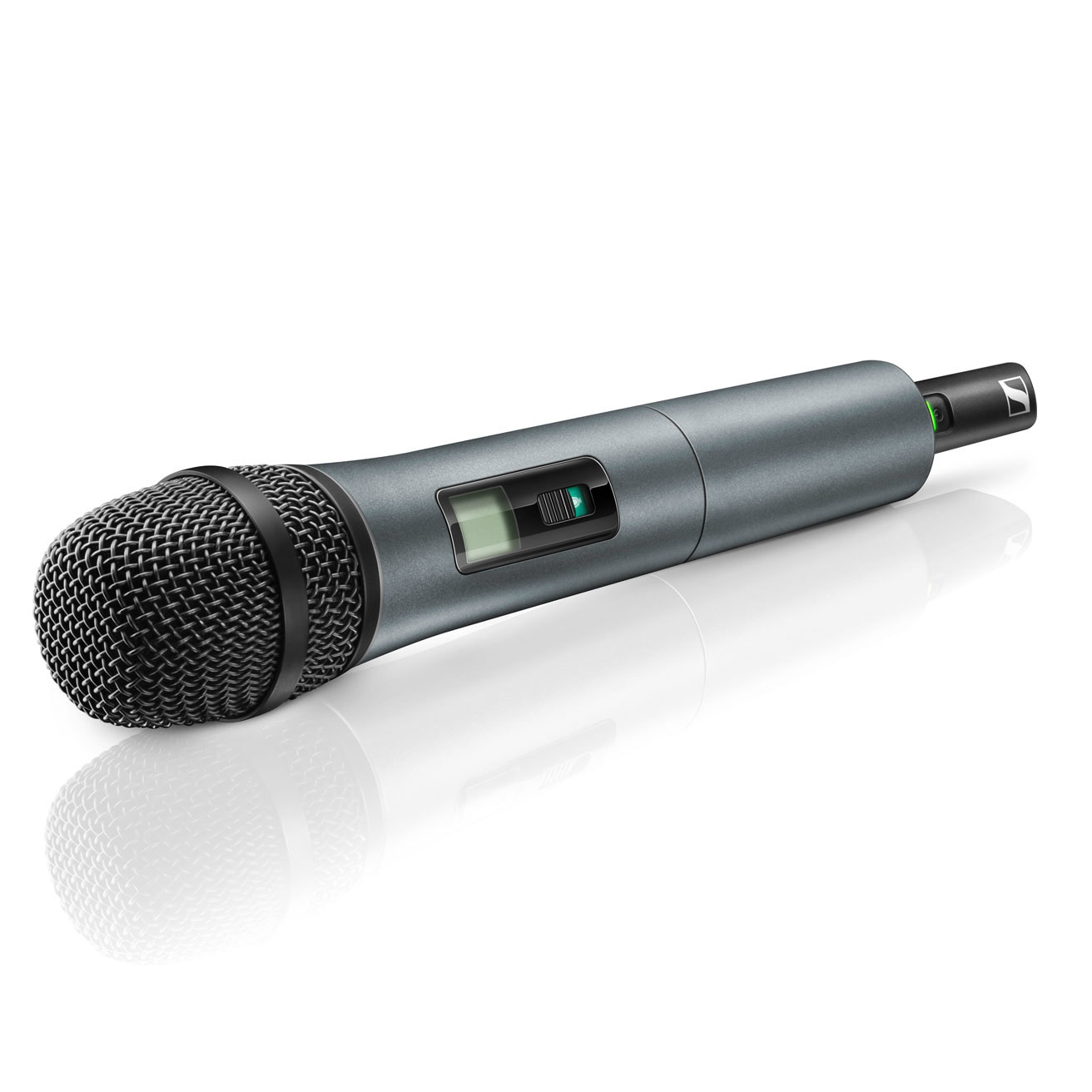

Microphone
- Dimensions
- approx. 260 x 50 mm
- Weight
- approx. 245g
- Operating time
- approx. 10 hrs
- Power supply
- 2 AA size batteries, 1.5 V
- AF frequency response
- 80-16,000 Hz
- Microphone
- condenser
- Frequency response
- 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion
- ≤ 0.9%
- Pick-up pattern
- super-cardioid
- Signal-to-noise ratio
- ≥ 103 dBA
- RF output power
- 10 mW
- Switching bandwidth
- up to 24 MHz
- Modulation
- wideband FM
- Output voltage
- 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Frequency
- 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range
- A: 548-572 MHzGB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz
- Sensitivity
- < 3 μV at 52 dB(A)rms S/N
- Squelch
- switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization
- 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity
- 1.8 mV / Pa
- Adjustment Range Transmitter
- 0到-30分贝，以10分贝为步进调节
- Audio adjustment range
- 40 dB, adjustable in 5-dB steps
- Line / Mic level
- 20 dB, switchable
- Temperature Range
- operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle
- double superheterodyne
- Diversity principle
- True Diversity
