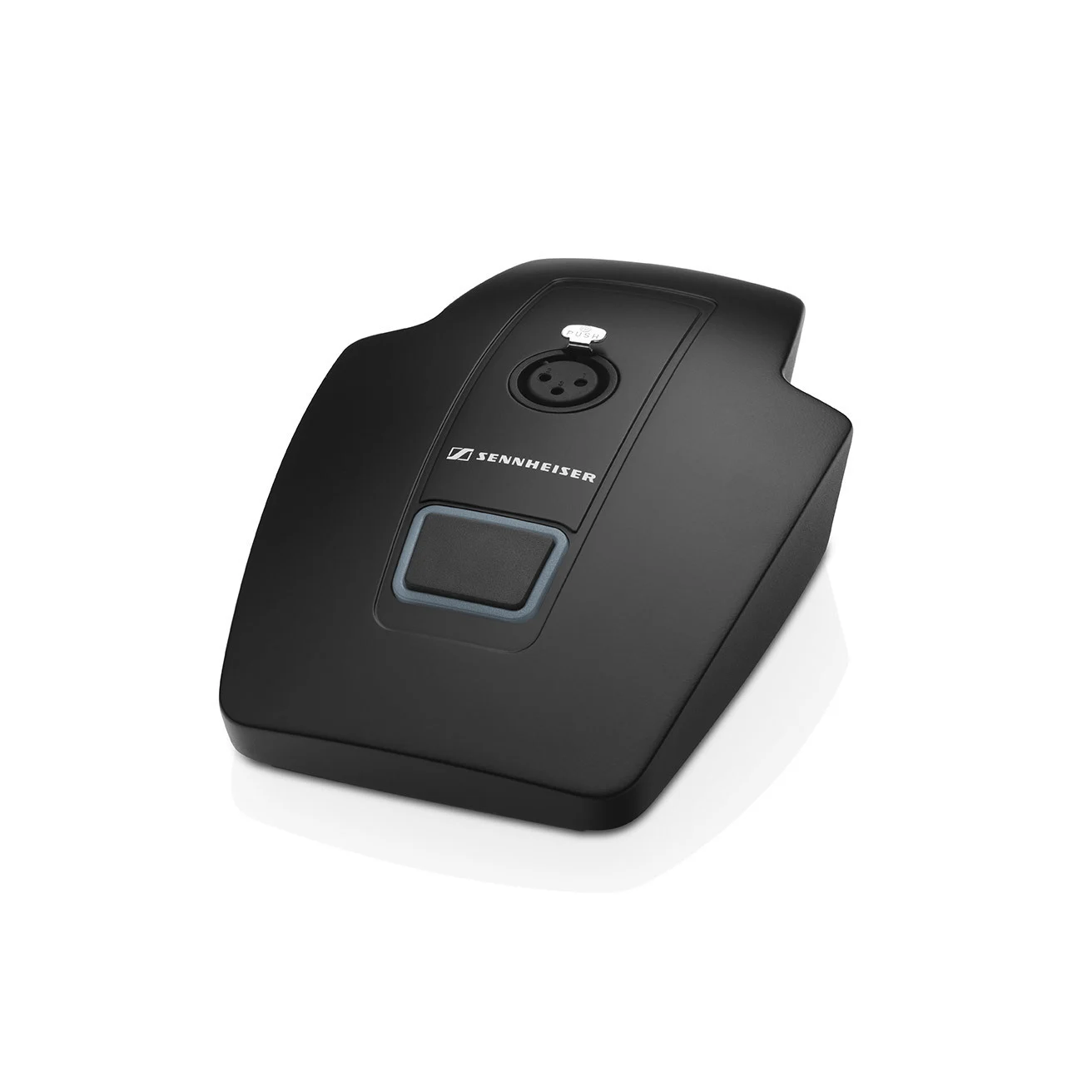

The MAT 133-S is a sturdy, wired table stand that provides a stable base for XLR-3 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black color.
The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile to install as it is to operate.
The table stand MAT 133 is compatible with MEG 14-40-L.
-
Solid Microphone Stand
-
Timeless design
-
Bi-colored light ring for clear visual feedback
-
Logical function for easy control of e.g. cameras
-
Microphone modes
Toggle on/off
Push to mute
Push to talk
permanent on (external LED control)What's in the Box
- MAT 133-S table stand
- Quickguide
- Color
- blacknextel greyLED light ring: red / green
- Dimensions
- 120 x 170 x 43 mm (BTH / WDH)
- Connector
- Mic in:XLR-3F
- Connector
- Mic out:XLR-3M
- Connector
- Logic:clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
- Weight
- 1210 g
- Phantom powering
- P 24 - P 48
- Operating temperature
- -10° - +50°C
- Current consumption
- 3.7 mA
- Output voltage
- Logic out:high level output voltage > 2.4 V, low level output voltage < 0.4 V
- Output voltage
- Logic in:high level input voltage > 2.0 V, low level input voltage < 0.8 V
