Big Thrilling Bass

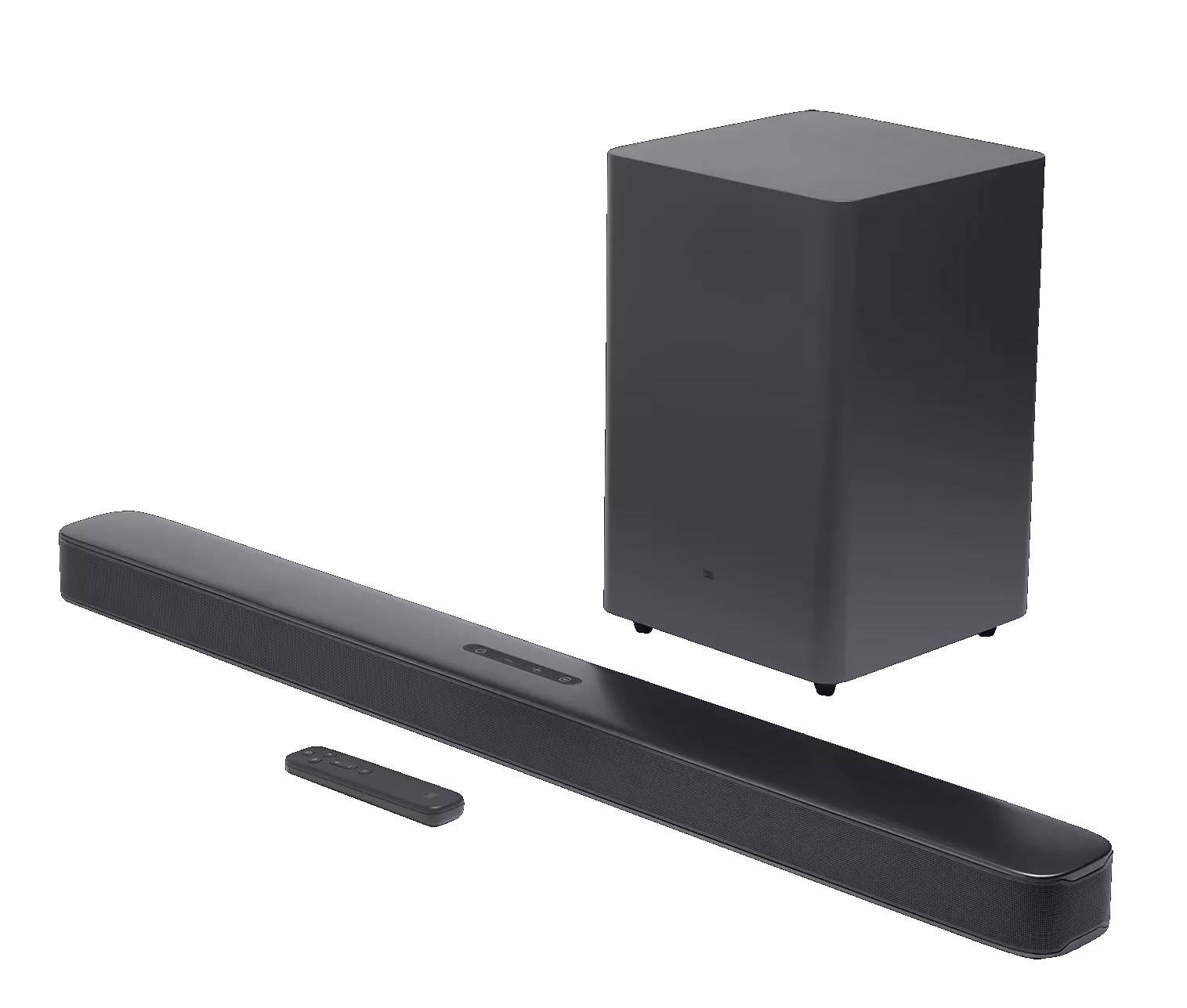

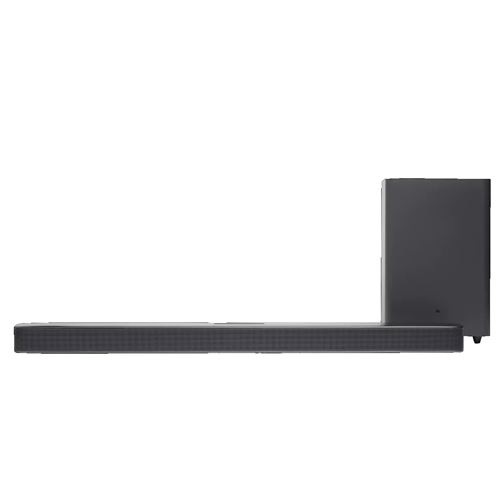

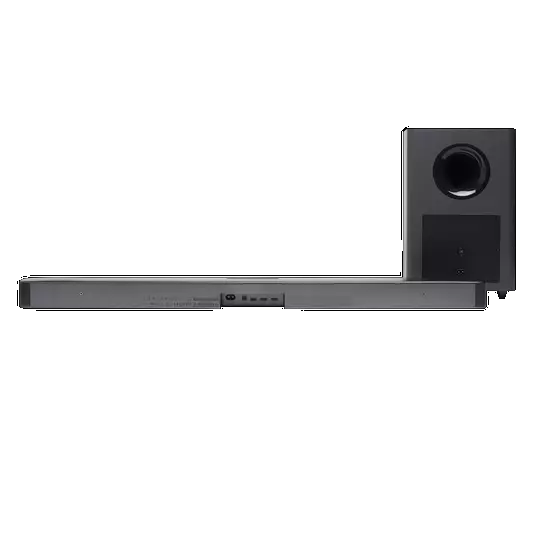

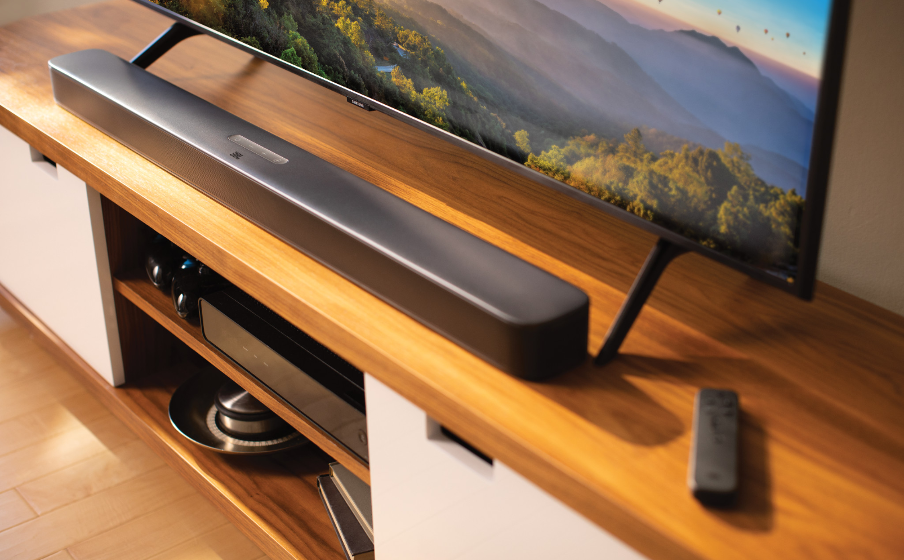

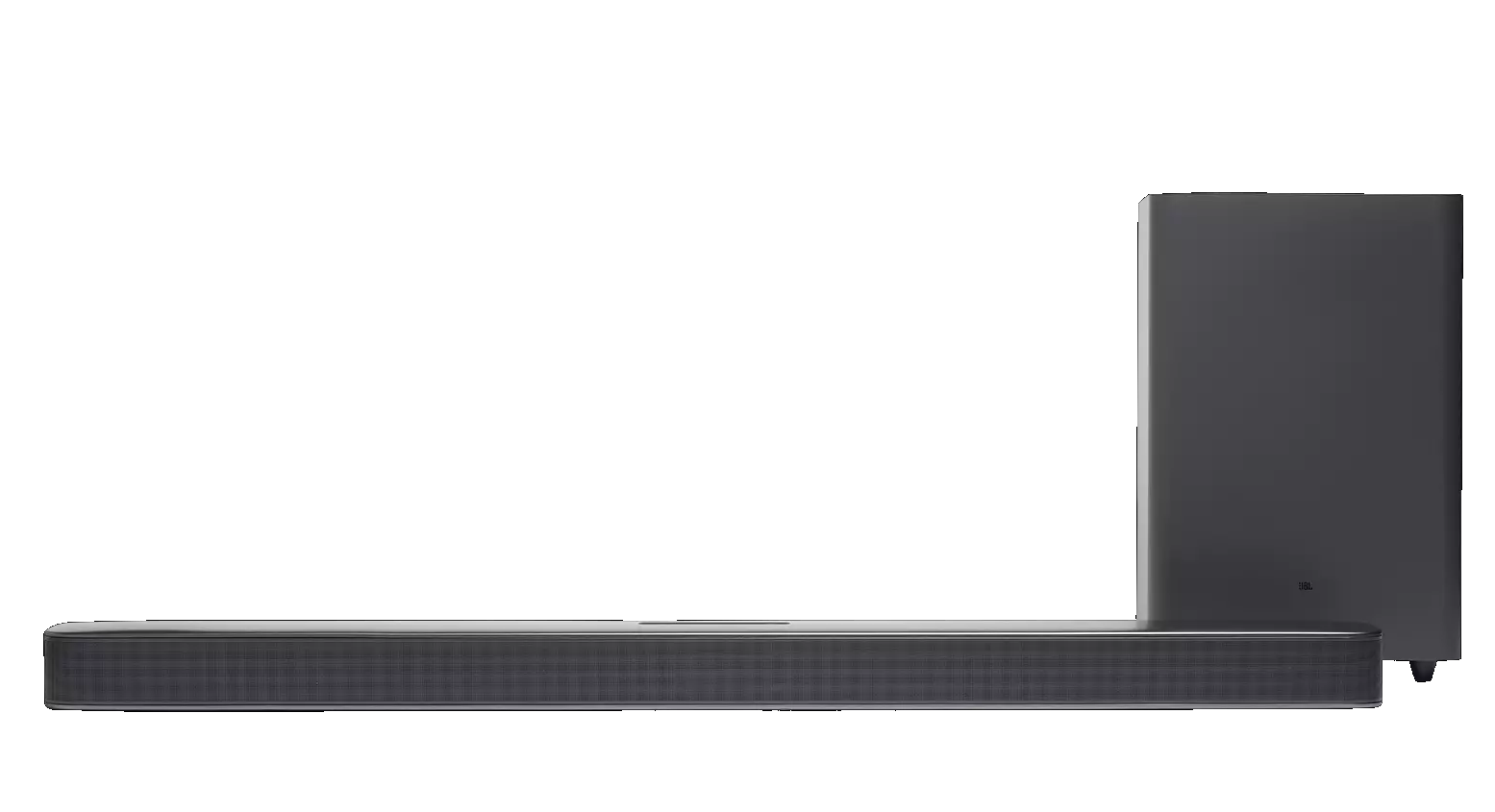

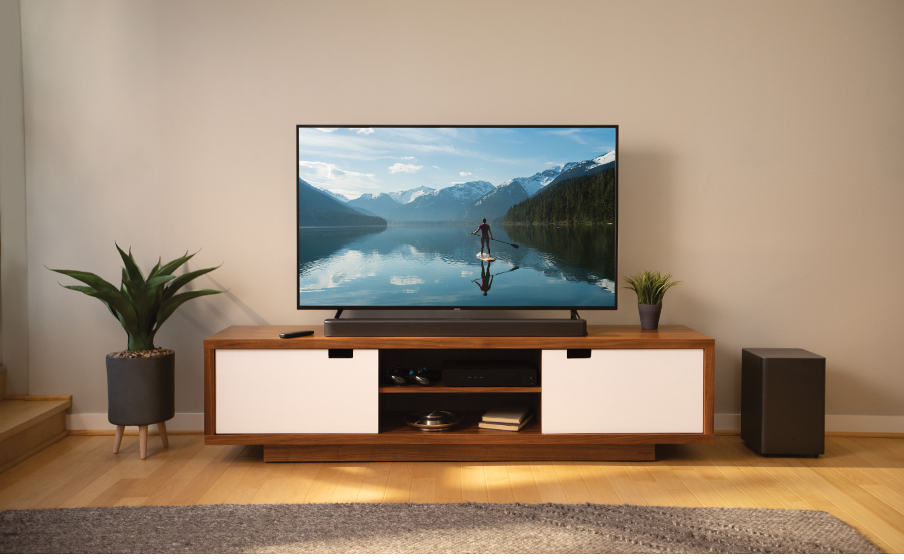

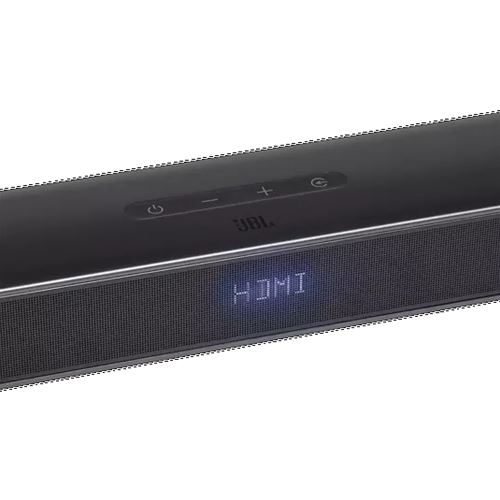

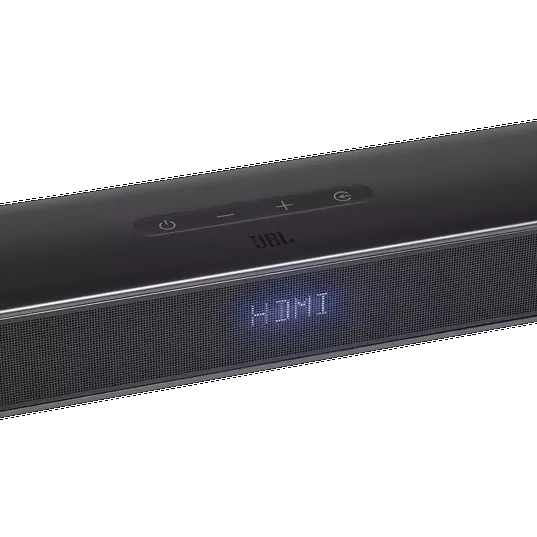

The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1” tweeters, and JBL engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.
Bring the power
An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.
Surround yourself with sound
JBL Surround Sound instantly brings movies, games, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.
All about the bass

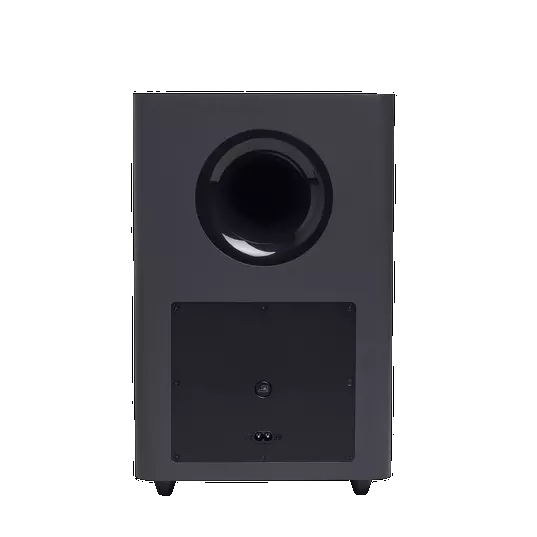

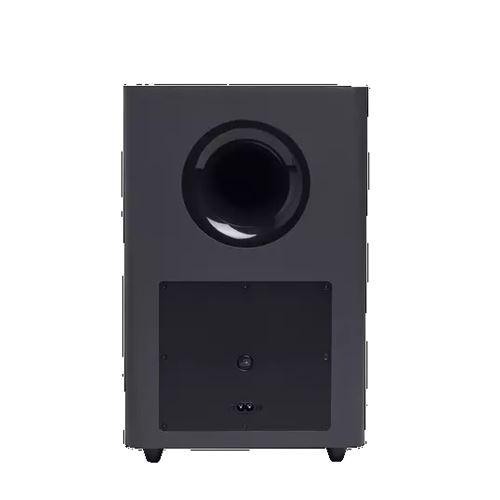

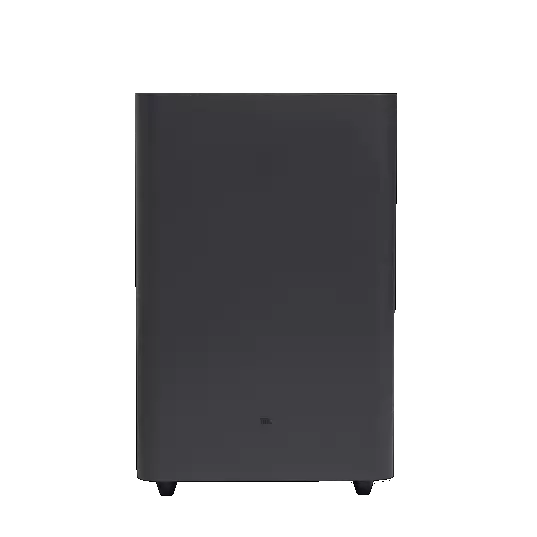

Why just listen to the bass when you can experience it? The 6.5'' wireless subwoofer delivers deep, thrilling sound.
What's in the box?
- Soundbar
- Wireless subwoofer
- Remote control with batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
General Specifications
ModelBar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)
Power supply100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%)300W
Output power (Max. @THD 1%):Yes
2 x 50W (Soundbar); 200W (Subwoofer)Yes
Transducer4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)
Soundbar and Subwoofer standby power<0.5W
Operating temperature0°C - 45°C
HDMI Video output (With Audio return channel)1
HDMI version1.4
Audio Specifications
HDMI Video input1
Frequency response40Hz - 20KHz
Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Dimensions (W x H x D):Yes
965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar);Yes
240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)Yes
Weight2.16 kg (Soundbar);
5.67 kg (Subwoofer)Yes
Packaging dimensions (W x H x D)1045 x 310 x 405mm
Packaging weight (Gross weight)10.4kg
Control and Connection Specifications
USB portType A
USB rating5V DC/ 0.5A
Supporting file formatmp3, wav
MP3 CodecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16KHz - 48 KHz
MP3 bitrate80kbps - 320kbps
WAV sample rate16KHz - 48 KHz
WAV bitrateUp to 3000kbps
Bluetooth version4.2
Bluetooth profileA2DP V1.3, AVRCP V1.5
Bluetooth frequency range2402MHz-2480MHz
Bluetooth Max. transmitting power<10dBm (EIRP)
Modulation TypeGFSK, π/4 DQPSK, 8DPSK
5G Wireless frequency range5736.35 - 5820.35MHz
5G Max. transmitting power<9dBm (EIRP)
Modulation Typeπ/4 DQPSK
