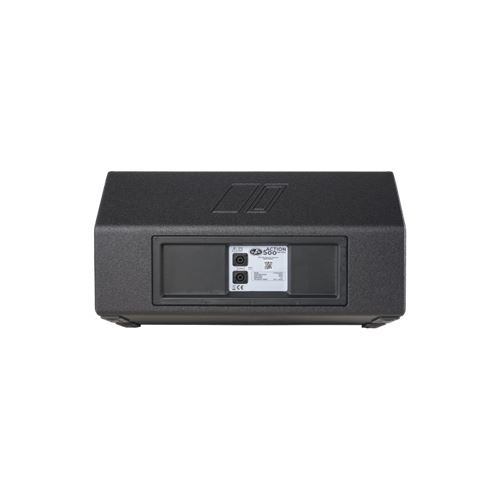

ACTION-M512 is a passive stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA system.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, nautral warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
| Performance | |
| Frequency Range (-10 dB) | 63 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 80º |
| Vertical Coverage | 50º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300 W |
| Peak Power Handling | 1200 W |
| On-axis Sensitivity 1W/1 m | 95 dB SPL |
| Maximum Peak SPL at 1 m | 130 dB |
| Recommended Amplifier | PA-1500 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 450 mm (17,7 in) |
| Dimensions ( H x W x D ) | 335 x 650 x 450 mm |
| 13,2 x 25,6 x 17,7 in | |
| Net Weight | 17,5 kg ( 38,5 lb ) |
| Components | |
| LF Driver | 12MI |
| HF Driver | M-34 |
| Horn/Waveguide | BC-85 |
