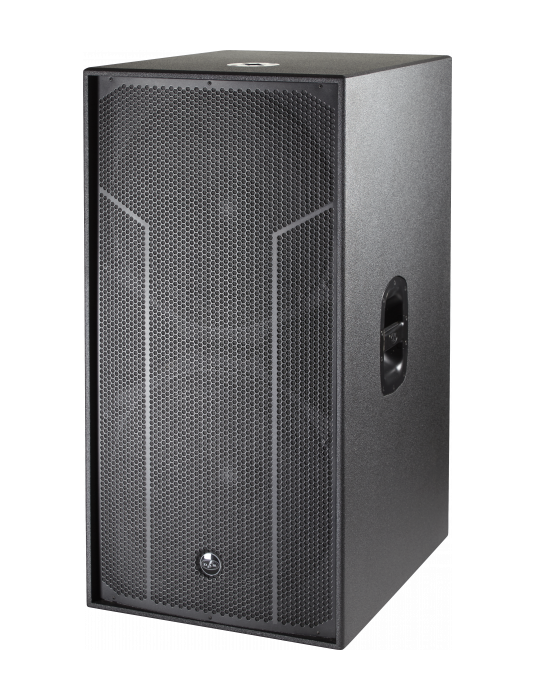

DAS ACTION 500 Series 1200 Watts RMS Dual 18" Passive Subwoofer

ACTION-S218

DAS

Whatsapp for enquiry Email for enquiry






ACTION-S218 is a high-power passive subwoofer system that incorporates two 18FW speakers with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.


Performance
Frequency Range (-10 dB) 29 Hz – 160 Hz
Nominal Impedance 4 ohms
RMS Power Handling 1200 W
Peak Power Handling 4800 W
On-axis Sensitivity 1W/1 m 99 dB SPL
Maximum Peak SPL at 1 m 139 dB
Recommended Amplifier PA-2700
Recommended Processor DSP-226
Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Finish ISO-flex Paint
Color Black
Depth 675 mm (26,6 in)
Dimensions ( H x W x D ) 1.070 x 545 x 675 mm
42,1 x 21,5 x 26,6 in
Net Weight 61,0 kg ( 134,2 lb )
Components
LF Driver 18FW
