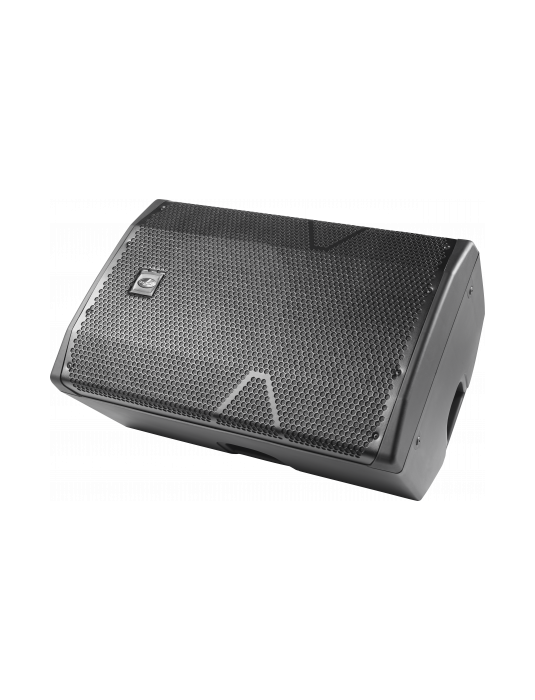

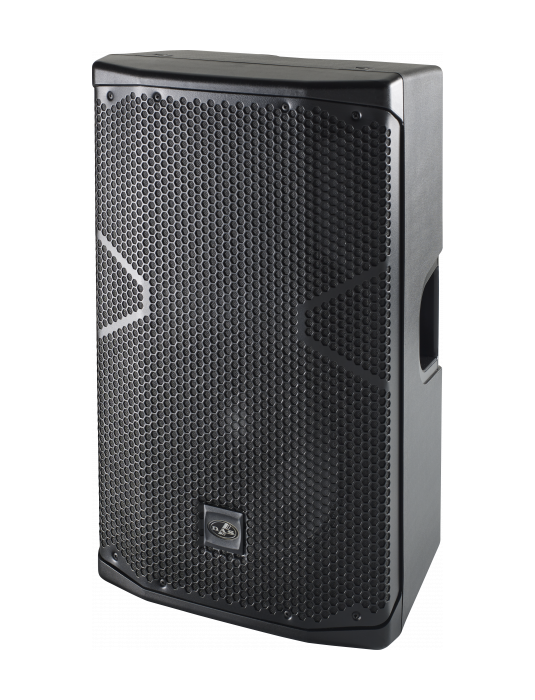

The ALTEA-412A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

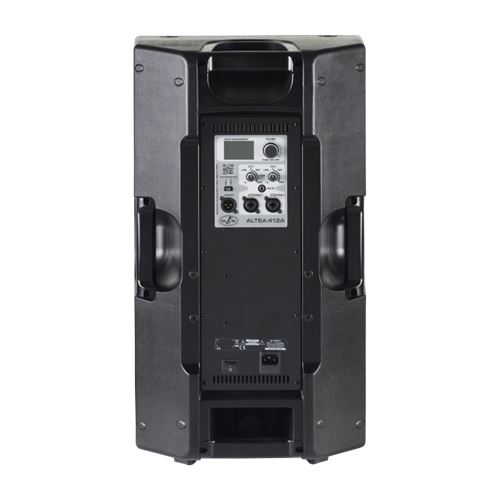

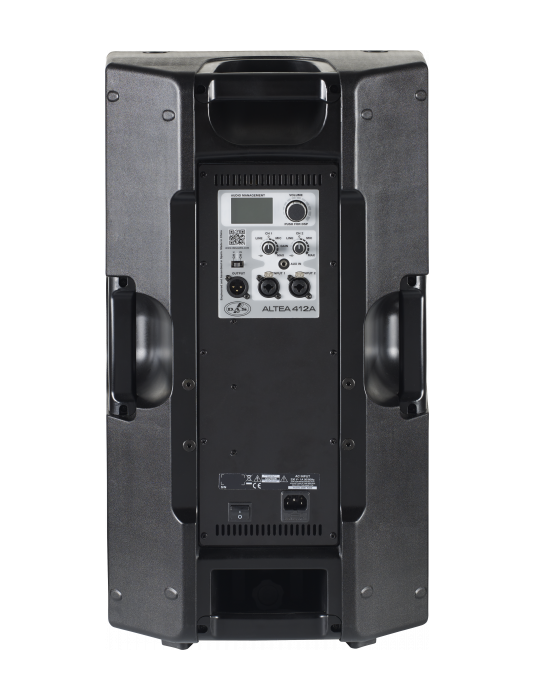

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 12MI4 loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.
Performance | |
Frequency Range (-10 dB) | 60 Hz – 20 kHz |
Horizontal Coverage (-6 dB) | 90º |
Vertical Coverage | 60º |
Maximum Peak SPL at 1 m | 126 dB |
Electronics and Connectors | |
Nominal Amplifier Power (continuous) | 400 W |
Nominal Amplifier Power (peak) | 800 W |
Input Type | Balanced |
Input Impeadance | 20 kohms |
Input Sensitivity | 1.95 V (+8 dBu) |
Audio Signal Input Connector | 2 x Female XLR |
AUX Input | 1 x 3.5 mm Mini Jack |
Audio Signal Loop Thru Connector | 1 x Male XLR |
Control | DAScontrol™ |
Current Draw 230 V / 115 V | 1.0 A/2.0 A |
Enclosure | |
Enclosure Construction | Polypropylene |
Enclosure Geometry | Trapezoidal |
Rigging | M8 Rigging Points |
Color | Black |
Dimensions ( H x W x D ) | 655 x 380 x 350 mm |
25,8 x 15,0 x 13,8 in | |
Net Weight | 15,5 kg ( 34,2 lb ) |
Components | |
LF Driver | 12MI4 |
HF Driver | M-32 |
