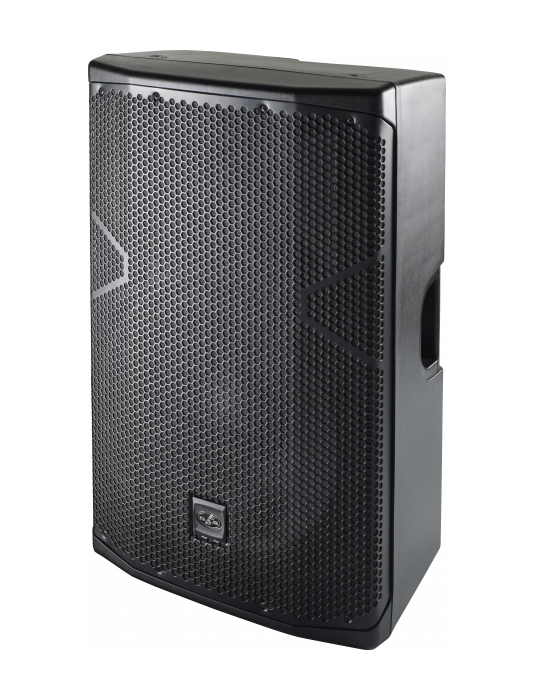

The ALTEA-715A is a high-powered model from DAS Audio’s ALTEA Series. It´s equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-715A systems.

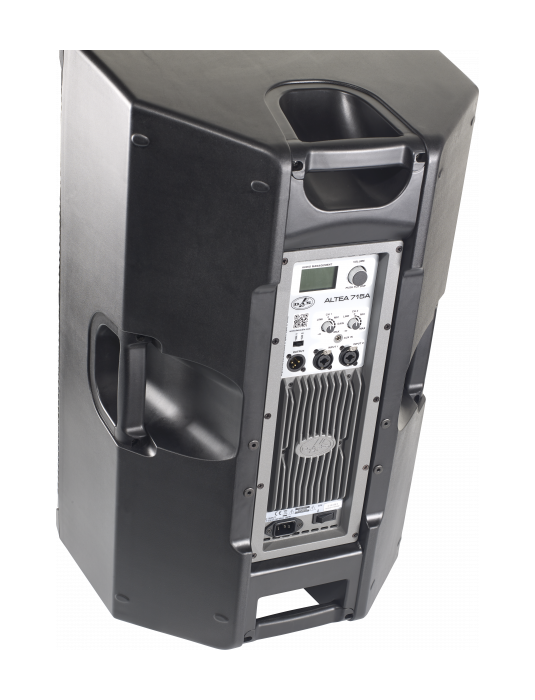

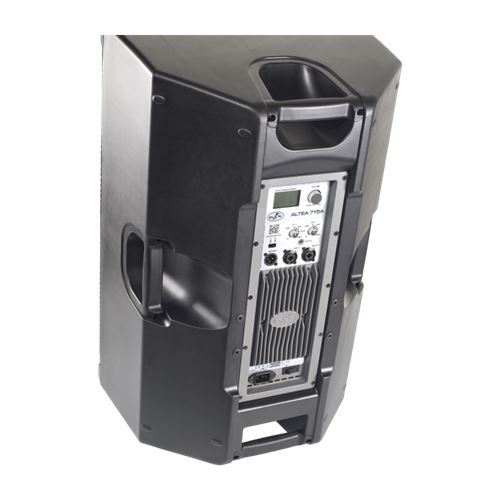

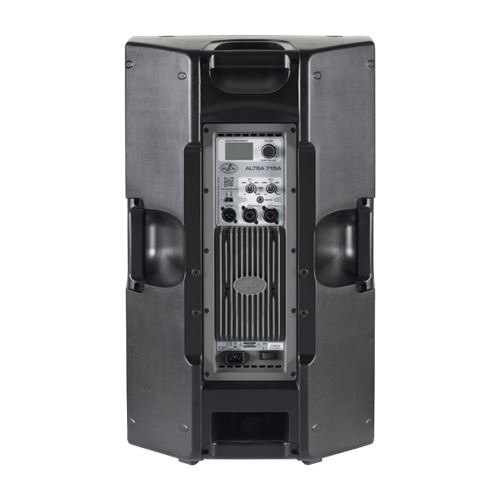

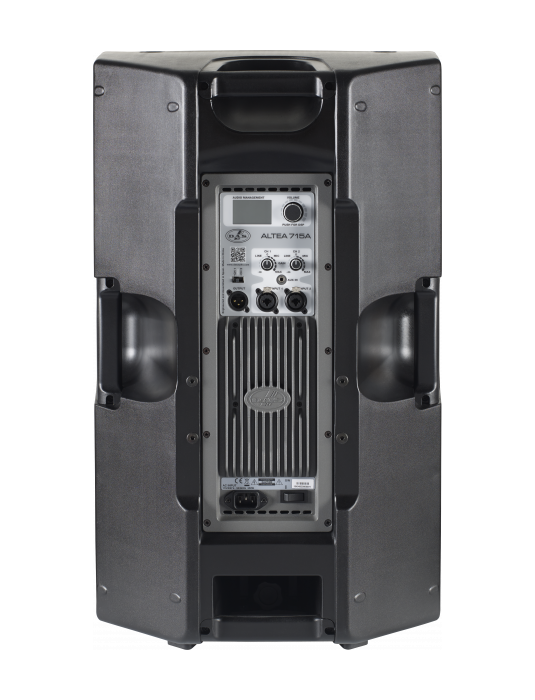

The DAScontrol™ interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink™ of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.
The high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1″ exit providing exceptional performance and smooth reproduction.
Performance | |
Frequency Range (-10 dB) | 45 Hz – 20 kHz |
Horizontal Coverage (-6 dB) | 90º |
Vertical Coverage | 60º |
Maximum Peak SPL at 1 m | 132 dB |
Electronics and Connectors | |
Nominal Amplifier Power (continuous) | 750 W |
Nominal Amplifier Power (peak) | 1500 W |
Input Type | Balanced |
Input Impeadance | 20 kohms |
Input Sensitivity | 1.95 V (+8 dBu) |
Audio Signal Input Connector | 2 x Female XLR |
AUX Input | 1 x 3.5 mm Mini Jack |
Audio Signal Loop Thru Connector | 1 x Male XLR |
Control | DASlink™ |
DAScontrol™ | |
Current Draw 230 V / 115 V | 1.5 A/3.0 A |
Enclosure | |
Enclosure Construction | Polypropylene |
Enclosure Geometry | Trapezoidal |
Rigging | M8 Rigging Points |
Color | Black |
Dimensions ( H x W x D ) | 710 x 440 x 380 mm |
28,0 x 17,3 x 15,0 in | |
Net Weight | 19,5 kg ( 43,0 lb ) |
Components | |
LF Driver | 15FV4 |
HF Driver | M-28 |
