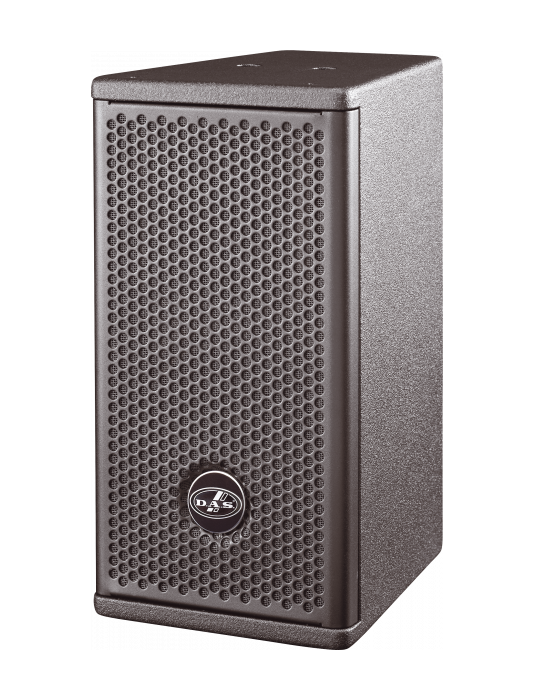

The ARTEC-306-T 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount and factory installed line transformer.
| Performance | |
| Frequency Range (-10 dB) | 70 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 12.5 W, 25 W, 50 W, 100 W |
| Transformer Taps 100 V | 25 W, 50 W, 100 W |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 116 dB |
| Recommended Amplifier | PA-900 |
| Recommended Processor | DSP-226 |
| Connectors | |

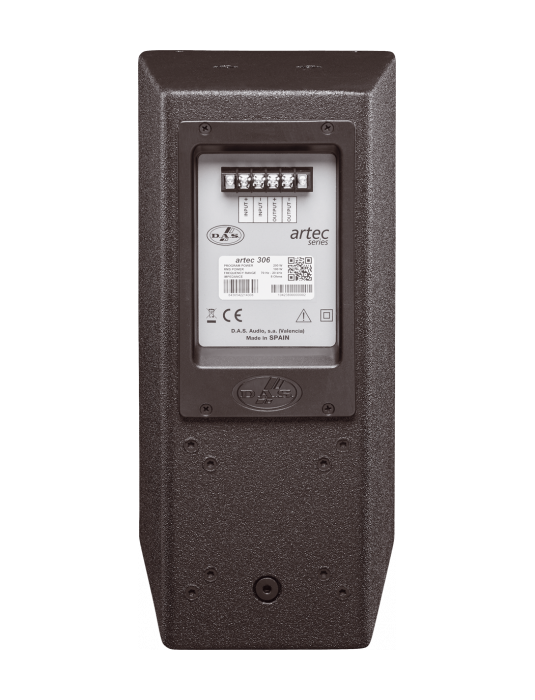

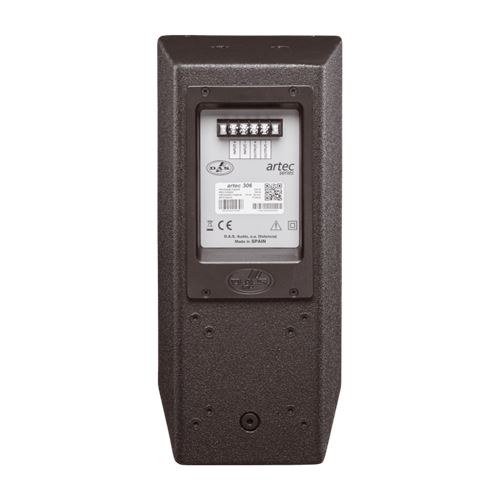

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 260 mm (10,2 in) |
| Dimensions ( H x W x D ) | 385 x 195 x 260 mm |
| 15,2 x 7,7 x 10,2 in | |
| Net Weight | 8,0 kg ( 17,6 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-26 |
| Horn/Waveguide | BCT-96 |
