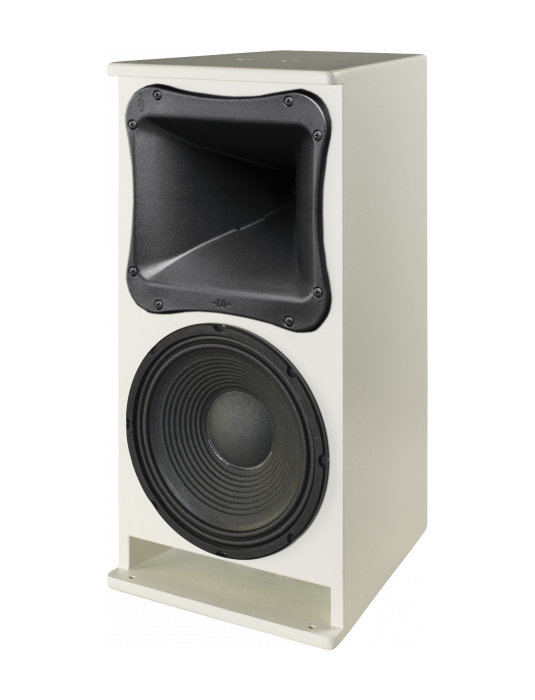

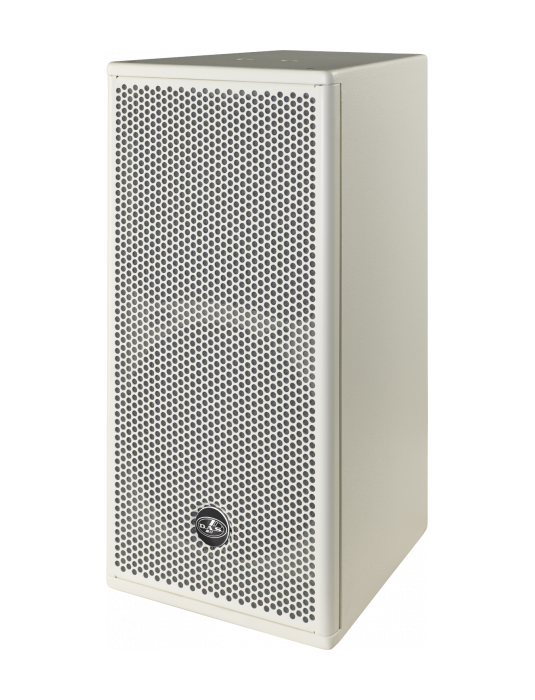

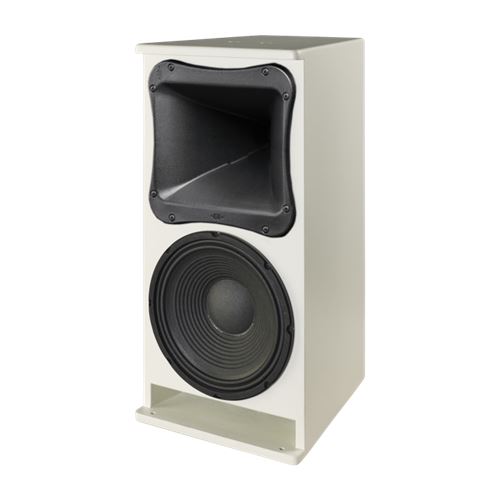

The ARTEC-310.64-TW is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount and factory installed line transformer.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 40º |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 12.5 W, 25 W, 50 W, 100 W |
| Transformer Taps 100 V | 25 W, 50 W, 100 W |
| RMS Power Handling | 250 W |
| Peak Power Handling | 1000 W |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 126 dB |
| Recommended Amplifier | PA-900 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | White |
| Depth | 345 mm (13,6 in) |
| Dimensions ( H x W x D ) | 610 x 295 x 345 mm |
| 24,0 x 11,6 x 13,6 in | |
| Net Weight | 15,5 kg ( 34,2 lb ) |
| Components | |
| LF Driver | 10MI |
| HF Driver | M-34 |
| Horn/Waveguide | BC-614 |
