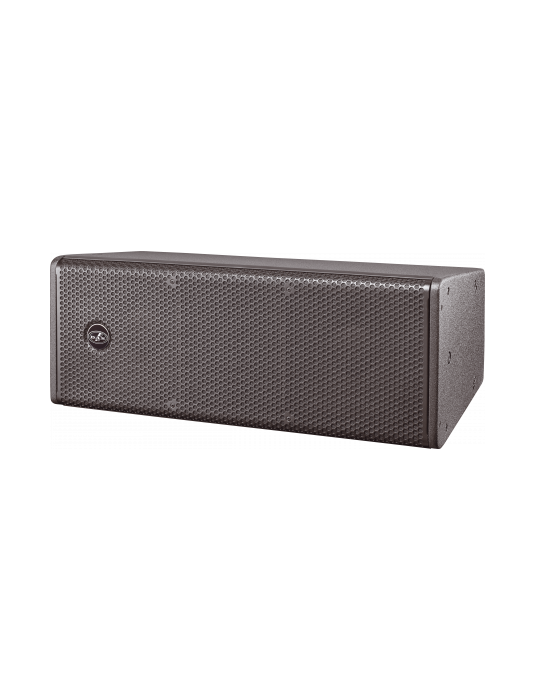

The ARTEC-320 is a passive installation line array in a double 10” configuration. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. The JP-320 joining plates allow for an effective installation solution and are compatible with the ARTEC-322S subwoofer systems. The ARTTEC-320 is delivered with the joining plates.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | Splay Dependent |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 132 dB |
| Recommended Amplifier | PA-2700 |
| Recommended Processor | DSP-226 |
| Connectors | |

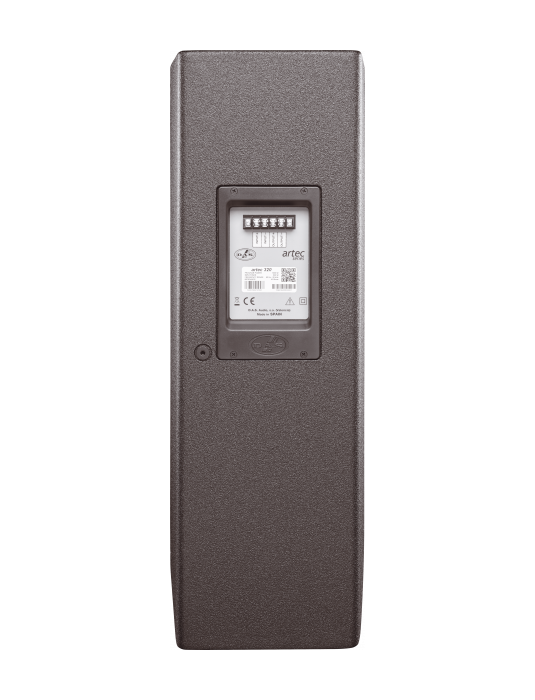

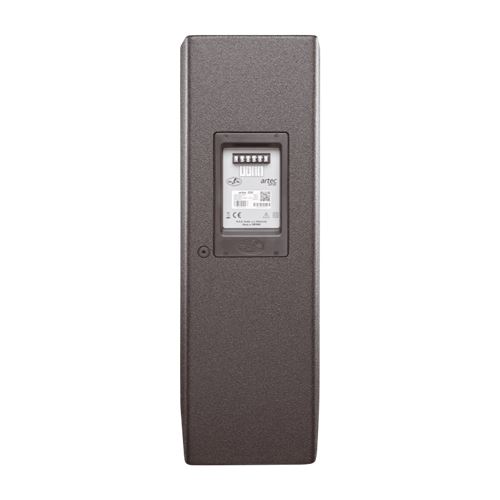

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 360 mm (14,2 in) |
| Dimensions ( H x W x D ) | 345 x 710 x 360 mm |
| 13,6 x 28,0 x 14,2 in | |
| Net Weight | 26,5 kg ( 58,3 lb ) |
| Components | |
| LF Driver | 10MI |
| HF Driver | M-75 |
