DAS ARTEC 500 Series 200 Watts RMS 6" 2-Way Fullrange Passive Loudspeaker

ARTEC-506

DAS

Whatsapp for enquiry Email for enquiry

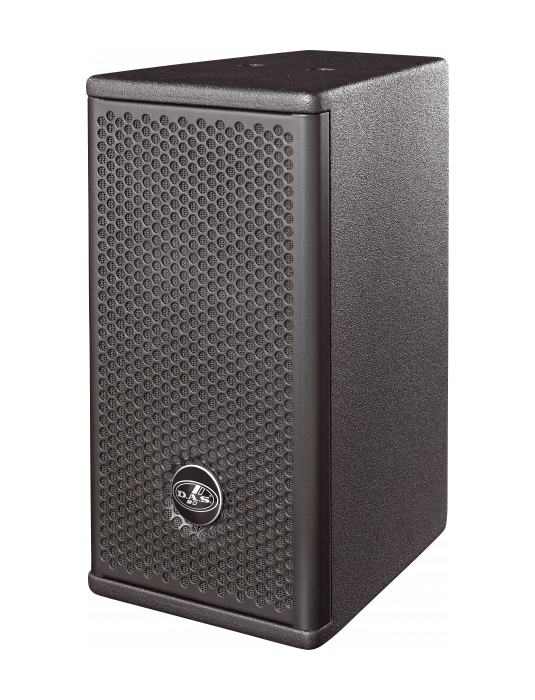

The Artec-506 employs a single 6P woofer for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional «U» brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.


Performance
Frequency Range (-10 dB) 65 Hz – 20 kHz
Horizontal Coverage (-6 dB) 80º
Vertical Coverage 80º
Nominal Impedance 8 ohms
RMS Power Handling 200 W
Peak Power Handling 800 W
On-axis Sensitivity 1W/1 m 90 dB SPL
Maximum Peak SPL at 1 m 122 dB
Recommended Amplifier DX-80-230
DX-80-115
Recommended Processor DSP-2040
Connectors

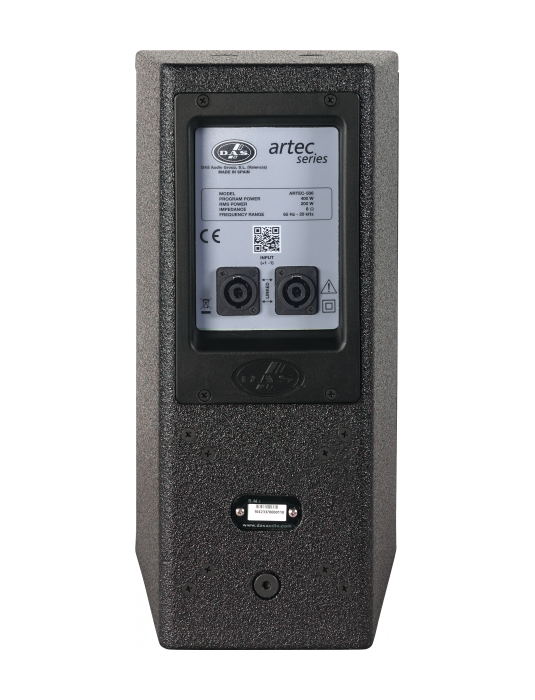

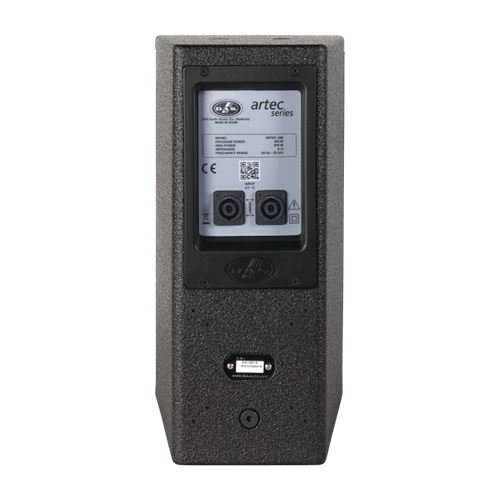

Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 260 mm (10,2 in)
Dimensions ( H x W x D ) 385 x 195 x 260 mm
15,2 x 7,7 x 10,2 in
Net Weight 7,0 kg ( 15,4 lb )
Components
LF Driver 6P
HF Driver M-34
Horn/Waveguide BC-88
