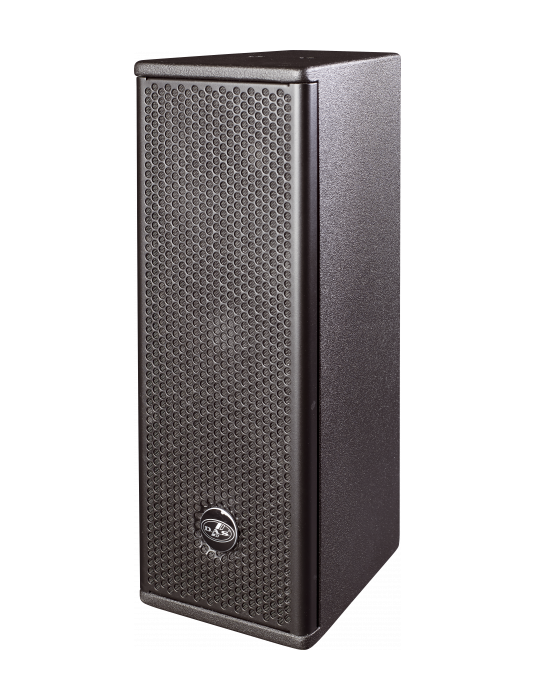

The Artec-526 employs twin 6P woofers for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional «U» brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
Performance | |
Frequency Range (-10 dB) | 60 Hz – 20 kHz |
Horizontal Coverage (-6 dB) | 80º |
Vertical Coverage | 80º |
Nominal Impedance | 16 ohms |
RMS Power Handling | 400 W |
Peak Power Handling | 1600 W |
On-axis Sensitivity 1W/1 m | 93 dB SPL |
Maximum Peak SPL at 1 m | 125 dB |
Recommended Amplifier | DX-80-230 |
DX-80-115 | |
Recommended Processor | DSP-2040 |

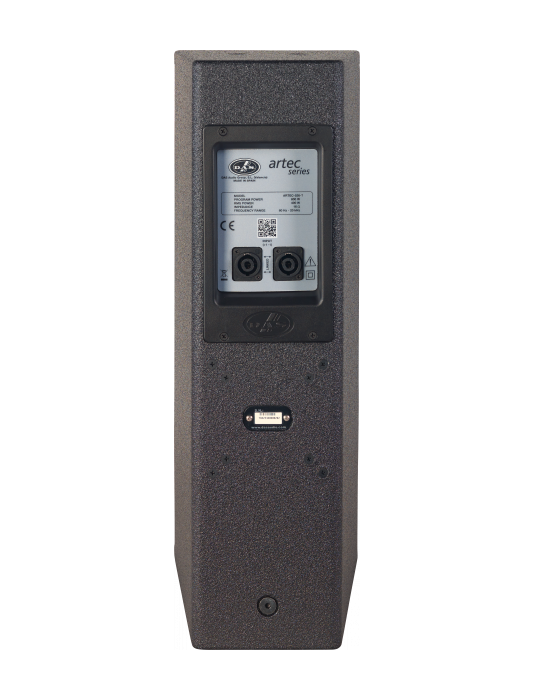

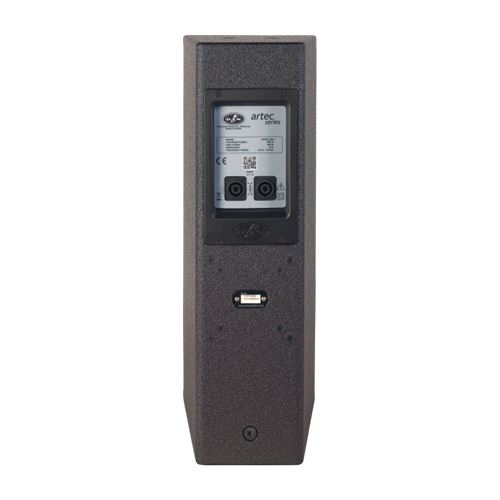

Connectors | |
Audio Input Connector | 1 x speakON NL4 |
Audio Output Connector | 1 x speakON NL4 |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Trapezoidal |
Rigging | M10 Rigging Points |
Finish | ISO-flex Paint |
Depth | 260 mm (10,2 in) |
Dimensions ( H x W x D ) | 550 x 195 x 260 mm |
21,7 x 7,7 x 10,2 in | |
Net Weight | 14,5 kg ( 32,0 lb ) |
Components | |
LF Driver | 6P |
HF Driver | M-34 |
Horn/Waveguide | BC-88 |
