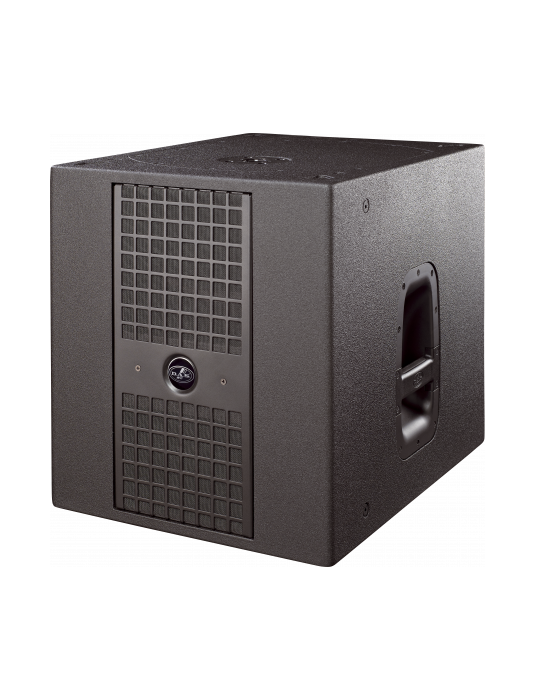

The Artec S15 band-pass bass system incorporates a 15SX low frequency transducer with a 4 ” voice coil. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The Artec S15 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the Artec S15 and two bar handles makes moving easy.
| Performance | |
| Frequency Range (-10 dB) | 45 Hz – 138 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 137 dB |
| Recommended Amplifier | DX-80-230 |
| DX-80-115 | |
| Recommended Processor | DSP-2040 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 585 mm (23,0 in) |
| Dimensions ( H x W x D ) | 515 x 465 x 585 mm |
| 20,3 x 18,3 x 23,0 in | |
| Net Weight | 32,0 kg ( 70,6 lb ) |
| Components | |
| LF Driver | 15LXN |
