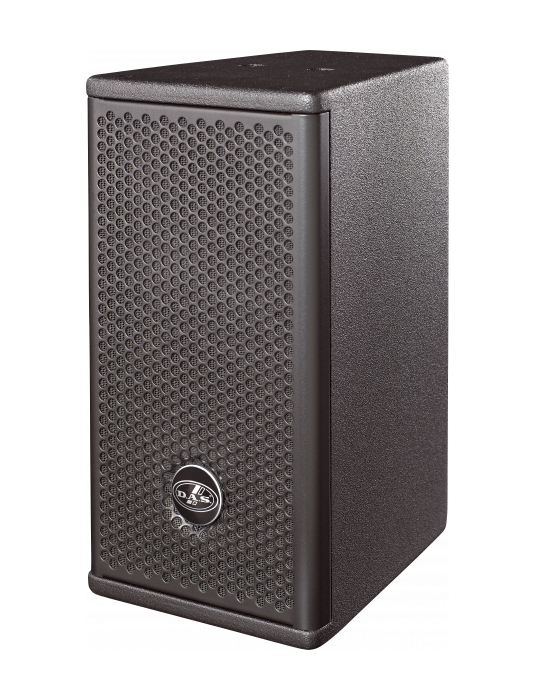

The ARTEC-506A incorporates a single 6” loudspeaker for low frequency reproduction. The 720 W peak power of the Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. The DAS 6P loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-34 compression driver with 1″ exit offering excellent HF performance. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.
| Performance | |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 80º |
| Vertical Coverage | 80º |
| Maximum Peak SPL at 1 m | 118 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 360 W |
| Nominal Amplifier Power LF (peak) | 720 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |

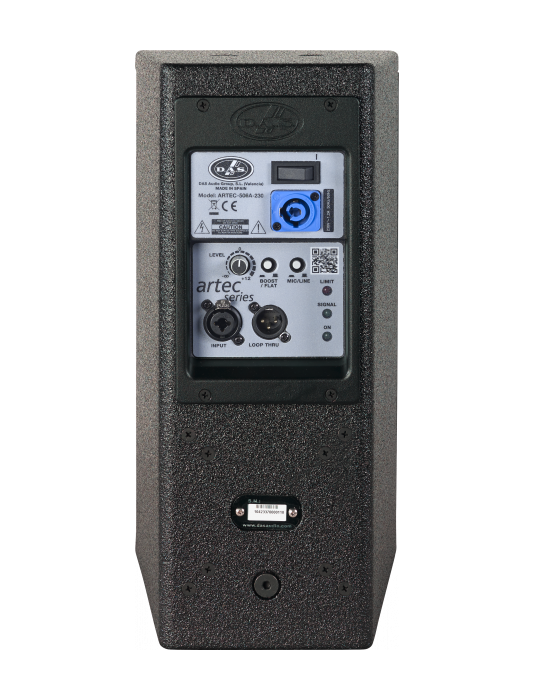

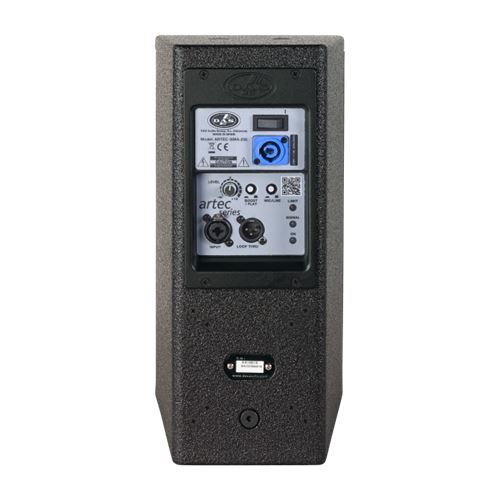

| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Current Draw 230 V / 115 V | -/2.4 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 385 x 195 x 260 mm |
| 15,2 x 7,7 x 10,2 in | |
| Net Weight | 9,0 kg ( 19,8 lb ) |
| Components | |
| LF Driver | 6P |
| HF Driver | M-34 |
| Horn/Waveguide | BC-88 |
