DAS DECO Series 20 Watts RMS 5.25" Double Cone Fullrange Ceiling Speaker

DECO-5

DAS

Whatsapp for enquiry Email for enquiry

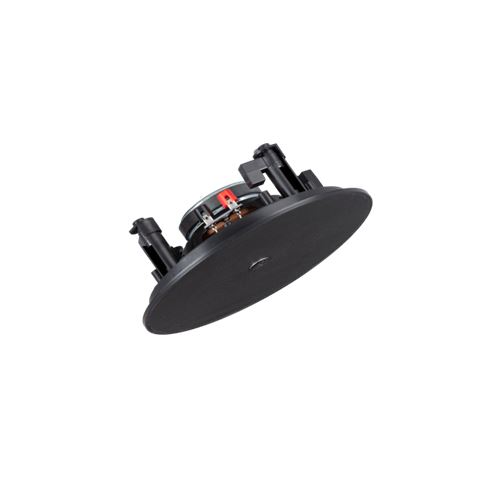

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

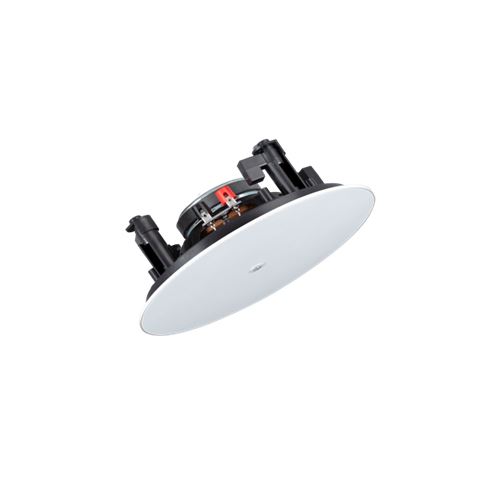

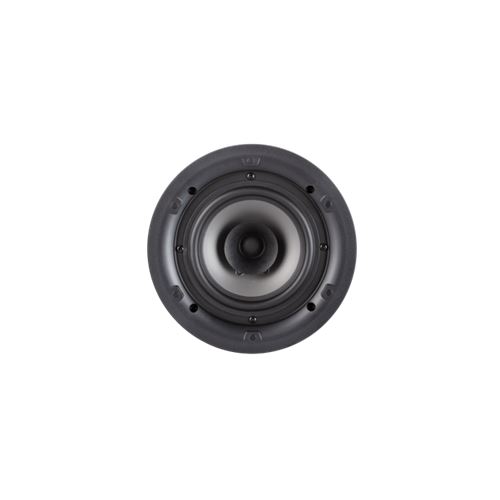

The DECO-5 model is a 5” full-range ceiling-mounted acoustic system. It does not include a transformer and is specifically designed for low impedance. It is equipped with a 5.25” double cone loudspeaker and a 1” voice coil. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible.


Performance
Frequency Range (-10 dB) 70 Hz – 15 kHz
Horizontal Coverage (-6 dB) 100º
Nominal Impedance 8 ohms
RMS Power Handling 20 W
Peak Power Handling 80 W
On-axis Sensitivity 1W/1 m 89 dB SPL
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
Connectors
Audio Input Connector Spring Terminals
Audio Output Connector Spring Terminals
Enclosure
Enclosure Geometry Round
Color White
Cut Out Diameter 181 mm (7,2 in)
Depth 75 mm (3,0 in)
Dimensions ( H x W x D ) 205 x 205 x 75 mm
8,0 x 8,0 x 3,0 in
Net Weight 0,7 kg ( 1,5 lb )
