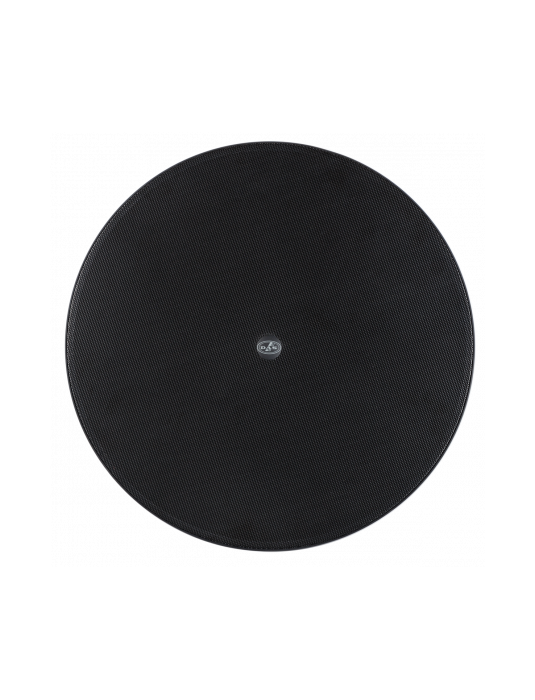

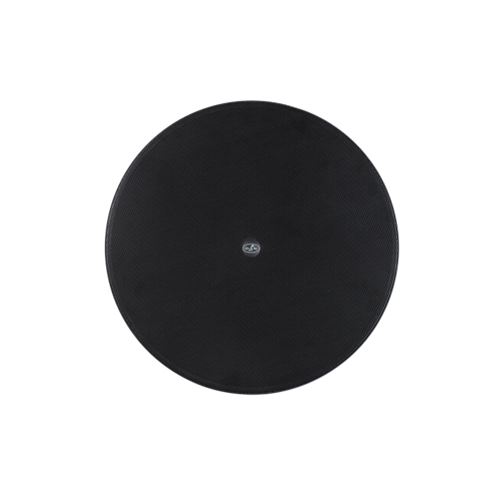

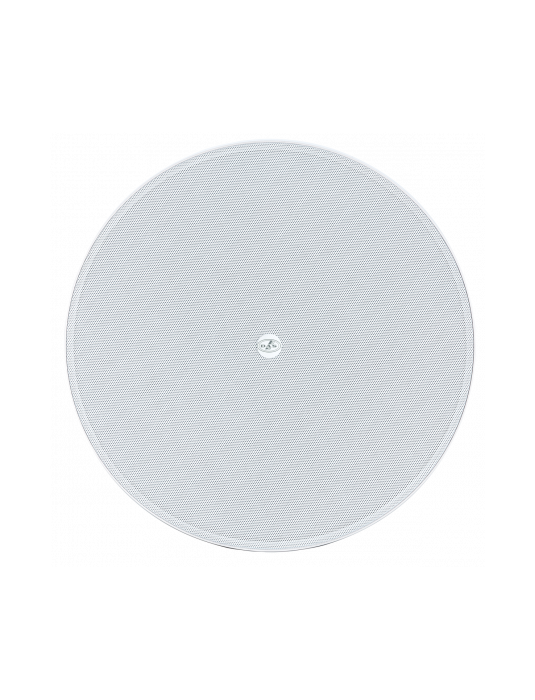

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

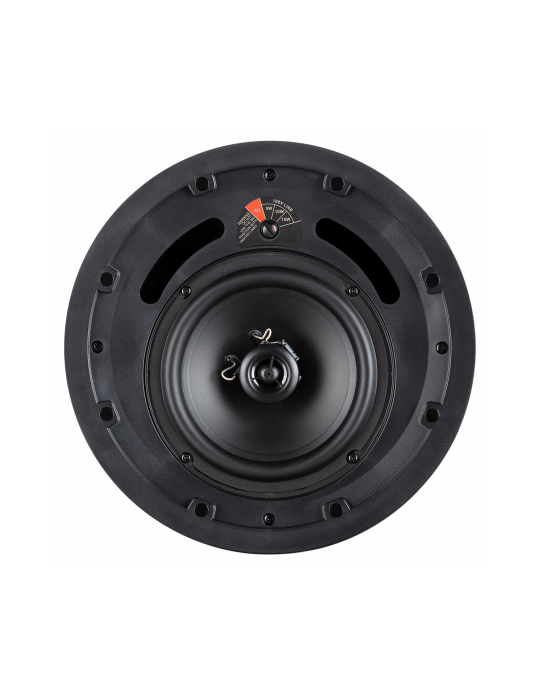

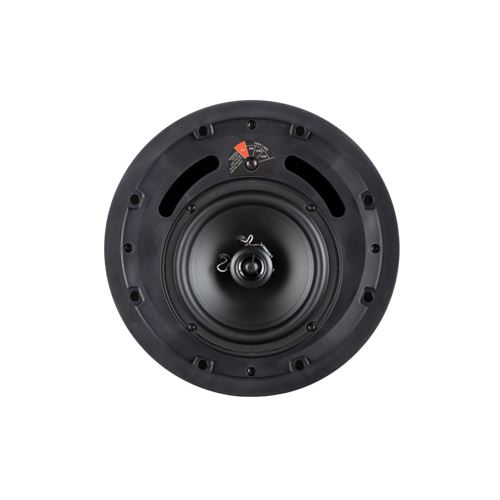

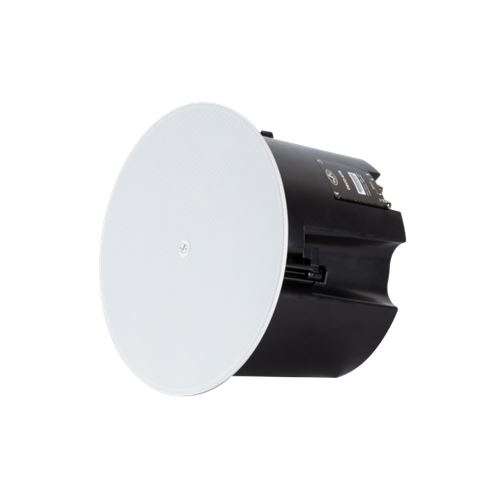

The DECO-6TB is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V in-line transformer with multi-pass selector accessible from the front and it is designed for both high and low impedance. It includes a high pressure injected thermoplastic back cover.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 95º |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | Tap0, Low Z. Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W. |
| Transformer Taps 100 V | Tap0, Low Z. Tap1, 5 W. Tap2, 10 W. Tap3 15 W. |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 |
| INTEGRAL-A404 | |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Geometry | Round |
| Color | White |
| Cut Out Diameter | 250 mm (9,9 in) |
| Depth | 185 mm (7,3 in) |
| Dimensions ( H x W x D ) | 275 x 275 x 185 mm |
| 11,0 x 11,0 x 7,3 in | |
| Net Weight | 1,9 kg ( 4,2 lb ) |
