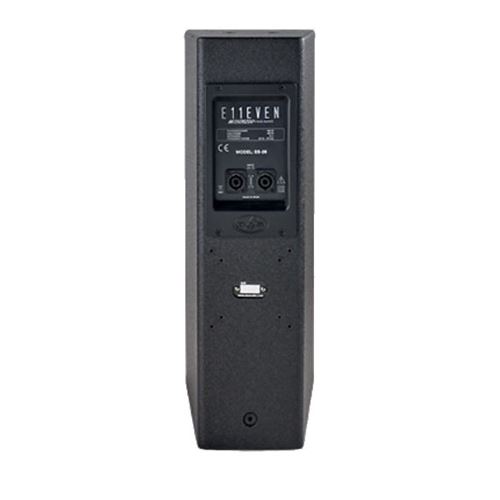

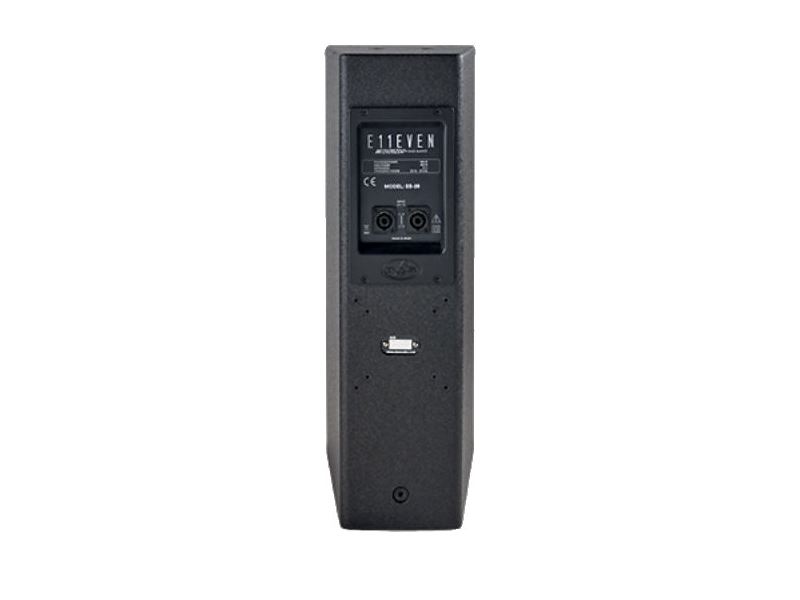

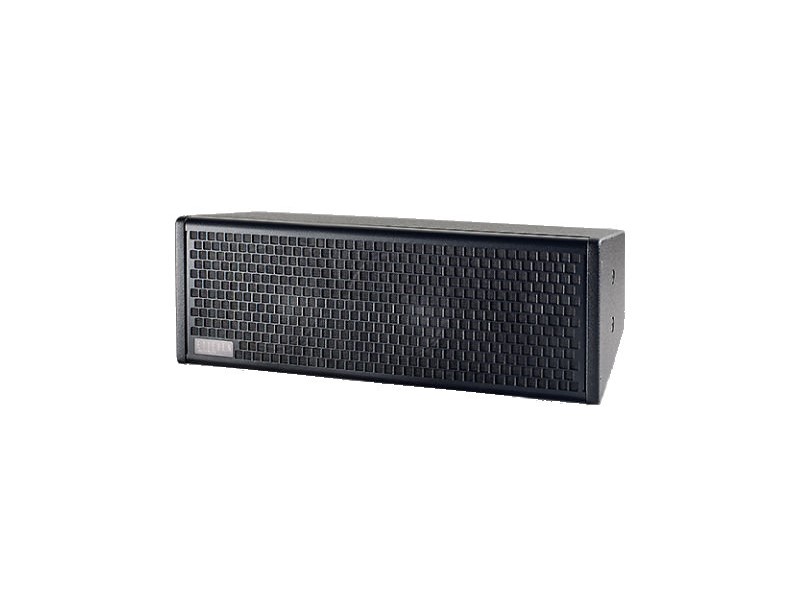

DAS ELEVEN SOUND Series 400 Watts RMS Dual 6" 2-Way Fullrange Loudspeaker

ES-26

DAS

Whatsapp for enquiry Email for enquiry






ES-26

2-Way Passive Point Source
1600W | 125dB |60 Hz-20 kHz | 80º x 80º

The ES-26 employs twin 6P (2” VC) woofers for low-mid frequency reproduction and an M-34 compression driver, which provides brilliant highs. The symmetrical horn (80º x 80º) offers precise coverage and control allowing the cabinets to be installed in the horizontal and vertical position.

The ES-26 is a compact system designed using top grade birch plywood and protected with an impact resistant ISO-flex paint. The front elements of the cabinet are protected using a solid metal grill assisted by an acoustically transparent fabric.



Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 80º
Vertical Coverage 80º
Nominal Impedance 16 ohms
RMS Power Handling 400 W
Maximum Peak SPL at 1m 125 dB

Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Net Weight 11 kg (24,3 lb)
Dimensions (H x W x D) 195 x 550 x 260 mm
7,7 x 21,7 x 10,2 in
