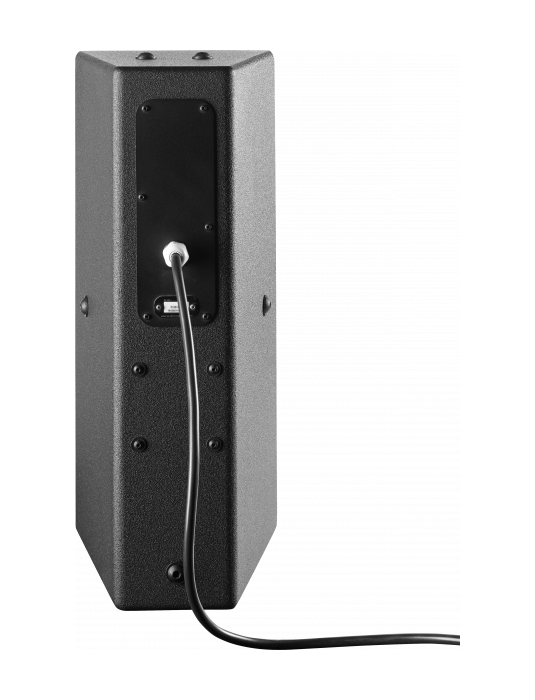

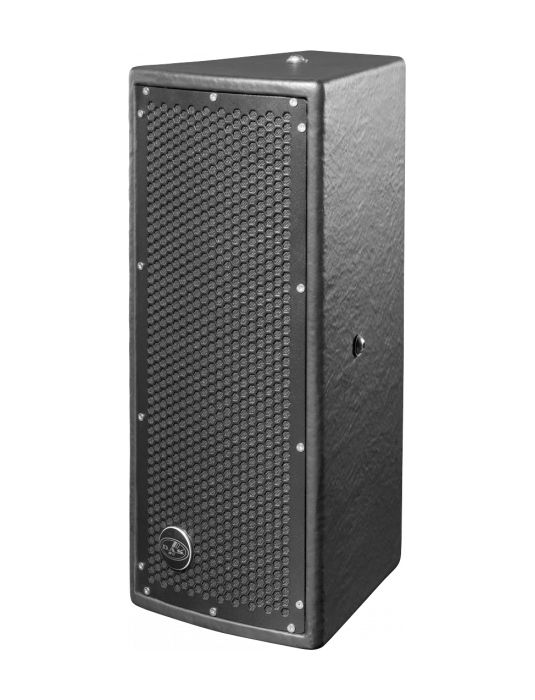

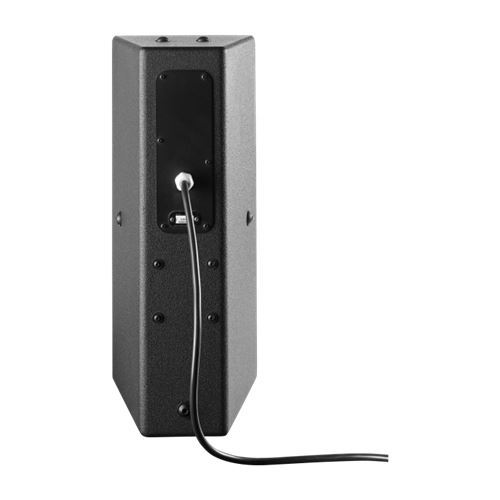

The WR-8826-DX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.
The WR-8826-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
| Performance | |
| Frequency Range (-10 dB) | 70 Hz – 22 kHz |
| Horizontal Coverage (-6 dB) | 80º |
| Vertical Coverage | 80º |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 200 W |
| Peak Power Handling | 800 W |
| On-axis Sensitivity 1W/1 m | 93 dB SPL |
| Maximum Peak SPL at 1 m | 122 dB |
| Recommended Amplifier | DX-80-230 |
| DX-80-115 | |
| Recommended Processor | DSP-2040 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP56 |
| Depth | 270 mm (10,6 in) |
| Dimensions ( H x W x D ) | 550 x 230 x 270 mm |
| 21,7 x 9,1 x 10,6 in | |
| Net Weight | 11,0 kg ( 24,5 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-1 |
| Horn/Waveguide | BC-88 |
