The WR-6412-DXG employs a 12AV woofer for low frequency reproduction. A M-75 compression driver with 3″ titanium diaphragm attached to a 60º x 40º rotatable horn provides exceptional high frequency reproduction. The rugged birch plywood cabinet construction is available in black, white or military grey depending on the finish.
The WR-6412-DXG offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 40º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 130 dB |
| Recommended Amplifier | DX-80-230 |
| DX-80-115 | |
| Recommended Processor | DSP-2040 |
| Connectors | |

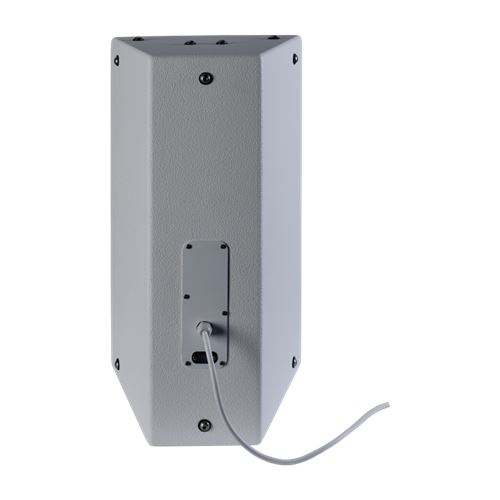

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| IP Rating | IP54 |
| Depth | 395 mm (15,6 in) |
| Dimensions ( H x W x D ) | 705 x 395 x 395 mm |
| 27,8 x 15,6 x 15,6 in | |
| Net Weight | 31,5 kg ( 69,5 lb ) |
| Components | |
| LF Driver | 12P |
| HF Driver | M-75 |
| Horn/Waveguide | BC-64AL |
