DAS EVENT Series 400 Watts RMS Dual 6" 2-Way Fullrange Compact Active Line Array Loudspeaker

EVENT-26A

DAS

Whatsapp for enquiry Email for enquiry






The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric «V» shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

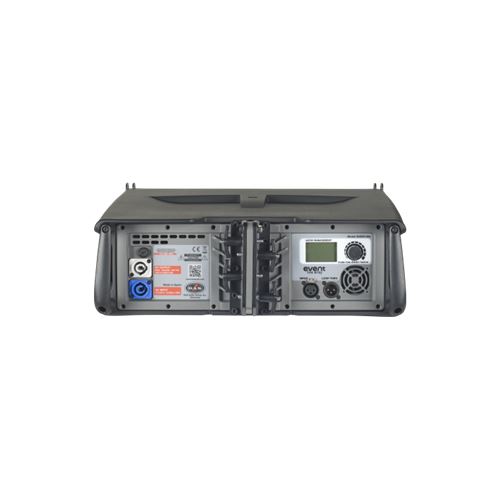

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.

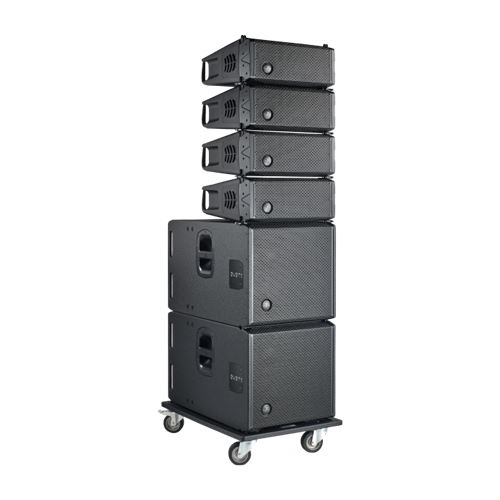

Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.


Performance
Frequency Range (-10 dB) 76 Hz – 19 kHz
Horizontal Coverage (-6 dB) 100º
Vertical Coverage Splay Dependent
Maximum Peak SPL at 1 m 131 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 400 W
Nominal Amplifier Power (peak) 800 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 6.2 V (+18 dBu)
Audio Signal Input Connector 1 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
AC Output Connector powerCON NAC3MPB
Current Draw 230 V / 115 V 0.8 A/1.6 A
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging Captive Rigging System
Color Black
Dimensions ( H x W x D ) 225 x 480 x 500 mm
8,9 x 18,9 x 19,1 in
Net Weight 16,5 kg ( 36,4 lb )
Components
LF Driver 6MI
HF Driver M-60
Shipping
Carton Dimensions ( H x W x D ) 565 x 565 x 290 mm
22,2 x 22,2 x 11,4 in
