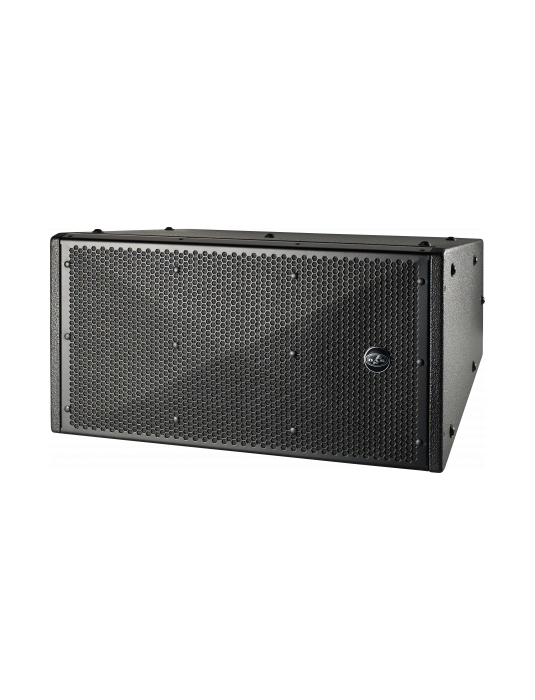

The DAS HQ-212.95 is designed for medium to large scale installations such as arenas, auditoriums, stadiums and theaters.

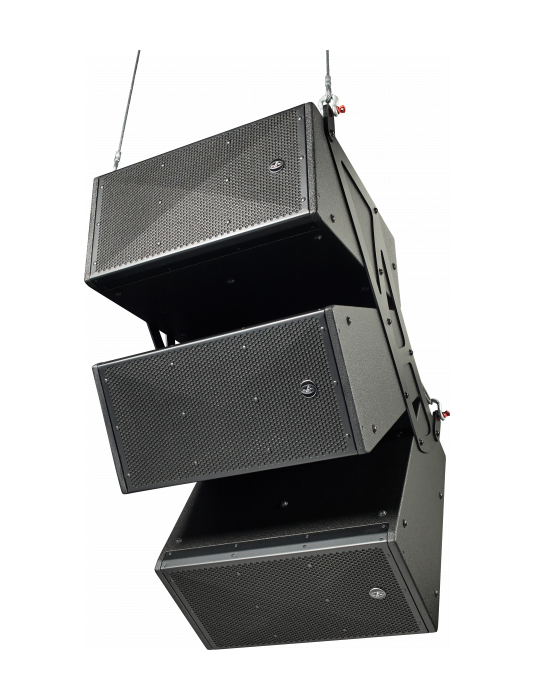

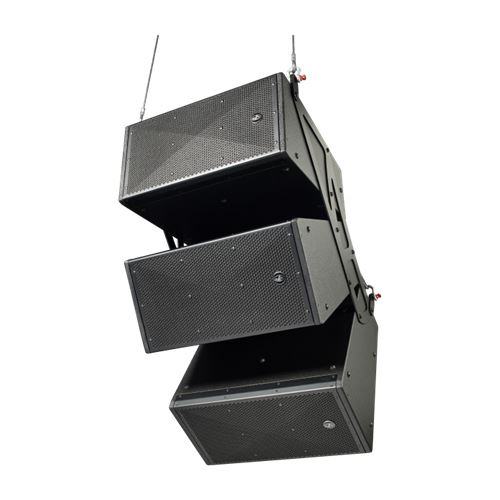

The HQ models offer tightly controlled coverage patterns and high output capabilities being usable individually, or in multiple unit arrays. The series enclosures incorporate cutting-edge interior and exterior coatings for weather resistance and extended durability in extreme environments.
| Performance | |
| Frequency Range (-10 dB) | 63 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 50º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| On-axis Sensitivity 1W/1 m | 105 dB |
| Maximum Peak SPL at 1 m | 140 dB |
| Recommended Amplifier | DX-100I-230 |
| DX-100I-115 | |
| DX-80I-230 | |
| DX-80I-115 | |
| Connectors | |

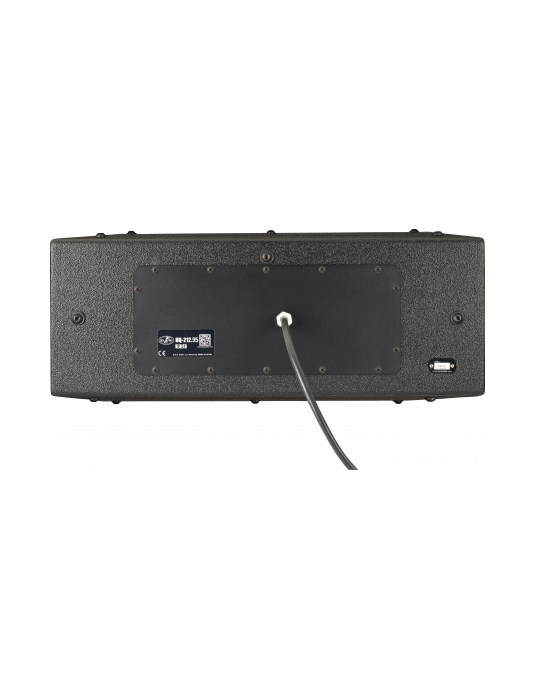

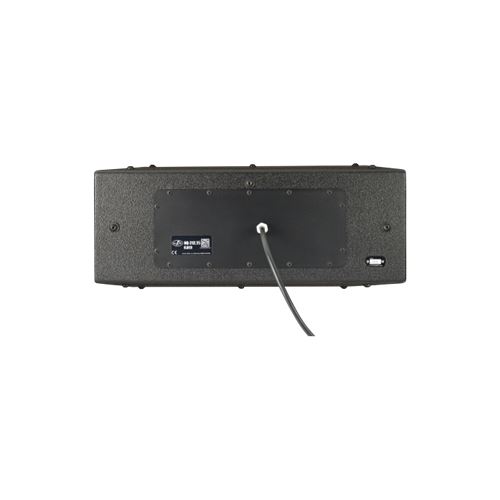

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |

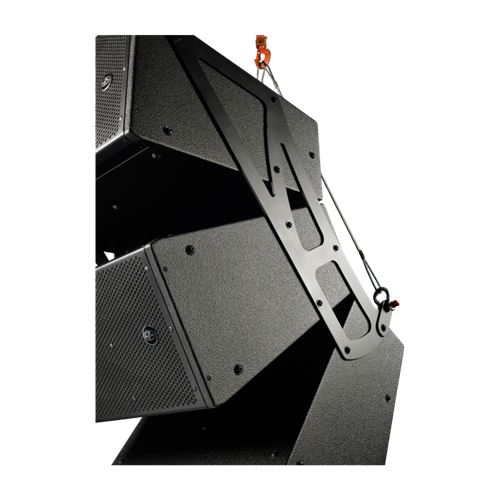

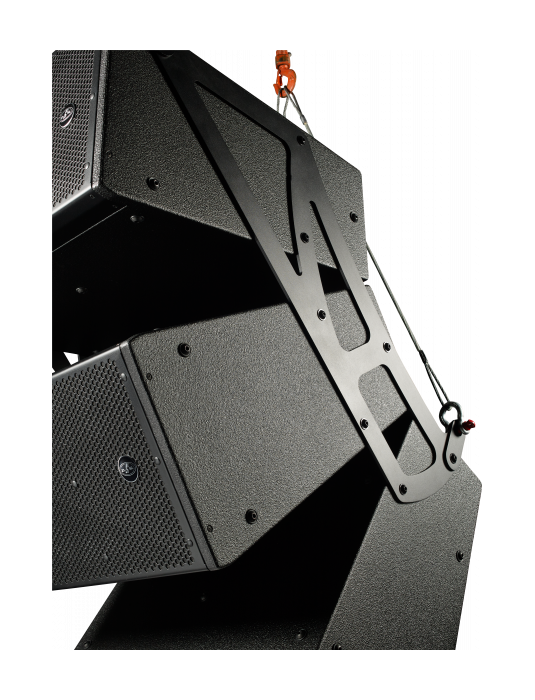

| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| Depth | 655 mm (25,7 in) |
| Dimensions ( H x W x D ) | 370 x 710 x 655 mm |
| 14,6 x 28,0 x 25,7 in | |
| Net Weight | 49,0 kg ( 85,9 lb ) |
| Components | |
| LF Driver | 12LQN4C |
| HF Driver | M-78N |
| Horn/Waveguide | BCH-9050-7037 |
