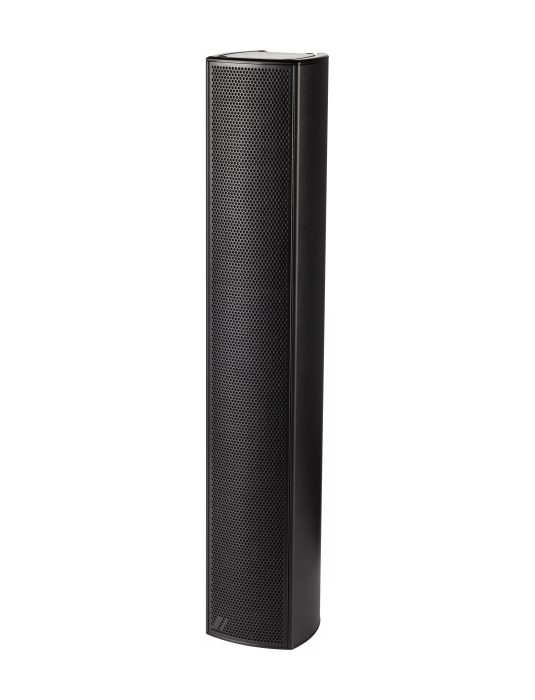

This system is designed for small- and mid-sized venues. The narrow vertical dispersion (20º) prevents exiting reverberation field, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.
The aluminum structure and the IP-66 kit make it a highly reliable and resistant choice, available in any RAL color.
| Performance | |
| Frequency Range (-10 dB) | 150 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 120º |
| Vertical Coverage | 20º |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 12.5 W – 25 W – 50 W |
| Transformer Taps 100 V | 25 W – 50 W – 100 W |
| RMS Power Handling | 160 W |
| Peak Power Handling | 640 W |
| On-axis Sensitivity 1W/1 m | 95 dB SPL |
| Maximum Peak SPL at 1 m | 123 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 |
| INTEGRAL-A404 | |
| INTEGRAL-A1002 | |
| INTEGRAL-A1004 | |
| INTEGRAL-A1602 | |
| INTEGRAL-A1604 | |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | Ceramic Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | Black |
| IP Rating | IP66 |
| Depth | 130 mm (5,1 in) |
| Dimensions ( H x W x D ) | 685 x 125 x 130 mm |
| 27,0 x 4,9 x 5,1 in | |
| Net Weight | 7,8 kg ( 17,2 lb ) |
