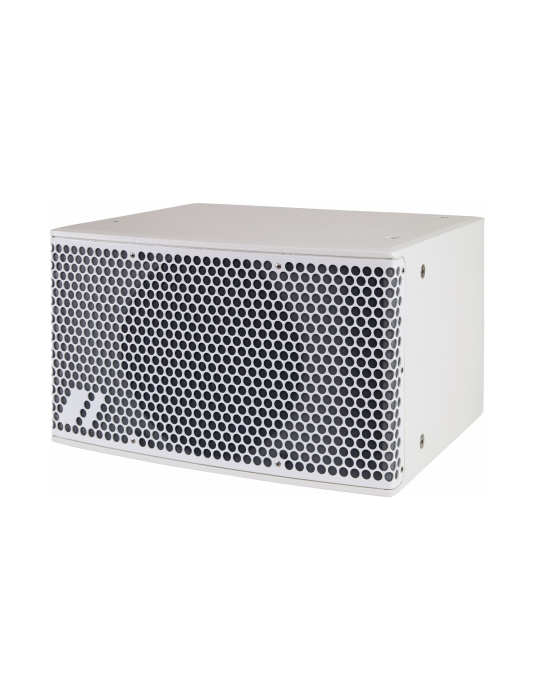

This ultra-compact, low-profile subwoofer is ideal for small and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.
The connector panel provides a high-pass filtered satellite output for the Q Series tops
| Performance | |
| Frequency Range (-10 dB) | 50 Hz – 200 Hz |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 200 W |
| Peak Power Handling | 800 W |
| On-axis Sensitivity 1W/1 m | 92 dB SPL |
| Maximum Peak SPL at 1 m | 118 dB |
| Recommended Amplifier | INTEGRAL-A402 |
| INTEGRAL-A404 | |
| INTEGRAL-A1002 | |
| INTEGRAL-A1004 | |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | White |
| Depth | 265 mm (10,5 in) |
| Dimensions ( H x W x D ) | 260 x 405 x 265 mm |
| 10,0 x 16,0 x 10,5 in | |
| Net Weight | 9,0 kg ( 19,8 lb ) |
