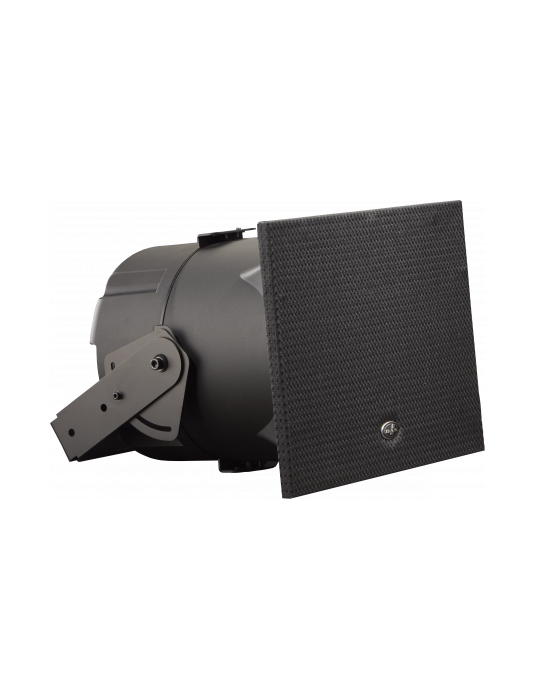

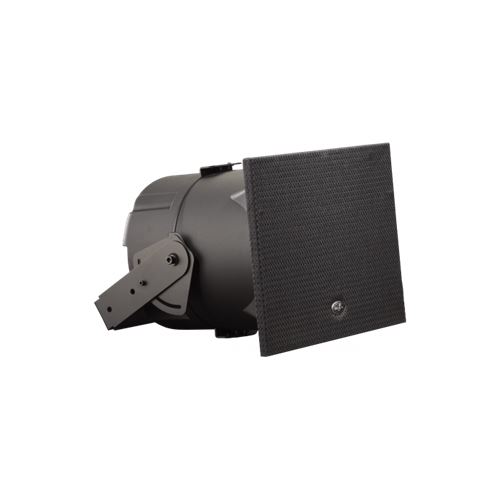

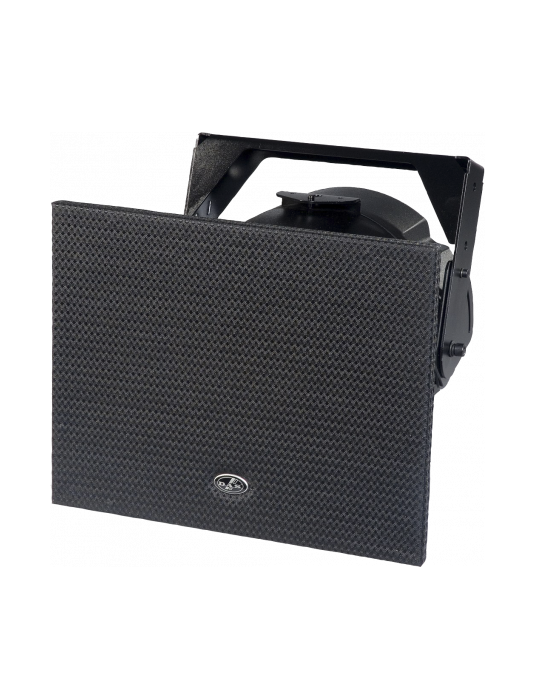

The BIDRIVER-PLUS-T is comprised of a coaxial loudspeaker which incorporates a 10″ cone transducer with a 4″ voice coil. The massive magnet structure and top plates provide efficient heat evacuation for low power compression. The high frequency unit incorporates a 4″ titanium diaphragm and voice coil assembly. The aluminum phase corrector guarantees coherent and linear frequency response.
The BIDRIVER-PLUS-T can be used successfully in applications requiring high intelligibility of the human voice and music reproduction not requiring bass reinforcement. The unit is capable of developing high sound pressure levels covering large distances with a clear and defined reproduction of the message. It is especially adequate for large open areas requiring a «long throw». The BIDRIVER-PLUS-T Plus T is equipped with a line transformer for distributed systems and is designed to comply with the IP54 standards for outdoor use.
Performance | |
Frequency Range (-10 dB) | 160 Hz – 12 kHz |
Horizontal Coverage (-6 dB) | 60º |
Vertical Coverage | 55º |
Nominal Impedance | 8 ohms |
Transformer Taps 70 V | 75 W |
Transformer Taps 100 V | 150 W |
RMS Power Handling | 300 W |
Peak Power Handling | 1200 W |
On-axis Sensitivity 1W/1 m | 104 dB SPL |
Recommended Amplifier | INTEGRAL-A1002 |
INTEGRAL-A1004 | |
Connectors | |
Audio Input Connector | Covered Barrier Strip Terminals |
Audio Output Connector | Covered Barrier Strip Terminals |
Enclosure | |
Enclosure Construction | Polyurethane |
Color | Black |
Depth | 405 mm (15,9 in) |
Dimensions ( H x W x D ) | 400 x 450 x 405 mm |
15,7 x 17,7 x 15,9 in | |
Net Weight | 17,7 kg ( 39,0 lb ) |
Components | |
LF Driver | CX-104 |
Horn/Waveguide | D-BID-6055 |
