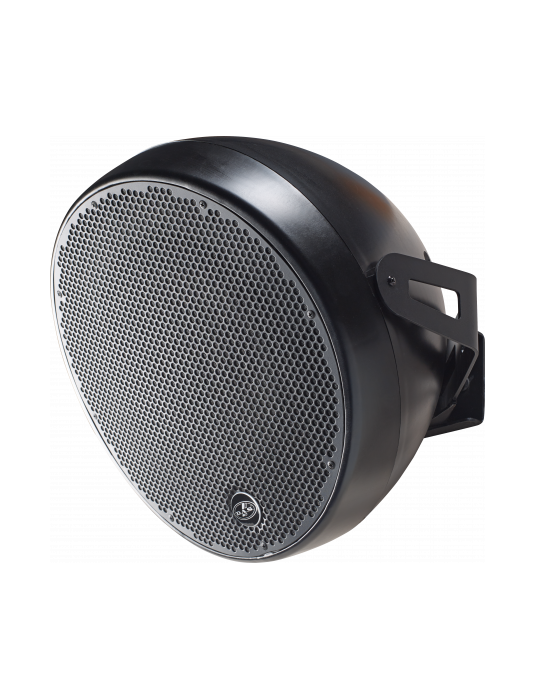

The Ovi-12 is a unique and versatile loudspeaker system. The Ovi-12, can be mounted on walls, placed in ceiling structures, or suspended as a pendant speaker. All with the clarity and power of a true two way loudspeaker system.
Comprising a 12» coaxial loudspeaker housed within a light weight polypropylene shell, the Ovi-12 can be used to deliver excellent speech intelligibility and full, rich music reproduction in spaces such as restaurants, night clubs, retail spaces, houses of worship, and convention facilities. A wide variety of accessories are available to facilitate installation.
«T» version with factory installed line transformer.
| Performance | |
| Frequency Range (-10 dB) | 63 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 90º |
| Nominal Impedance | 100 ohms |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 126 dB |
| Recommended Amplifier | INTEGRAL-A1002 |
| INTEGRAL-A1004 | |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Round |
| Color | Black |
| Depth | 290 mm (11,4 in) |
| Dimensions ( H x W x D ) | 500 x 505 x 290 mm |
| 19,7 x 19,9 x 11,4 in | |
| Net Weight | 10,5 kg ( 23,2 lb ) |
| Components | |
| LF Driver | 12MX |
| HF Driver | M-34 |
