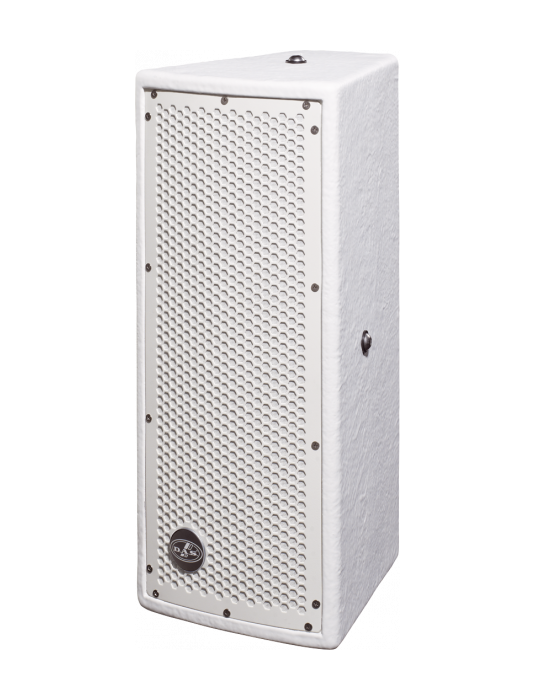

The WR-8826-TDXW employs twin 6B woofers for low frequency reproduction. A 1″ annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white.

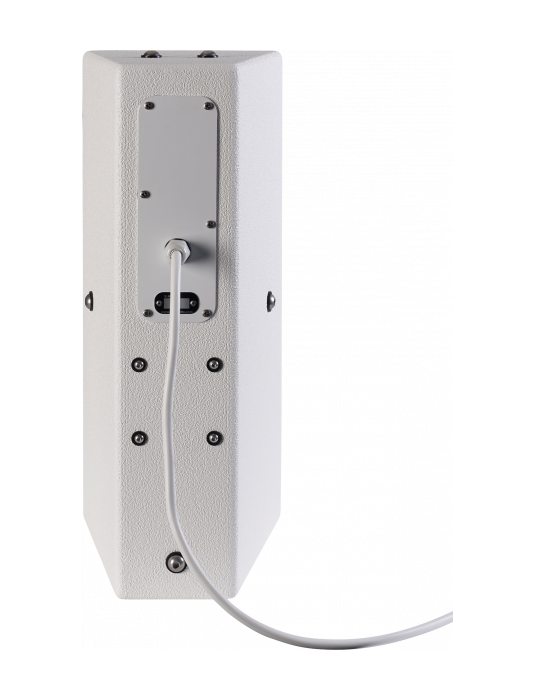

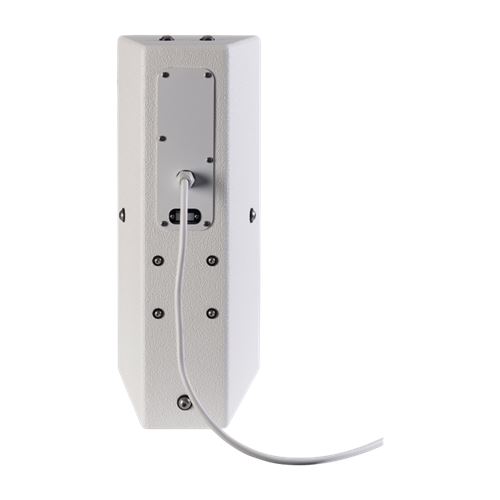

The WR-8826TDXW has been designed for the outdoor installation market. The WR-DX finish protects the cabinets from the elements thanks to a fiberglass exterior and ISO-flex interior protection augmenting their weather resistance when used in direct exposure situations. Stainless steel threaded rigging points and optional mounting hardware are available. The T-version is equipped with 50 W/100 V factory installed line transformer.
| Performance | |
| Frequency Range (-10 dB) | 76 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 80º |
| Vertical Coverage | 80º |
| Nominal Impedance | 133 ohms |
| Transformer Taps 70 V | 37 W |
| Transformer Taps 100 V | 75 W |
| RMS Power Handling | 75 W |
| Peak Power Handling | 300 W |
| On-axis Sensitivity 1W/1 m | 93 dB SPL |
| Maximum Peak SPL at 1 m | 118 dB |
| Recommended Amplifier | DX-80-230 |
| DX-80-115 | |
| Recommended Processor | DSP-2040 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP56 |
| Depth | 270 mm (10,6 in) |
| Dimensions ( H x W x D ) | 550 x 230 x 270 mm |
| 21,7 x 9,1 x 10,6 in | |
| Net Weight | 11,0 kg ( 24,5 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-1 |
| Horn/Waveguide | BC-88 |
