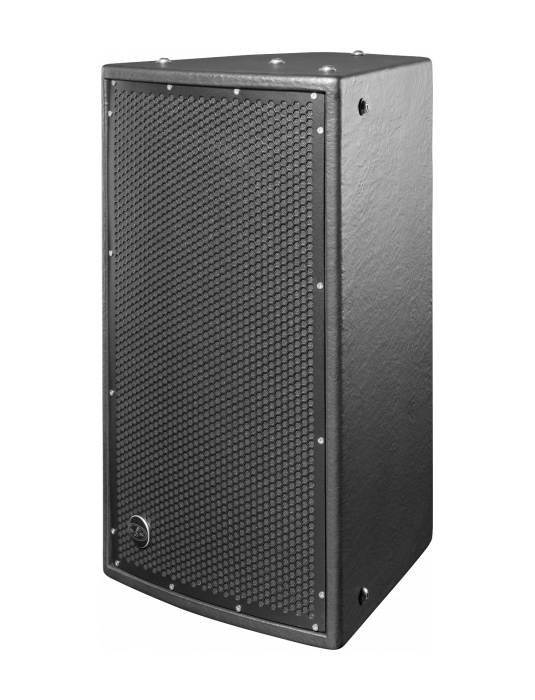

The WR (Weather Resistant) Series is expands with a compact subwoofer designed to provide extended range to the WR Series full-range cabinets. The WR-121SCX incorporates a 12 ″ 600 Wrms loudspeaker. The WR-121SCX offers identical enclosure dimensions to the WR-6412 for easy combination in tight packed arrays. Threaded rigging points and optional mounting hardware are available.
The WR-121S offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Performance | |
Frequency Range (-10 dB) | 50 Hz – 125 Hz |
Nominal Impedance | Passive: 4 ohms Biamp: 8 ohms |
RMS Power Handling | 600 W |
Peak Power Handling | 2400 W |
On-axis Sensitivity 1W/1 m | 96 dB SPL |
Maximum Peak SPL at 1 m | 130 dB |
Recommended Amplifier | PA-1500 |
Recommended Processor | DSP-226 |
Connectors | |
Audio Input Connector | Covered Barrier Strip Terminals |
Audio Output Connector | Covered Barrier Strip Terminals |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Rectangular |
Rigging | M10 Rigging Points |
Finish | ISO-flex Paint |
Color | Black |
IP Rating | IP54 |
Depth | 395 mm (15,6 in) |
Dimensions ( H x W x D ) | 705 x 395 x 395 mm |
27,8 x 15,6 x 15,6 in | |
Net Weight | 24,0 kg ( 52,9 lb ) |
Components | |
LF Driver | 12GX |
