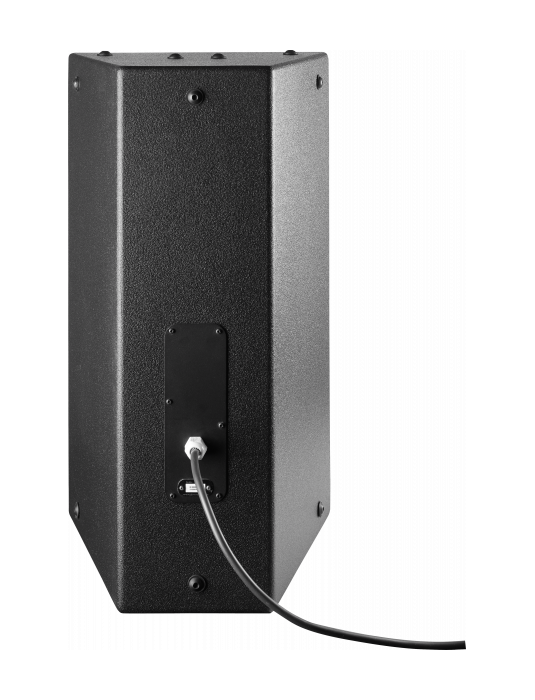

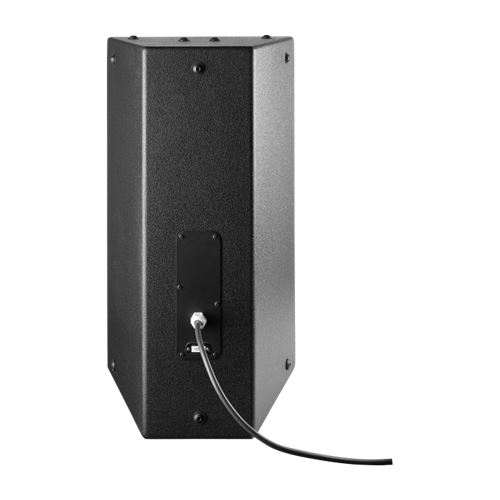

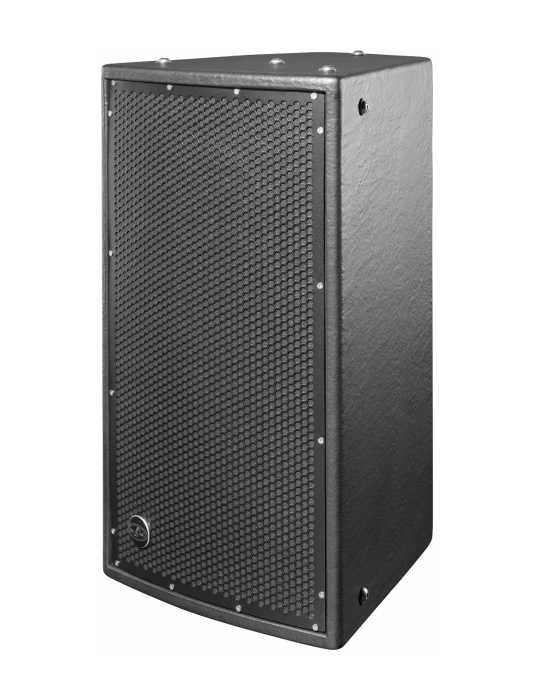

DAS WR Series 600 Watts RMS 12" Compact Arrayable Passive Subwoofer with Direct Exposure (Black)

WR-121S-DX

DAS

Whatsapp for enquiry Email for enquiry






The WR (Weather Resistant) Series is expands with a compact subwoofer designed to provide extended range to the WR Series full-range cabinets. The WR-121SCX incorporates a 12 ″ 600 Wrms loudspeaker. The WR-121SCX offers identical enclosure dimensions to the WR-6412 for easy combination in tight packed arrays. Threaded rigging points and optional mounting hardware are available.

The WR-121S offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.


Performance
Frequency Range (-10 dB) 50 Hz – 125 Hz
Nominal Impedance Passive: 4 ohms Biamp: 8 ohms
RMS Power Handling 600 W
Peak Power Handling 2400 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 130 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226
Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish Fiberglass
Color Black
IP Rating IP54
Depth 395 mm (15,6 in)
Dimensions ( H x W x D ) 705 x 395 x 395 mm
27,8 x 15,6 x 15,6 in
Net Weight 24,0 kg ( 52,9 lb )
Components
LF Driver 12GX
