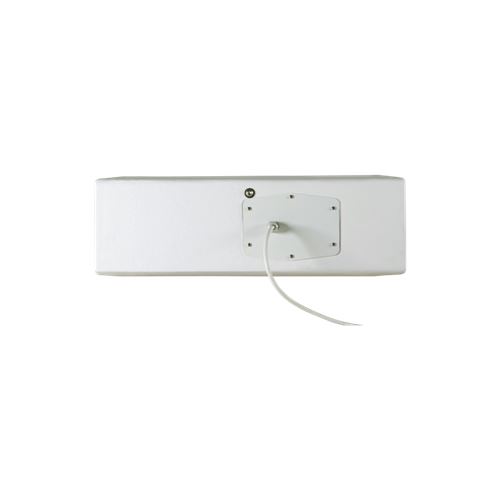

The WR-320-DXW has been designed for the outdoor installation market. The birch plywood cabinet construction offers a compact design which is available in white.
The DX finish protects the cabinets from the elements thanks to a fiberglass exterior augmenting their weather resistance when used in direct exposure situations.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | Splay Dependent |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 132 dB |
| Recommended Amplifier | DX-80-230 |
| DX-80-115 | |
| Recommended Processor | DSP-2040 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Attachable Rigging System |
| Finish | Fiberglass |
| Color | White |
| IP Rating | IP55 |
| Depth | 365 mm (14,4 in) |
| Dimensions ( H x W x D ) | 270 x 700 x 365 mm |
| 10,6 x 27,6 x 14,4 in | |
| Net Weight | 32,5 kg ( 71,6 lb ) |
| Components | |
| LF Driver | 10MI |
| HF Driver | M-75N |
| Horn/Waveguide | BPS-90AR |
