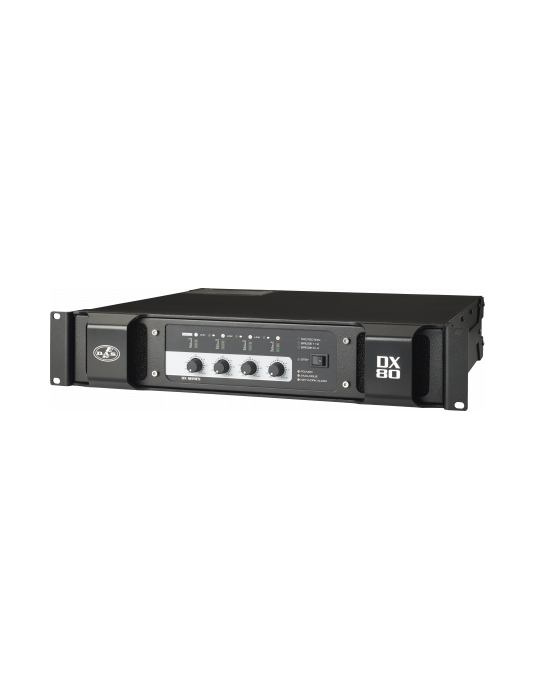

The DX-80 is a four channel amplifier offering 2000 W per channel at 4 ohms. It combines the impressive audio power and performance with ultra-flexible connectivity for both remote control and audio.
Accepting analogue, or optional Dante networked audio, this extra connectivity means that the DX Series non-DSP models can also be used in installation systems which already have a centralized DSP core but require the flexibility of being able to pick up multiple channels of audio from a network.
Output Power Ratings | |
Power 8 Ohms, Both Channels Driven | 4 x 1000 W |
Power 8 Ohms Bridged | 4000 W |
Power 4 Ohms, Both Channels Driven | 4 x 2000 W |
Power 4 Ohms, Bridged | 4000 W |
Electronics and Connectors | |
Amplifier Channels | 4 |
Output Circuitry | Class D |
Frequency Response | 0.5 dB (20 Hz – 20 kHz) |
Total Harmonic Distortion | < 0,2 % |
Input Impeadance | 20 kohms |
Voltage gain | 32 dB |
Damping Factor | > 400 |
Controls | Power On/Off, Gain Pots |
Cooling | Front-to-Back |
Amplifier Protections | Protection Present , Short Circuit, DC Output, Temperature |
LED Indicators | Power On, Channel Output Level, Channel Linked, Protection, Bridged Pairs, Standby, Analogue Audio, Network Audio |

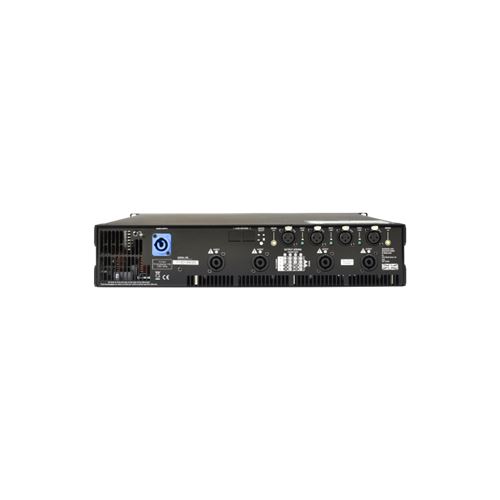

Audio Signal Input Connector | 4 x Female XLR |
Speaker Output Connector | 4 x speakON |
Current Draw 230 V / 115 V | 4.1 A / 8.2 A |
Certification Number | NRTL: NA201810857, CNEMKO: NA201810857 |
Dimensions-Weight | |
Dimensions ( H x W x D ) | 88 x 485 x 425 mm |
3,5 x 19,0 x 16,7 in | |
Net Weight | 10,1 kg ( 24,3 lb ) |
