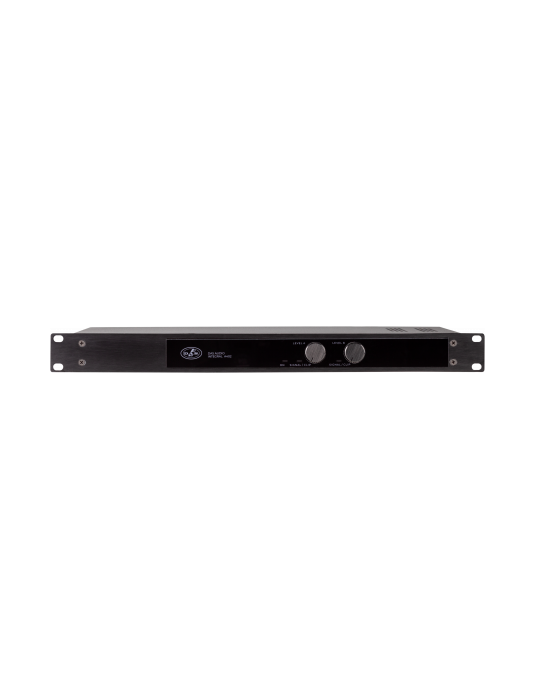

INTEGRAL-A402 is a dual channel, 1U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.
The amplifier delivers 2x200W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 400W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.
The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.
| Output Power Ratings | |
| Power 8 Ohms, Both Channels Driven | 2 x 100 W |
| Power 8 Ohms Bridged | 1 x 400 W |
| Power 4 Ohms, Both Channels Driven | 2 x 200 W |
| Power 100 V | 1 x 400 W |
| Power 70 V | 1 x 400 W |
| Electronics and Connectors | |
| Amplifier Channels | 2 |
| Output Circuitry | Class D |
| Frequency Response | 20 Hz-30 kHz (+0 – 0.5 dB) |
| Sensitivity | 1.38 V (5 dBu) |
| Voltage gain | 30 dB |
| Damping Factor | > 1000 (8 Ω load, 1 kHz and below) |
| Controls | Power On/Off, Gain Pots |
| Cooling | Side-Right-to-Left |
| Amplifier Protections | Short Circuit, DC Output, Temperature, Over/Under Voltage |
| LED Indicators | On-Protect-Standby, Signal-Clip |
| Audio Signal Input Connector | Terminal Block |
| Speaker Output Connector | Terminal Block |
| Current Draw 230 V / 115 V | 1.5 A / 3.0 A |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 44 x 483 x 208 mm |
| 1,7 x 19,0 x 8,2 in | |
| Net Weight | 2,7 kg ( 5,9 lb ) |
