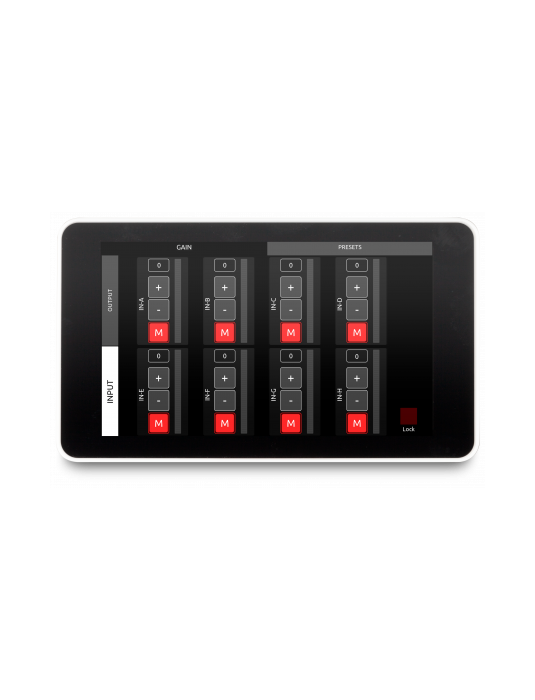

INTEGRAL-WP3 is a 7” touch screen powered via ethernet (PoE) used to manage and control certain parameters of the digital processors included in INTEGRAL-M88 and INTEGRAL-MA1004, MA1604 products. The panel offers quick access to input and output channels, preset recall, and meter monitoring. The user can easily mute channels or vary input/output gains.
The INTEGRAL-WP3 is ideal for fixed installations with various areas/zones where each space needs its control. The Ethernet connectivity permits allocating the devices up to 100m away from the main racks.
The INTEGRAL-WP3 automatically launches (when connected) TouchOSC application to control the M and MA devices.
| Electronics | |
| Connectivity Power | IEEE PoE 802.3af via LAN port |
| Resolution | 800 x 480 px |
| Viewable Screen Dimensions | 155 x 86 mm (6.1 x 3.4in) |
| Technology | Capacitive Touch Screen |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 115 x 197 x 59 mm |
| 4,5 x 7,8 x 2,3 in | |
| Net Weight | 0,5 kg ( 1,1 lb ) |
