Features Included Accessories
Maximum Output (1KHz, 4Ω, THD2%) | 450W + 450W/4Ω |
Total Harmonic Distortion | 0.1% (1KHz, 430W, 4Ω) |
Input Jacks (Sensitivity/Impedance) | |
Mic (1, 2, 3, 4, 5) | 14mV/5kΩ |
VOD, DVD, TAPE | 230mV/23kΩ |

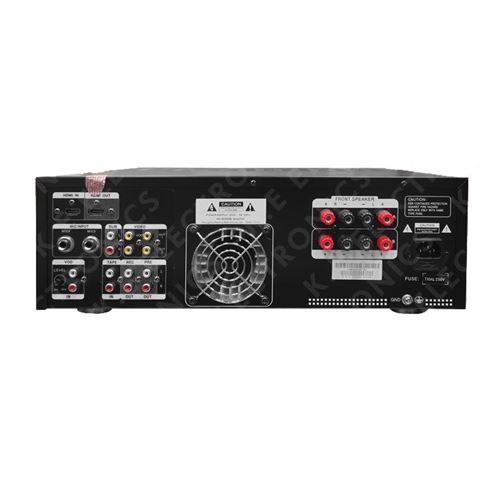

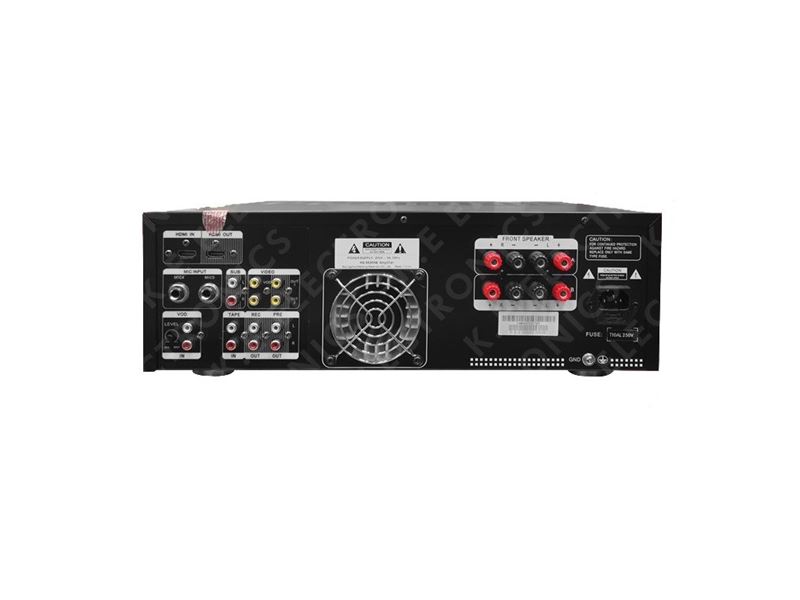

Output Jacks (Output Level/Output Impedance) | |
PRE OUT | 1500mV/150Ω |
TAPE OUT | 200mV/470Ω |
Frequency Respond | |
MIC | 40Hz to 12KHz, -1/+2dB |
MUSIC | 20Hz to 20KHz |
Tone Control Characteristics | |
Music BASS | ±10dB (100KHz) |
MID | ±10dB (1KHz) |
TREBLE | ±10dB (10KHz) |
Microphone Bass | ±7dB (100KHz) |
MID | ±7dB (1KHz) |
TREBLE | ±7dB (10KHz) |
Supply Voltage | AC240V 50Hz |
Power Consumption | 500W |
Dimensions (W x H x D) | 430mm x 148mm x 420mm |
Mass | 15.2kg |
