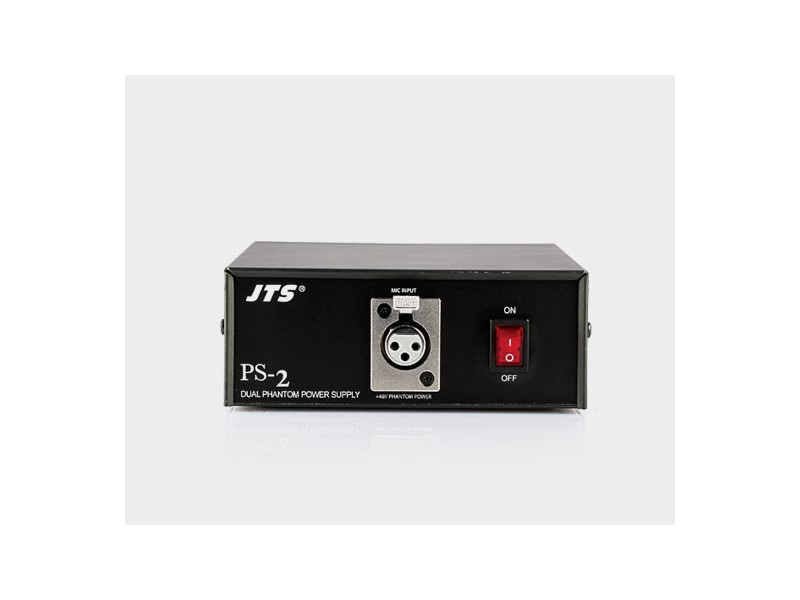

48V Phantom Power Supply. Provides constant 48V power for condenser microphones when
phantom power is not available on the mixer or for field recording direct to tape, hard disk computer based on DAW. The PS-2 is a dual input version of PS-1.| PS-2 | |
| Number of Channels | 2 |
| Regulated Output Voltage | 48V ±2V DC |
| Short Circuit Output Current | 14 mA |
| Signal To Noise Ratio | 105 dB |
| Frequency Response | 10~22,000 Hz |
| AC Input | 110/220V AC, 50-60 Hz, 3W max |
| Input Connector | 3-pin XLR Female |
| Output Connector | 3-pin XLR Male |
| Dimensions (mm) | 143.6mm(W)* 55.9mm(H)* 184.7mm(D) |
