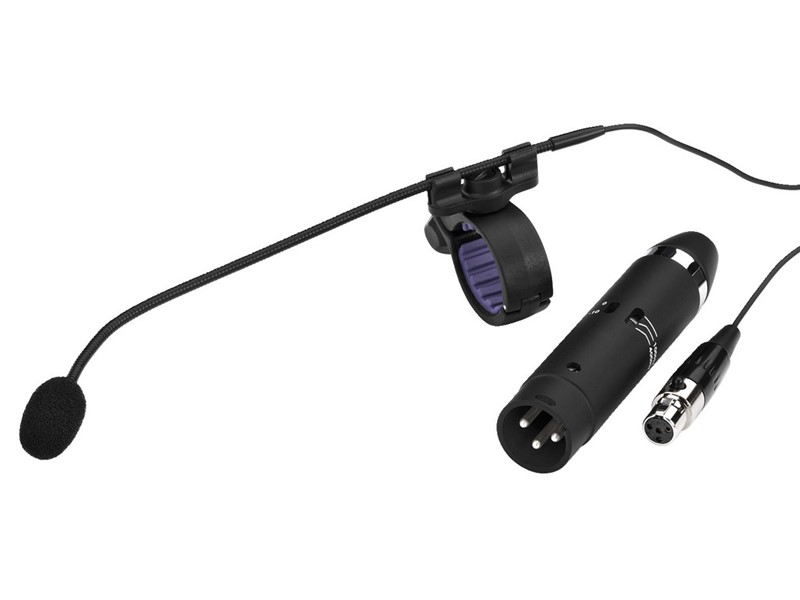

The CX-500F is built with full range omni directional capsule with golden plating in and outside. The flat frequency response reproduces all types of flutes. The Dynamic design of mic holder can firmly mount CX-500F to flutes with different sizes while the dual injection design prevent the flute from scratch. The flexible mini gooseneck renders a desirable miking position while minimizes air stream noises and blasts.
* Omni directional pick up pattern
* Flat frequency response
* Versatile mount clip
* Terminated with 4 pin mini XLR for easy wireless application
* Phantom power module with low cut and pad provided for wired application
| CX-500F | |
| Type | Omni-directional Condenser |
| Frequency Response | 20~20,000 Hz |
| Sensitivity (at 1,000Hz) | -58±3dB*(1.25mV)*0dB=1V/μbar |
| Impedance | 1.5kΩ |
| Max.SPL for 1% T.H.D. | 130 dB |
| Signal-To-Noise Ratio | 68 dB |
| Output Connector | 4P Mini XLR |
| Power Supply | 1-5 VDC |
| Current Consumption | ≤0.5mA |
| Weight | 8 grams (including cable) |
| Dimensions(mm) | Ø6mm(W)*171mm(H) |
| MA-500 | |
| MIC Input | 4P Mini XLR(Male) |
| Output. | XLR(Male) |
| Phantom Power | 12~48V |
| PAD | -10dB |
| Low Cut | 100Hz -6dB
400Hz -4dB |
| Frequency Response | 30~20,000 Hz |
| Impedance | 220Ω |
| T.H.D. | <0.045%@1KHz -50dB |
| S/N. | >95 dB |
| Weight | 40 grams |
| Dimensions(mm) | Ø20mm*84.5mm(H) |
