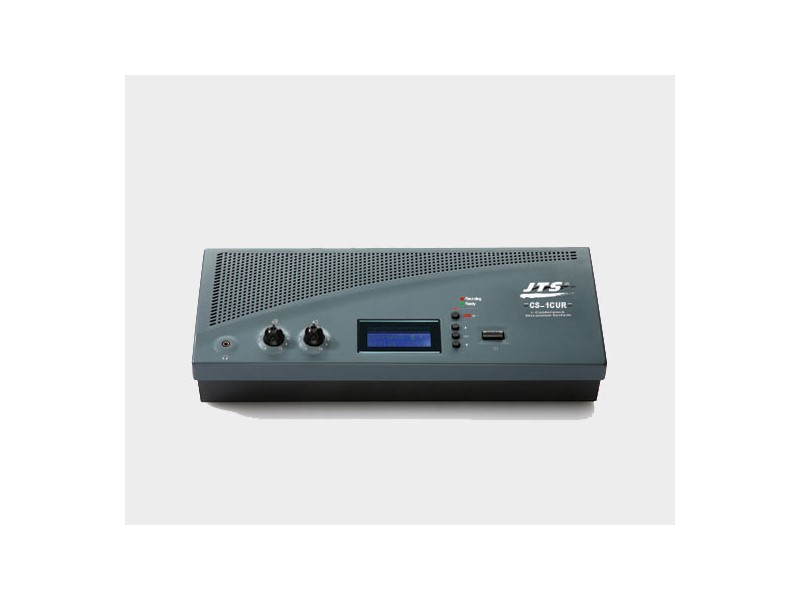

CS-1CUR is designed with a USB recorder. The file format is MP3. One 32G USB memory stick can record over 150 hours. One hot key recording makes the job easy.
| CS-1CUR | |
| Input | |
| Type | XLR |
| Mic | 4.7KΩ |
| Line | 20KΩ |
| Recording Function | |
| Interface | USB3.0 32GByte (Backward Compatible) |
| Format | MP3 |
| MAX. Recording Time | More than 240 hours (With 32GByte USB) |
| Controls | Recording ON/OFF button / Recording status LED display / Without Playback Funciton |
| MAX Gain | > 70dB |
| Frequency Respond | 35 ~ 20,000Hz |
| THD% Input | <0.06% |
| Signal-to-noise radio | > 70 dB |
| Input Attenuation | -50dB |
| Phantom Power | +48V |
| Mic In Attenuation | -5dB /-10dB |
| Mic Attenuation | -10dB /-15dB /-20dB |
| Output Attenuation | -50dB |
| Voltage Output | +5 VDC ± 0.2V |
| Power Supply | 18VDC, 1A |
| Power Consumption | 18W |
| Fuse | T1AE 250V (Slow-Blow) |
| Weight | 2.3 kg |
| Dimension (mm) | 420(W) * 44(H) * 198.5(D) |
