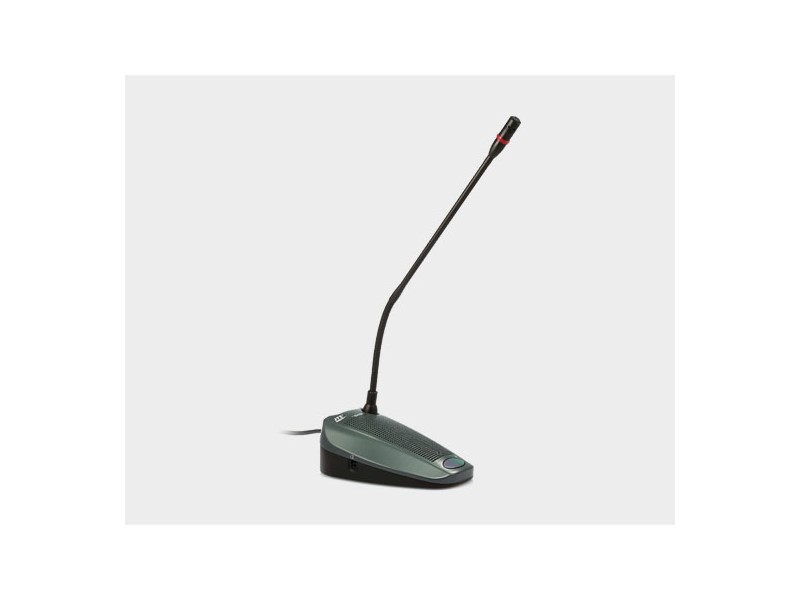

JTS CS-1 Series Chairman Unit

CS-1CH

JTS

Whatsapp for enquiry Email for enquiry






The chairman unit not only provides the same function as the delegate unit, but also supports the addition of a “Priority button”, that enables the chairman to control the discussion by temporary or permanently overriding and deactivating all active microphones of the delegate units.


CS-1CH
Headphone output
Output level -8dBV / +2 dBV (nominal / maximum)
Output Impedance 22Ω
Gooseneck Microphone
Type Back Electret Condenser
Frequency Response 50 ~ 18,000Hz
Polar Pattern Cardioid
Max. SPL for 1% THD 125dB
Gooseneck Length 12” (305mm)
Dimensions (HxWxD) without mic 170*115*65 mm
Length of mic 400 mm
Weight 1095 grams
