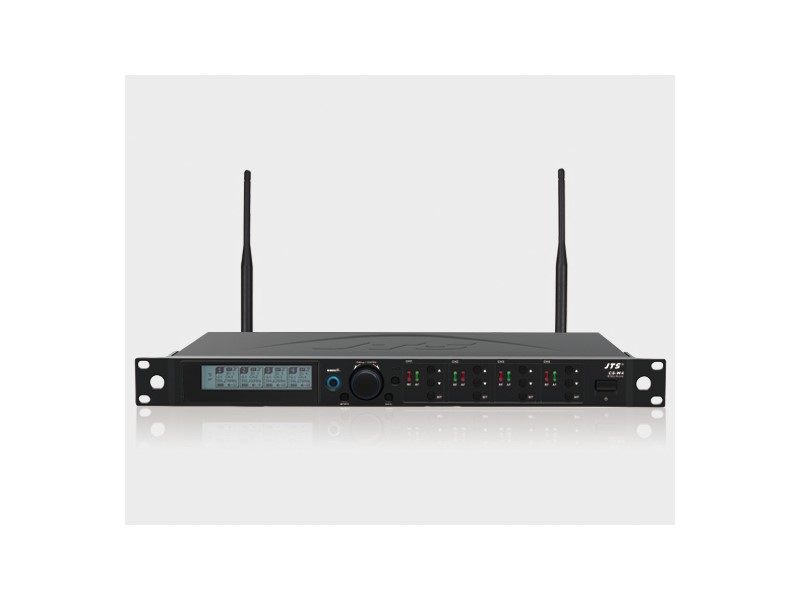

CS-W4C is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit. It overrides other microphones. Logic setting of one CS-W4C receivers can be cascaded. A microphone with priority in one receiver will also have priority in a cascaded system. JTS patented REMOSET synchronizes all four microphones simultaneously by push one button. The microphone is of 108 MHz bandwidth. This feature allows more attendants to join the conference.
| CS-W4C(T) | |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz / 502.000 - 694.000 MHz (T band) |
| Frequency Setting | 2.4G RF REMOSET |
| Channel | 4 |
| Bandwidth | 36MHz |
| S/N Ratio | >105dB(A) |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm, S/N>80dB |
| CMRR | >80 dB |
| Audio Frequency Response | 80Hz~16KHz±2dB |
| Antenna Connector | BNC (Female) |
| Antenna Booster Power | DC12V/100mA |
| Display | LCD+LED |
| Controls | Power ON/OFF, Group, Channel, Frequency, Sensitivity, Key Lock, Volume, Output
Attenuation(XLR), Frequency Scan(ON/OFF), Antenna Power, Display Setting, Language, Remoset ID Number, Reoset Setting, Priority Setting |
| Audio Output Level | Ref: ±22.5KHz Dev@1KHz Tone
Ø6.3 Phone Jack: -10dBV XLR Jack: -4dBV(Line), -24dBV(MIC) |
| Audio Output Level | 600Ω |
| Squelch | Pilot Tone & Noise Mute |

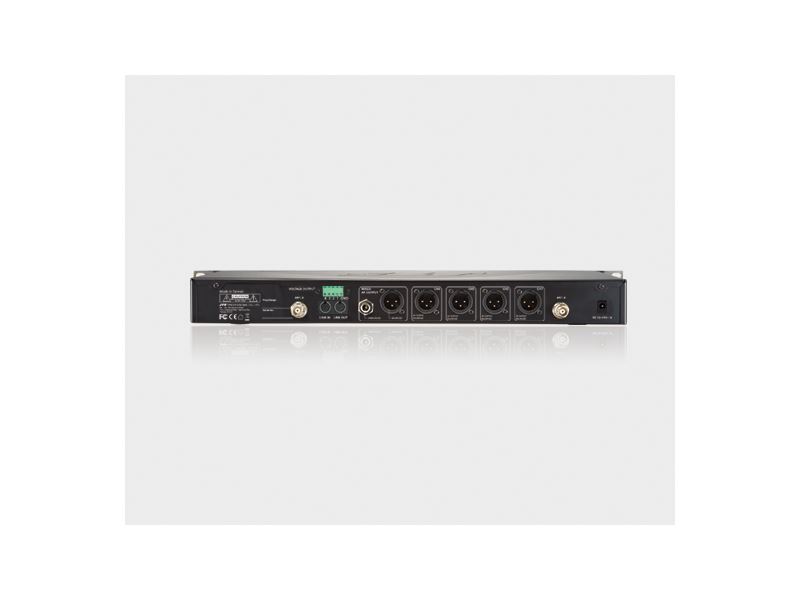

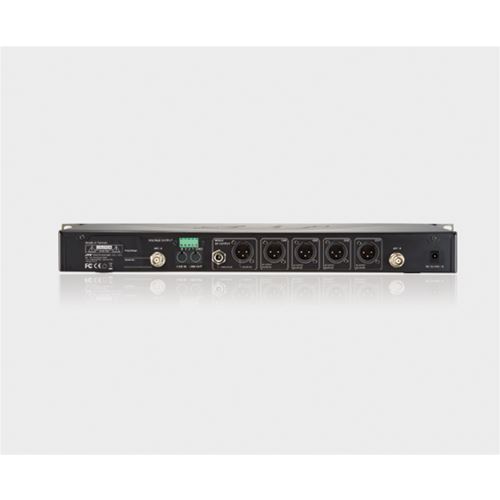

| Output Socket | XLR Balanced Socket x5, φ6.3mm Unbalanced x1 |
| Automixer Control | 8PIN MINI DIN Input, 8 PIN MINI DIN Output |
| Power Supply | DC12~15V/1A |
| Dimension(mm) | 485(W) x 45(H) x 260(D) |
| Note | Actual Product specifications may vary depending on model and region |
