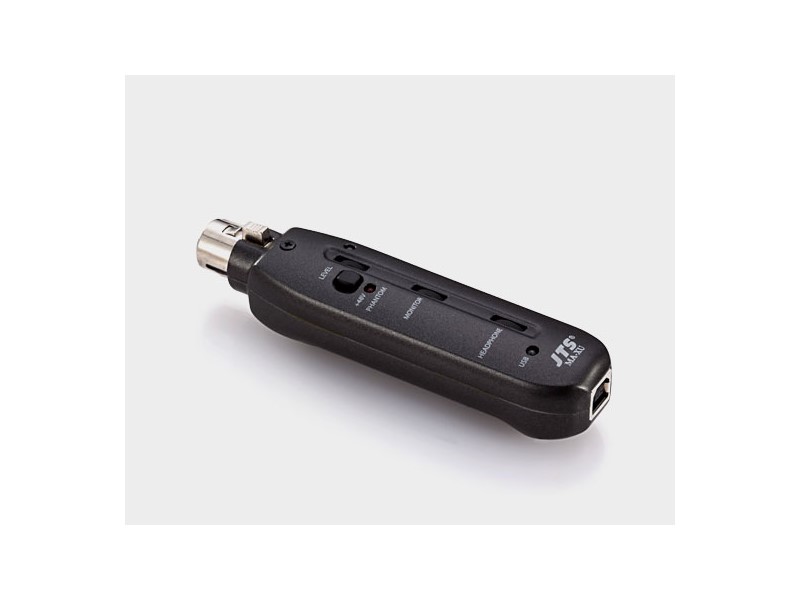

This XLR-to-USB adaptor can use all your dynamic or condenser microphones to digital record. Switchable phantom power is provided. The MA-XU features built in headphone monitoring with easy control of the balance between microphone and playback audio. The advanced technology renders the product latency free.


MA-XU
Input XLR
Input Impedance 10KΩ
Input Gain Range 35dB
USB connector Digital audio interface
Headphone Jack 3.5mm
Output:50mW (16Ω)
Indicator USB           Blue
Phantom   RED
Peak Level
Green:Signal,Red,Peak
Phantom Power 48V±2V,15mA
Frequency Response 25~20000Hz
Power consumption 2.2W
Dimension (mm) 117*31*28mm
Weight 95g
