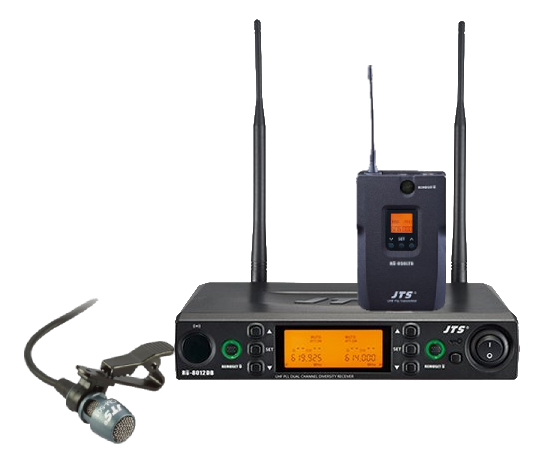

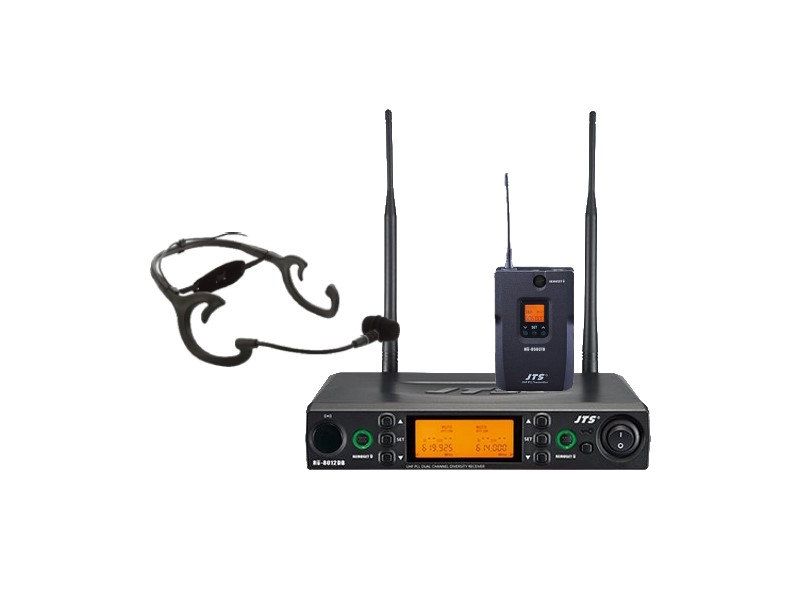

Base on the successful experience of US-8002DB, the RU-8012DB is designed with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.
| RU-8012DB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| Frequency Setting | Ultrasonic / REMOSET (Transmit) |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | >105dB(A) |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm,S/N>80dB |
| Rejection Ratio | >80 dB |
| Frequency Response | 50Hz~16KHz±2dB |
| Antenna Type | BNC Socket |
| Antenna Booster Power | DC12~15V/100mA |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter,
RF Meter, Frequency Scan, Audio Level, Volume |
| Controls | Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
Attenuaiton(XLR), Frequency Scan(ON/OFF) |
| Audio Output Level | Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC) |
| Audio Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |
| Output Connector | 2 independent balanced XLR and 2 Ø6.3mm unbalanced. |
| Power Supply | DC12~15V/500mA |
| Dimension (mm) | 212.3mm(W)* 38.3mm(H)* 144mm(D) |

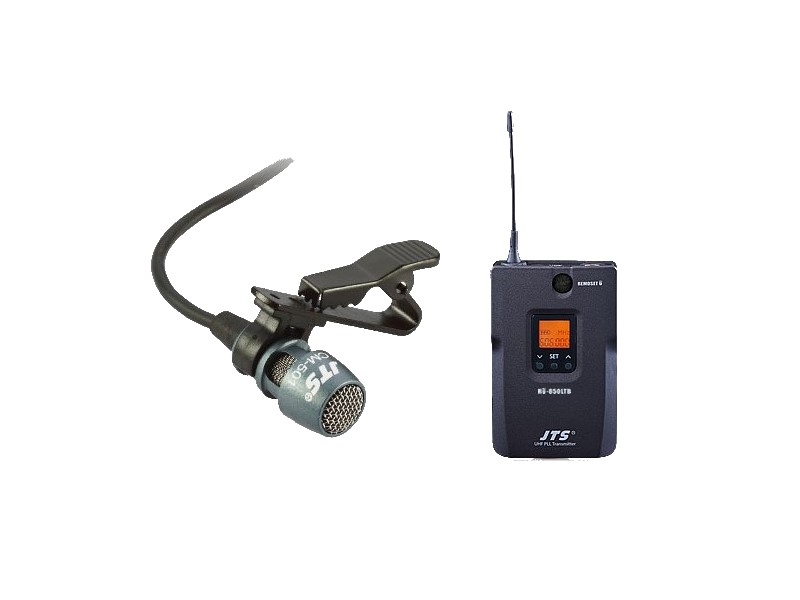

| RU-850LTB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960MHz |
| Frequency Setting | REMOSET U(Receive) |
| RF Outpus | Low / High |
| Stability | <±10KHz@Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Function | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LCD+LED |
| Input Connector | 4P Mini XR |
| Controls | Power, Mute, Group, Channel,
Frequency, Gain Adjust, Auto Power Off, Key Lock |
| Battery | UM3, AA x2 |

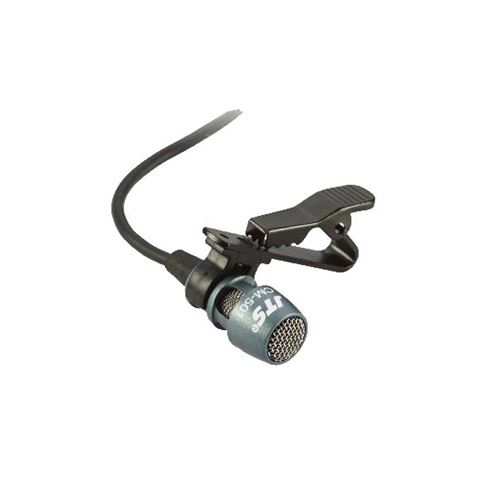

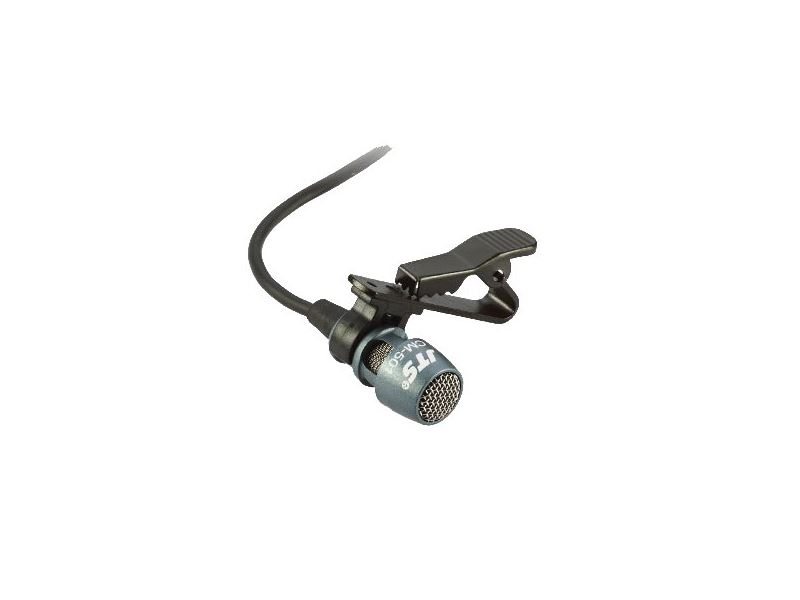

| CM-501 | |
| Connector | 4P Mini XLR |
| Frequency Response | 100~15,000 Hz |
| Polar Pattern | Cardioid |
| Sensitivity (at 1KHz) | -60±3 dB* (1mV)*0dB=1V/μbar |
| Impedance | 2.2kΩ |
| Max. SPL for 1% THD | 130dB |
| Dimension(mm) | Ø10.1mm(W)* 26.4mm(H) |
| Net Weight | 21.5g |
