RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.
* RU-901G3 is for medium and large venue| RU-901G3 |
|
Frequency Preparation |
PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Frequency Setting | Remoset U Ultrasonic |
| Receiving Mode | True Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | > 105dB |
| T.H.D | <0.6% @ 1KHz |
| Sensitivity | -95dBm, S/N>80dB |
| CMRR | >80 dB |
| Audio Frequency Response | 50Hz~18KHz±2dB |
| Antenna | BNC (F) |
| Antenna Bosster Power | DC12~15V/100mA |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR) |
| Controls | Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF) |
| Audio Output Level | Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC) |
| AF Output Impedance | 600Ω |
| Squelch | Pilot Tone & Noise Mute |

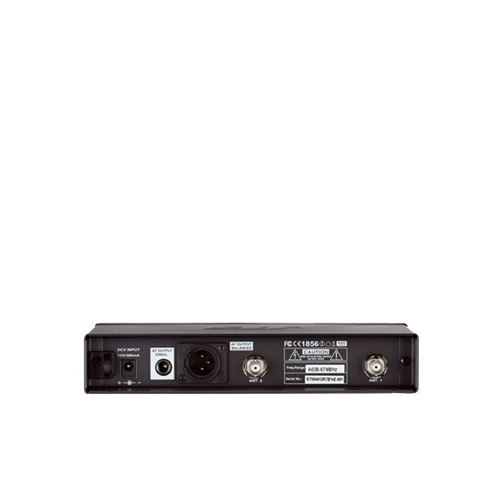

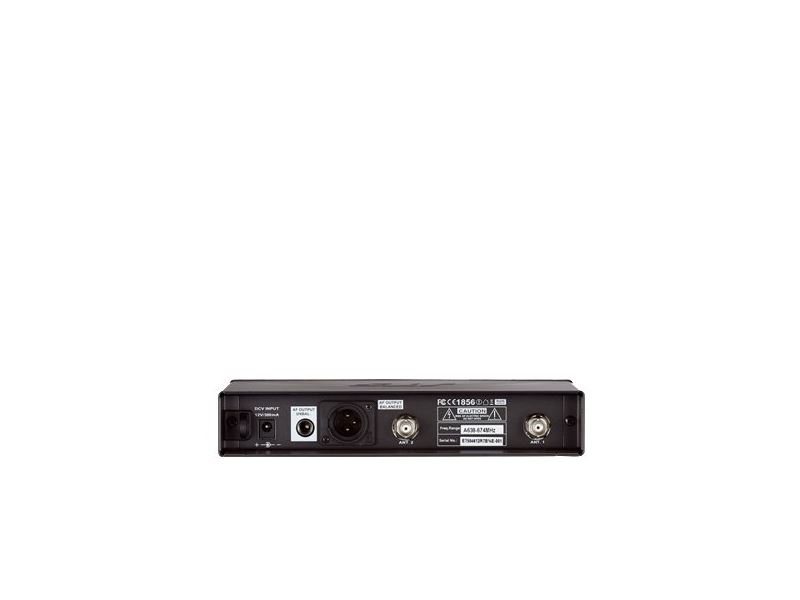

| Output Connector | Balanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1 |
| Power Supply | DC12~15V/500mA |
| Dimension (m / m) | 212.3mm(W)*38.3mm(H)* 144mm(D) |
